9,350 in stock
#C22452050
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.58 | ₹75.80 |
| 100+ | ₹6.02 | ₹602.00 |
| 300+ | ₹5.24 | ₹1,572.00 |
| 1,000+ | ₹4.66 | ₹4,660.00 |
| 4,000+ | ₹4.18 | ₹16,720.00 |
| 8,000+ | ₹3.94 | ₹31,520.00 |
10 × ₹7.58
₹75.80
excl. GST
₹89.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel

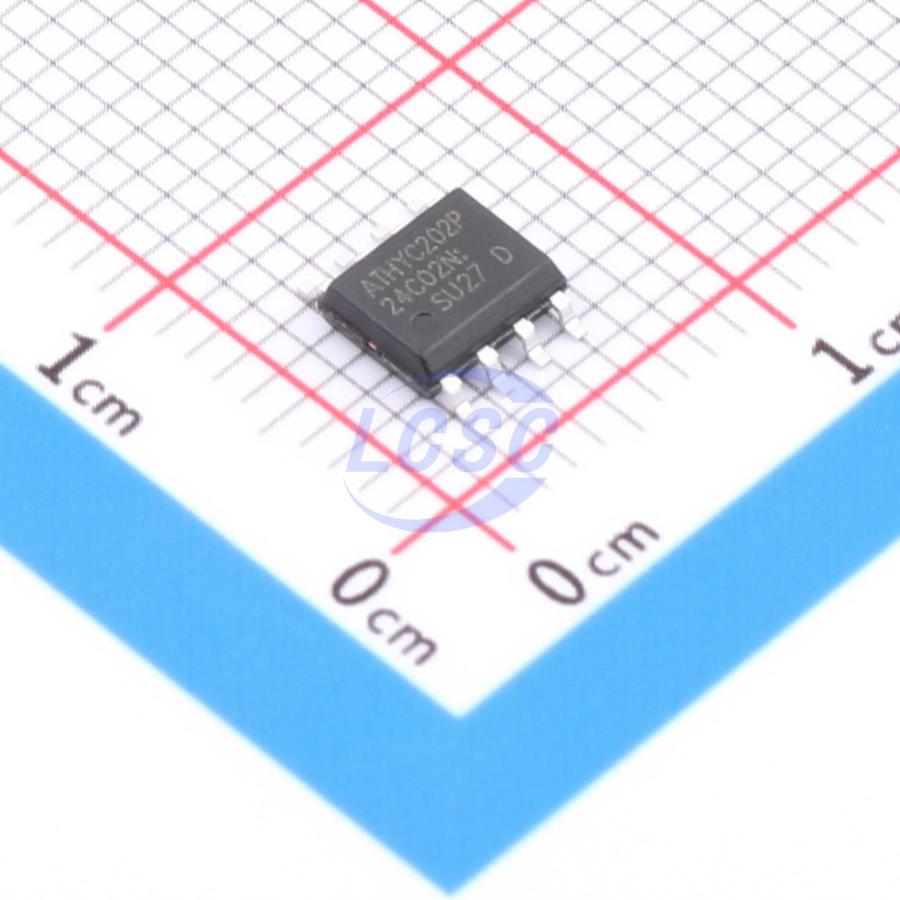

AT24C02D-SSHM-T
₹75.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 1.9ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.143 g
Overview
AT24C02D-SSHM-T provides 256×8-bit serial EEPROM, organized as 8 bits per word. The device is optimized for industrial and commercial applications where low-power and low-voltage operation are critical. Supports page write within 3 ms, allowing partial page writes. Features a write-protect pin for hardware data protection. Schmitt trigger and filtered inputs for noise suppression. High reliability with endurance of 1 million write cycles and data retention of 100 years. Enhanced ESD/latch-up protection, HBM 8000V. 8-pin SOP package.
Key features
- Compatible with all I²C bidirectional data transfer protocols
- Memory array: 2K-bit, 4K-bit, 8K-bit, 16K-bit EEPROM
- Page size: 16 bytes
- Single supply voltage and high speed: 1 MHz
- Random and sequential read modes
- Write: byte write within 3 ms
- 8-pin SOP package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JSM24C02#C2857178JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 3,760 | ₹7.69 · 3,760 in stock | View |
 | AT24C02C-SSHM-T#C22453058JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 43,580 | ₹7.03 · 43,580 in stock | View |
