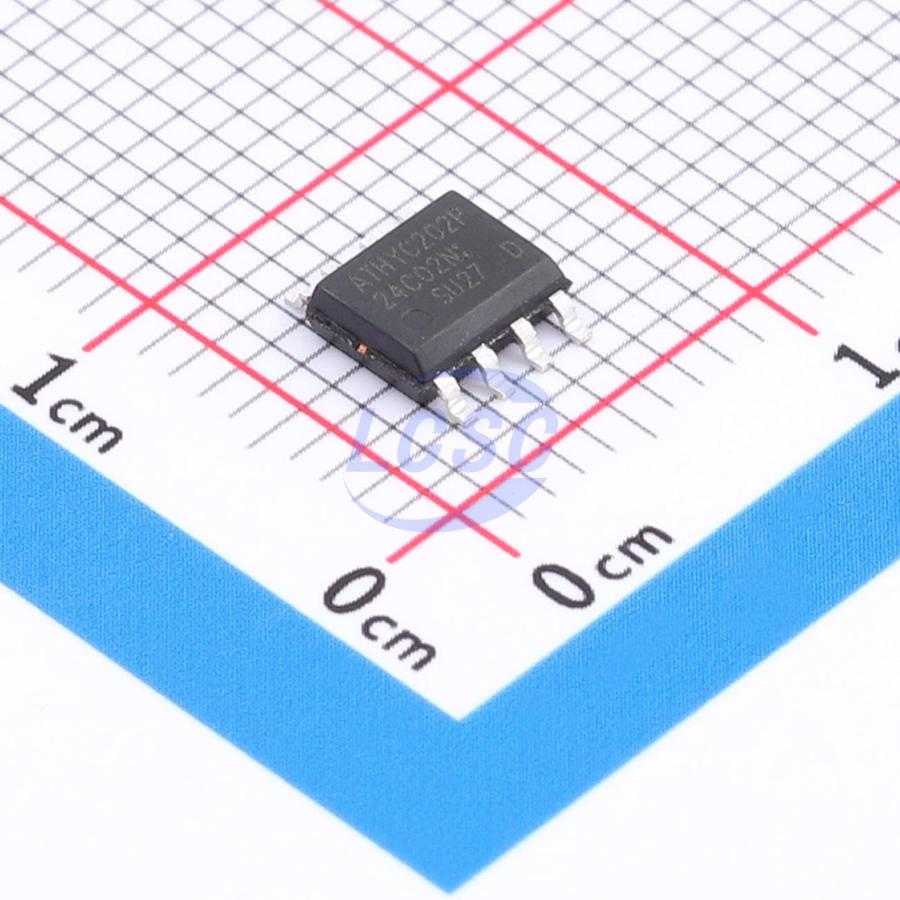

JSMSEMI
JSM24C02
2Kbit 1MHz I2C SOP-8 Memory RoHS
SOP-8ROHS CompliantActive
2K Bits Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,760 in stock
#C2857178
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.69 | ₹76.90 |
| 100+ | ₹6.17 | ₹617.00 |
| 300+ | ₹5.41 | ₹1,623.00 |
| 1,000+ | ₹4.84 | ₹4,840.00 |
| 4,000+ | ₹4.06 | ₹16,240.00 |
| 8,000+ | ₹3.82 | ₹30,560.00 |
10 × ₹7.69
₹76.90
excl. GST
₹90.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JSM24C02
₹76.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.207 g
Overview
The JSM24C02/24C04/24C08/24C16 provides 2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all I2C bidirectional data transfer protocol
- Memory array: - 2K bits (256X 8) / 4K bits (512 X 8) / 8K bits (1024 X 8) / 16K bits (2048 X 8) of EEPROM
- Page size: 16 bytes
- Single supply voltage and high speed: – 1 MHz Random and sequential Read modes
- Write: Byte Write within 3 ms, Page Write within 3 ms, Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability Endurance: 1 Million Write Cycles, Data Retention: 100 Years
- Enhanced ESD/Latch-up protection – HBM 8000V
- 8-lead PDIP/SOP/TSSOP/UDFN and WLCSP4 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C02C-SSHM-T#C22453058JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 43,580 | ₹7.03 · 43,580 in stock | View |
 | AT24C02D-SSHM-T#C22452050JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 9,350 | ₹7.58 · 9,350 in stock | View |
