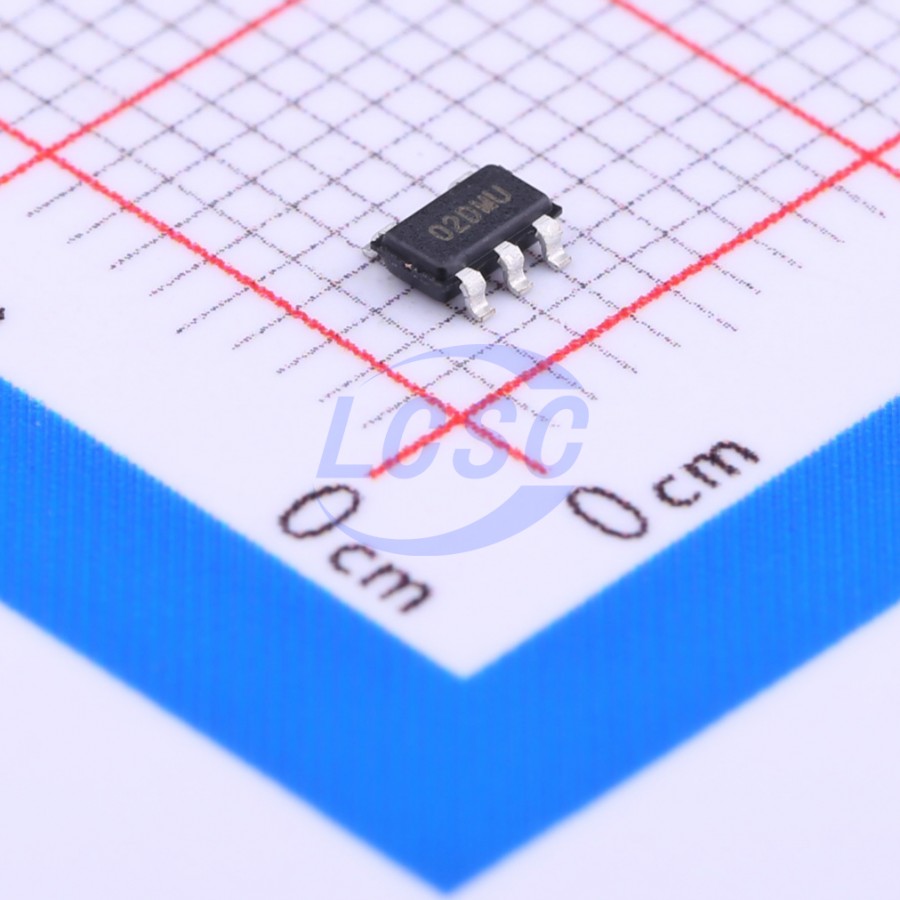

AT24C02D-STUM-T
2Kbit 1MHz I2C SOT-23-5 Memory RoHS
I2C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,897 in stock
#C79996
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.34 | ₹53.34 |
| 10+ | ₹41.85 | ₹418.50 |
| 30+ | ₹37.08 | ₹1,112.40 |
| 100+ | ₹31.01 | ₹3,101.00 |
| 500+ | ₹28.40 | ₹14,200.00 |
| 1,000+ | ₹26.67 | ₹26,670.00 |
1 × ₹53.34
₹53.34
excl. GST
₹62.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C02D-STUM-T
₹53.34 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~3.6V;0.2mA
- Clock Frequency
- 1MHz
- Access Time
- 450ns;900ns;4500ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 0.1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The Atmel AT24C01D/02D provides 1,024/2,048 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 128/256 words of eight bits each. The device’s cascadable feature allows up to eight devices to share a common 2-wire bus. These device are optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. Both devices are available in space-saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP(1), 5-lead SOT23, and 8-ball VFBGA packages. The entire family of packages operates from 1.7V to 3.6V.
Key features
- Low Voltage Operation 1.7V (VCC = 1.7V to 3.6V)
- Internally Organized 128 x 8 (1K) or 256 x 8 (2K)
- I²C-Compatible (2-wire) Serial Interface
- 100kHz Standard Mode, 1.7V to 3.6V
- 400kHz Fast Mode, 1.7V to 3.6V
- 1MHz Fast Mode Plus (FM+), 2.5V to 3.6V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (1mA max) and Standby Current (0.8μA max)
- 8-byte Page Write Mode
- Partial Page Writes Allowed
- Random and Sequential Read Modes
- Self-timed Write Cycle Within 5ms max
- High Reliability Endurance: 1,000,000 Write Cycles
- Data Retention: 100 Years
- Green Package Options (Lead-free/Halide-free/RoHS Compliant)
- 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP(1), 5-lead SOT23, and 8-ball VFBGA
- Die Sale Options: Wafer Form and Tape and Reel
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24CSW020-STUM-T#C5224827MICROCHIP · TSOT-23-5 | MICROCHIP | TSOT-23-5 | 101 | ₹114.08 · 101 in stock | View |
 | P24C02A-STH-MIR#C5263799PUYA · SOT-23-5 | PUYA | SOT-23-5 | 2,725 | ₹11.07 · 2,725 in stock | View |
 | TP24C02S5#C18197836TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,450 | ₹7.29 · 1,450 in stock | View |
 | AT24CS02-STUM-T#C2060969MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 2,765 | ₹121.69 · 2,765 in stock | View |
 | AT24MAC402-STUM-T#C2061068MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 147 | ₹194.48 · 147 in stock | View |
