MICROCHIP

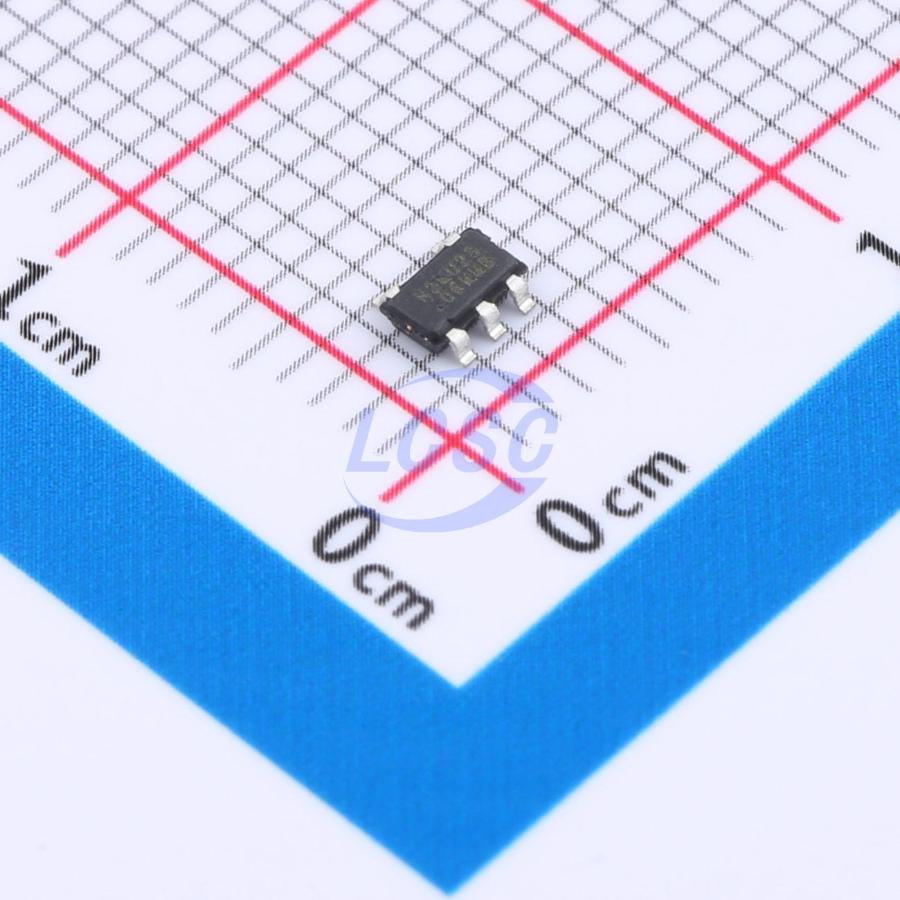

AT24CS02-STUM-T
2Kbit 1MHz I2C SOT-23-5 Memory RoHS
SOT-23-5ROHS CompliantActive
I2C-Compatible Serial EEPROM with Factory-Programmed Serial Number
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,718 in stock
#C2060969
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.69 | ₹121.69 |
| 10+ | ₹97.80 | ₹978.00 |
| 30+ | ₹85.84 | ₹2,575.20 |
| 100+ | ₹74.10 | ₹7,410.00 |
| 500+ | ₹66.93 | ₹33,465.00 |
| 1,000+ | ₹63.24 | ₹63,240.00 |
1 × ₹121.69
₹121.69
excl. GST
₹143.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24CS02-STUM-T
₹121.69 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;450ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
Key features
- Low-Voltage Operation: – VCC = 1.7V to 5.5V
- Internally Organized as 128 x 8 (1K) or 256 x 8 (2K)
- 128-Bit Unique Factory-Programmed Serial Number – Permanent read-only value Unique across entire CS Series of Serial EEPROMs
- Industrial Temperature Range: -40℃ to +85℃
- I²C -Compatible (Two-Wire) Serial Interface: – 100 kHz Standard mode, 1.7V to 5.5V – 400 kHz Fast mode, 1.7V to 5.5V – 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write-Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)
- 8-Byte Page Write Mode: – Partial page writes allowed
- Random and Sequential Read Modes
- Self-Timed Write Cycle within 5 ms
- Maximum ESD Protection > 4,000V
- High Reliability: – Endurance: 1,000,000 write cycles – Data retention: 100 years
- Green Package Options (Lead-free/Halide-free/RoHS compliant)
- Die Sale Options: Wafer Form and Tape and Reel Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24MAC402-STUM-T#C2061068MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 147 | ₹194.48 · 147 in stock | View |
 | AT24C02C-STUM-T#C94534MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 3,729 | ₹60.77 · 3,729 in stock | View |
 | HG24C02M5/TR#C565360HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 3,140 | ₹8.20 · 3,140 in stock | View |
 | 24C02S(XBLW)#C18723540XBLW · SOT23-5 | XBLW | SOT23-5 | 1,68,000 | ₹3.97 · 1,68,000 in stock | View |
 | AT24C02S(TP)#C51939533TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,540 | ₹6.88 · 1,540 in stock | View |
