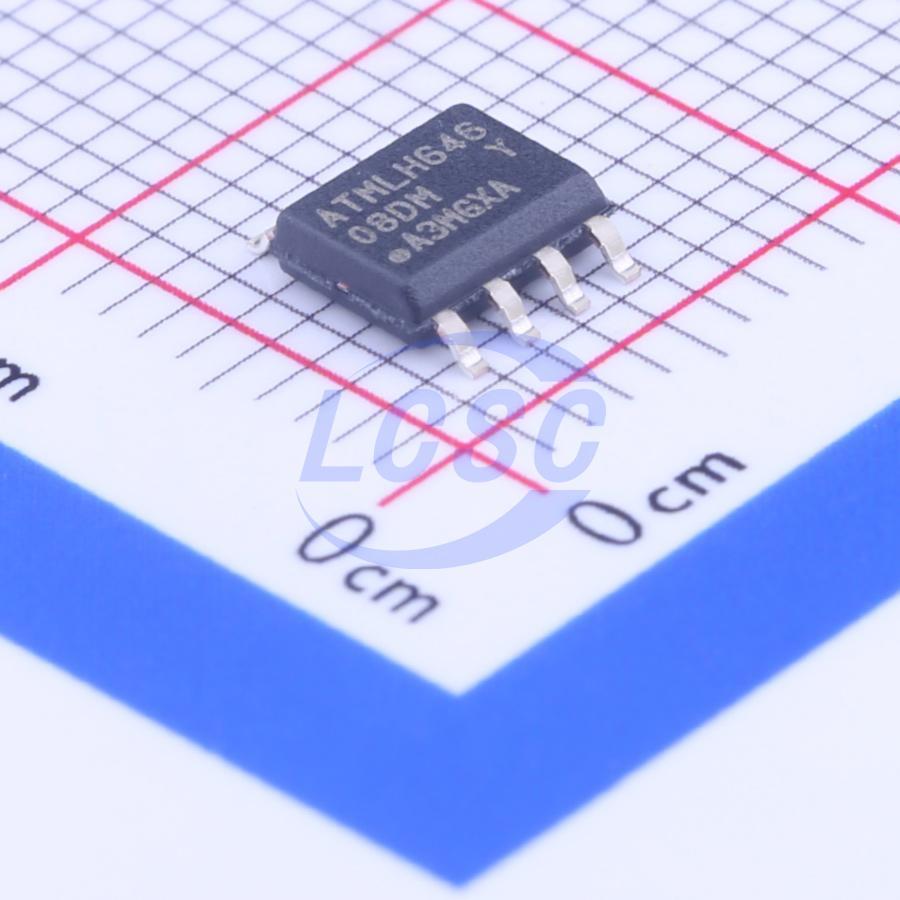

AT24C08D-SSHM-T
8Kbit 1MHz I2C SOIC-8 Memory RoHS
I2C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,965 in stock
#C116669
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.87 | ₹209.35 |
| 50+ | ₹32.82 | ₹1,641.00 |
| 150+ | ₹28.95 | ₹4,342.50 |
| 500+ | ₹24.11 | ₹12,055.00 |
| 2,500+ | ₹21.95 | ₹54,875.00 |
| 4,000+ | ₹20.65 | ₹82,600.00 |
5 × ₹41.87
₹209.35
excl. GST
₹247.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C08D-SSHM-T
₹209.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~3.6V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 4500ns;900ns;450ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 0.8uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
The Atmel AT24C08D provides 8,192 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 1,024 words of 8 bits each. The device’s cascadable feature allows up to two devices to share a common 2-wire bus. This device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The device is available in space-saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP(1), 5-lead SOT23, 8-ball VFBGA, and 4-ball WLCSP packages. The entire family of packages operates from 1.7V to 3.6V.
Applications
- industrial applications
- commercial applications
Key features
- Low Voltage Operation V_CC = 1.7V to 3.6V
- Internally Organized as 1,024 x 8 (8K)
- I²C-compatible (2-wire) Serial Interface
- 100kHz Standard Mode, 1.7V to 3.6V
- 400kHz Fast Mode, 1.7V to 3.6V
- 1MHz Fast Mode Plus (FM+), 2.5V to 3.6V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write Protect pin for Full Array Hardware Data Protection
- Ultra Low Active Current (1mA Max) and Standby Current (0.8μA Max)
- 16-byte Page Write Mode
- Partial Page Writes Allowed
- Random and Sequential Read Modes
- Self-timed Write Cycle Within 5ms Max
- High Reliability Endurance: 1,000,000 Write Cycles
- Data Retention: 100 Years
- Green Package Options (Lead-free/Halide-free/RoHS Compliant)
- 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP(1), 5-lead SOT23, 8-ball VFBGA, and 4-ball WLCSP
- Die Sale Options: Wafer Form and Tape and Reel Available
