ROHMDatasheet (PDF)

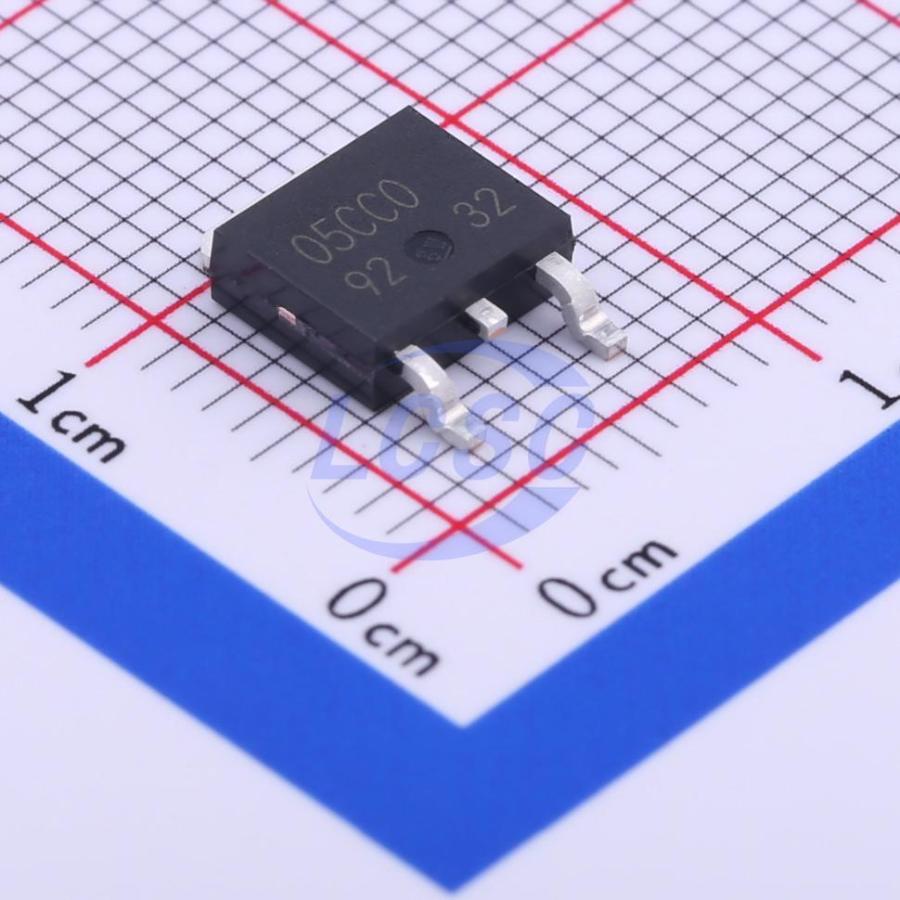

BA05CC0FP-E2
5V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS3 CompliantActive
2A/1A Fixed Output LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BA05CC0FP-E2
- Store part #
- C79954
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,350 in stock
#C79954
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.13 | ₹117.13 |
| 10+ | ₹94.75 | ₹947.50 |
| 30+ | ₹83.45 | ₹2,503.50 |
| 100+ | ₹72.37 | ₹7,237.00 |
| 500+ | ₹57.80 | ₹28,900.00 |
| 1,000+ | ₹54.34 | ₹54,340.00 |
1 × ₹117.13
₹117.13
excl. GST
₹138.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BA05CC0FP-E2
₹117.13 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 25V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Input overvoltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.567 g
Overview
Standard Fixed Output LDO Regulators are low-saturation regulators, available for outputs up to 2A / 1A. It has a wide output voltage range and package lineup with and without shutdown switches. This IC has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits, a thermal shut-down circuit that protects the IC from damage due to overloading and an over-voltage protection circuit that protects the IC from surges generated in the power supply line of the IC.
Applications
- Used in DSP power supplies for DVD and CD players, FPDs, televisions, personal computers or any other consumer device
Key features
- ±1% highly accurate output voltage (BAxxDD0xx)
- Low saturation with PNP output
- Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
- Built-in thermal shutdown circuit for protecting the IC from damage due to overloading
- Built-in over- voltage protection circuit that prevents the destruction of the IC due to power supply surges
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BA05FP-E2#C6509437ROHM · TO-252 | ROHM | TO-252 | 10 | ₹267.43 · 10 in stock | View | |
 | MC7805BDTRKG-GK#C46061589GOODWORK · TO-252 | GOODWORK | TO-252 | 1,210 | ₹15.19 · 1,210 in stock | View |
 | 78R05G-TN3-R#C171518UTC · TO-252-2(DPAK) | UTC | TO-252-2(DPAK) | 1,755 | ₹29.30 · 1,755 in stock | View |
 | BD50FC0FP-E2#C920705ROHM · TO-252 | ROHM | TO-252 | 316 | ₹103.86 · 316 in stock | View |
 | BA17805FP-E2#C600716ROHM · TO-252 | ROHM | TO-252 | 348 | ₹41.20 · 348 in stock | View |
