ROHMDatasheet (PDF)

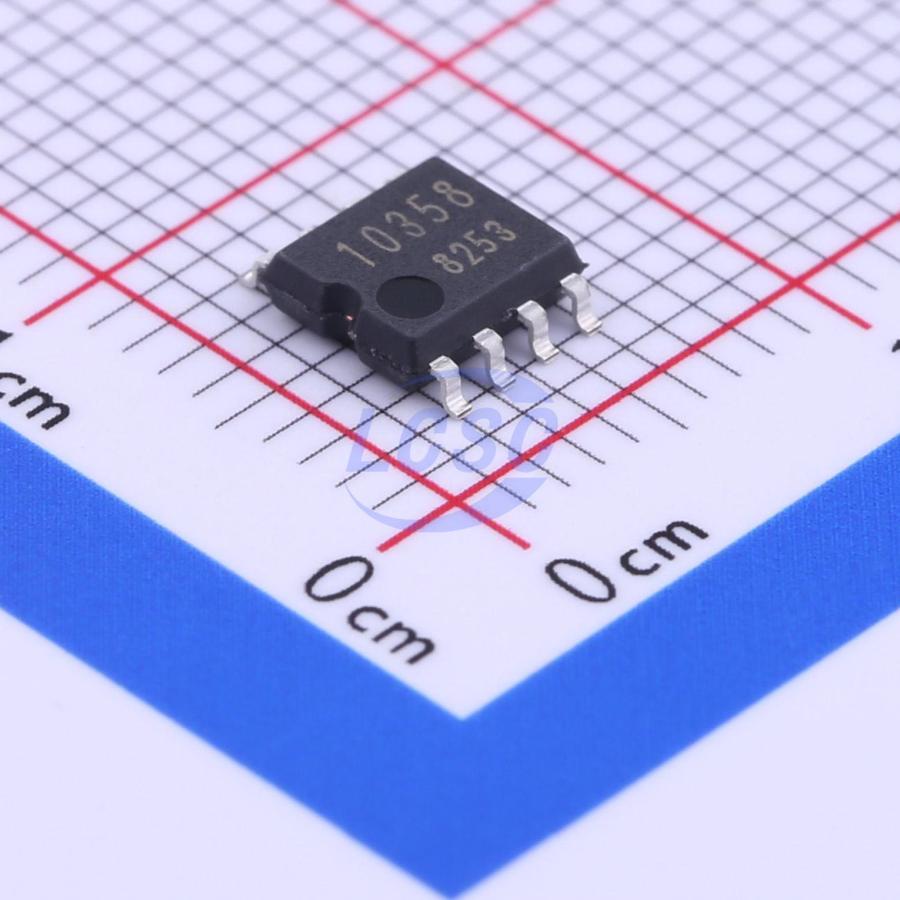

BA10358F-E2
20mA 2 7mV 200V/ms 80dB 250nA 500kHz 500uA SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS3 CompliantActive
General purpose and high reliability Operational Amplifiers
- Manufacturer
- ROHM
- Manufacturer part #
- BA10358F-E2
- Store part #
- C79975
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,545 in stock
#C79975
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.56 | ₹82.80 |
| 50+ | ₹13.23 | ₹661.50 |
| 150+ | ₹11.56 | ₹1,734.00 |
| 500+ | ₹10.31 | ₹5,155.00 |
| 2,500+ | ₹9.30 | ₹23,250.00 |
| 5,000+ | ₹8.81 | ₹44,050.00 |
5 × ₹16.56
₹82.80
excl. GST
₹97.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BA10358F-E2
₹82.80 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 200V/ms
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 250nA
- Gain Bandwidth Product
- 500kHz
- Quiescent Current
- 500uA
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.217 g
Overview
General purpose BA10358 / BA10324A and high reliability BA2904 / BA2902 integrate two or four independent Op-Amps on a single chip and have some features of high-gain, low power consumption, and wide operating voltage range of 3V to 36V (single power supply ). BA2904W have low input offset voltage(2mV max.).
Applications
- Current sense application
- Buffer application amplifier
- Active filter
- Consumer electronics
Key features
- Operable with a single power supply
- Wide operating supply voltage range
- Input and output are operable GND sense
- Low supply current
- High open loop voltage gain
- Wide temperature range
