ROHMDatasheet (PDF)

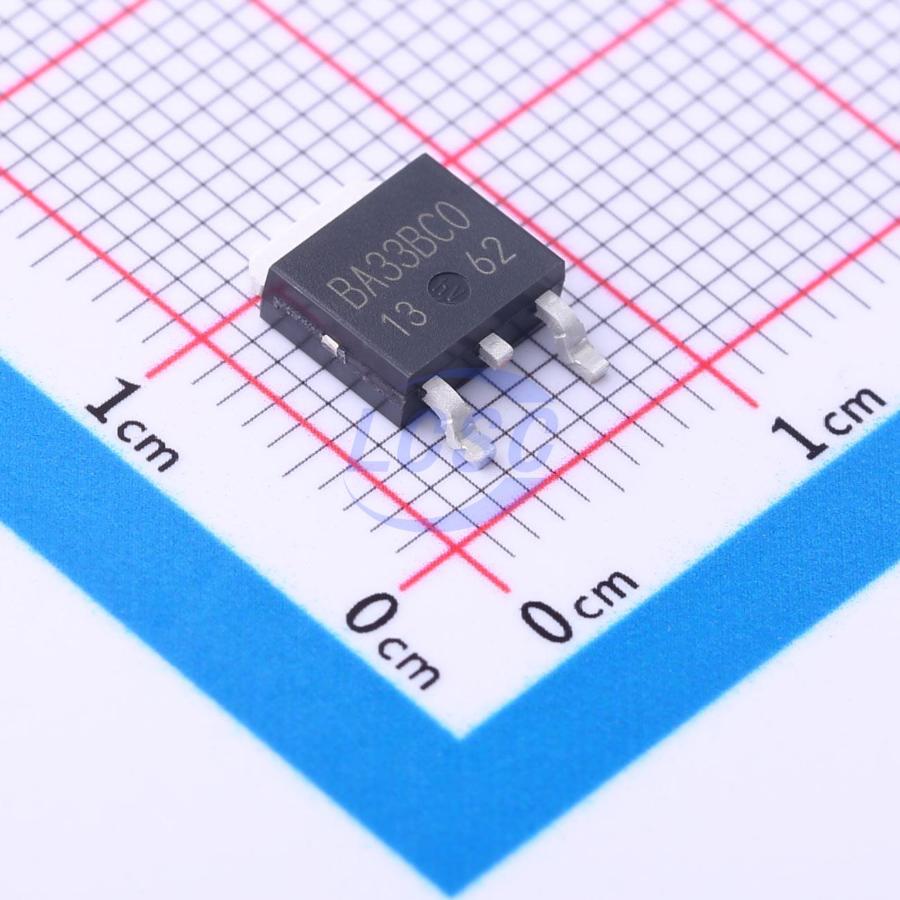

BA33BC0FP-E2
3.3V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS3 CompliantActive
1A Variable/Fixed LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BA33BC0FP-E2
- Store part #
- C2909274
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,778 in stock
#C2909274
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.27 | ₹124.27 |
| 10+ | ₹102.55 | ₹1,025.50 |
| 30+ | ₹91.68 | ₹2,750.40 |
| 100+ | ₹80.82 | ₹8,082.00 |
| 500+ | ₹66.48 | ₹33,240.00 |
| 1,000+ | ₹63.23 | ₹63,230.00 |
1 × ₹124.27
₹124.27
excl. GST
₹146.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BA33BC0FP-E2
₹124.27 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.472 g
Overview
The BAxxBC0 are low-saturation regulators with an output current of 1.0 A and an output voltage accuracy of ±2%. A broad output voltage range is offered, from 1.5V to 10V, and built-in overcurrent protection and thermal shutdown (TSD) circuits prevent damage due to short-circuiting and overloading, respectively.
Applications
- All electronic devices that use microcontrollers and logic circuits
Key features
- Output voltage accuracy: ±2%
- Broad output range available: 1.5 V - 10 V (BAxxBC0 series)
- Low saturation-voltage type with PNP output
- Built-in overcurrent protection circuit
- Built-in thermal shutdown circuit
- Integrated shutdown switch (BAxxBC0WT, BAxxBC0WT-5, or BAxxBC0WFP Series, BA00BC0WCP-V5)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BA033CC0FP-E2#C308579ROHM · TO-252-2 | ROHM | TO-252-2 | 4,626 | ₹125.38 · 4,626 in stock | View |
 | SSP7903P33JR#C5199835Siproin · TO-252 | Siproin | TO-252 | 5,530 | ₹40.03 · 5,530 in stock | View |
 | NCV1117DT33T5G#C20625onsemi · TO-252-2(DPAK) | onsemi | TO-252-2(DPAK) | 25,765 | ₹55.58 · 25,765 in stock | View |
 | HT1117AM-3.3#C5366661HTCSEMI · TO-252 | HTCSEMI | TO-252 | 898 | ₹15.12 · 898 in stock | View |
 | MD7612D33UA2#C2978382Mingda Microelectronics · TO-252-2 | Mingda Microelectronics | TO-252-2 | 1,440 | ₹41.45 · 1,440 in stock | View |
