ROHMDatasheet (PDF)

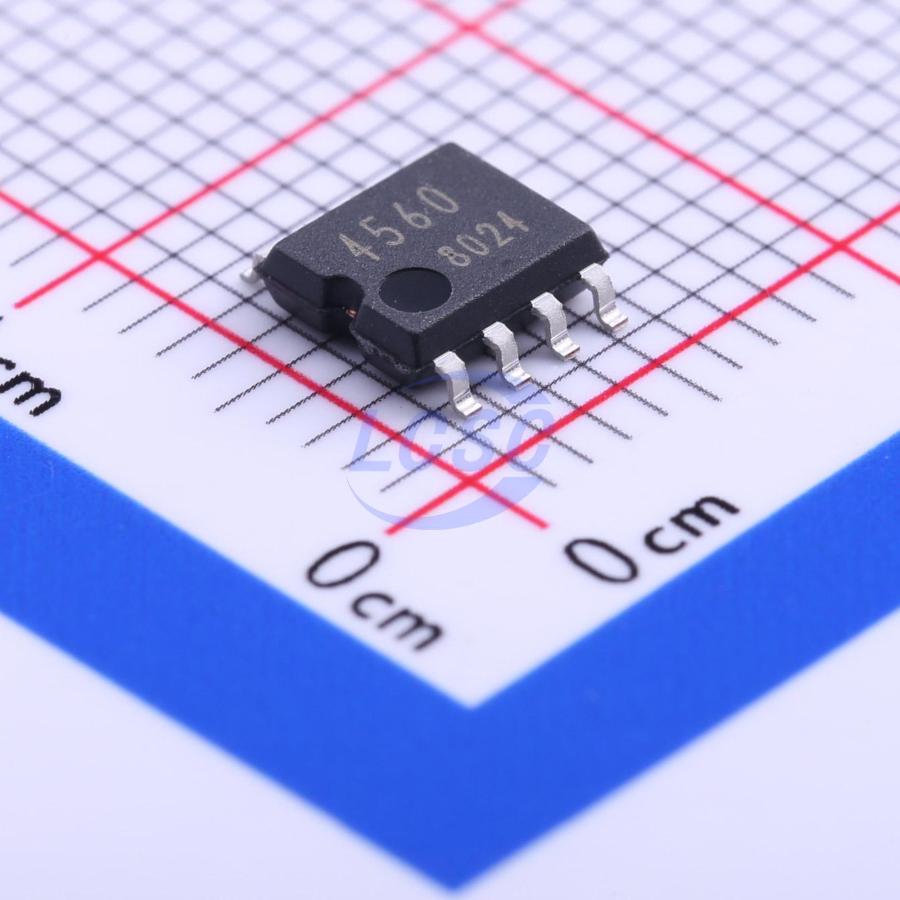

BA4560F-E2
2 500uV 4V/us 90dB 50nA 10MHz 4mA SOIC-8-175mil Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8-175milROHS3 CompliantActive
Low Noise Operational Amplifiers
- Manufacturer
- ROHM
- Manufacturer part #
- BA4560F-E2
- Store part #
- C86854
- Package / case
- SOIC-8-175mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,975 in stock
#C86854
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.36 | ₹91.80 |
| 50+ | ₹14.65 | ₹732.50 |
| 150+ | ₹12.78 | ₹1,917.00 |
| 500+ | ₹11.39 | ₹5,695.00 |
| 2,500+ | ₹10.27 | ₹25,675.00 |
| 5,000+ | ₹9.71 | ₹48,550.00 |
5 × ₹18.36
₹91.80
excl. GST
₹108.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BA4560F-E2
₹91.80 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 4V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 50nA
- Gain Bandwidth Product
- 10MHz
- Quiescent Current
- 4mA
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -15V~-4V;4V~15V
- Single Supply
- 8V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.217 g
Overview
BA4560xxx for normal grade and BA4560Rxxx, BA4564RFV, BA4564WFV for high-reliability grade integrate two or four high voltage gain Op-Amps on a single chip. Especially, this series is suitable for any audio applications due to low noise and low distortion characteristics and they are usable for other many applications of wide operating supply voltage range. BA4560Rxxx, BA4564RFV, BA4564WFV are high-reliability products with extended operating temperature range.
Key features
- High Voltage Gain, Low Noise, Low Distortion
- Wide Operating Supply Voltage Range
- Wide Operating Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT4560BRZ#C5121370HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 600 | ₹23.23 · 600 in stock | View |
 | BA4560RF-E2#C703605ROHM · SOP-8-175mil | ROHM | SOP-8-175mil | 1,445 | ₹17.48 · 1,445 in stock | View |
 | LM4565F-GE2#C2058761ROHM · SOIC-8-175mil | ROHM | SOIC-8-175mil | On request | ₹59.23 · 0 in stock | View |
