Bardeen Micro.Datasheet (PDF)

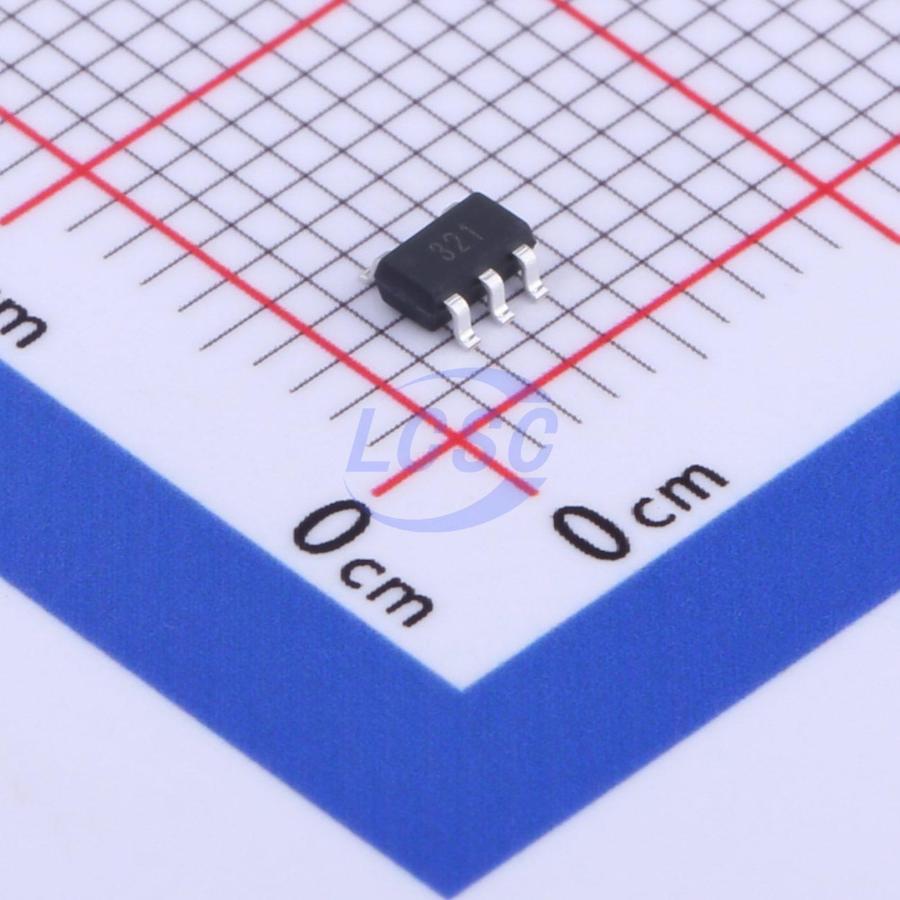

BDM321
84mA 1 3.5mV 600V/ms 1pA 70dB 1MHz 40uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
1MHZ CMOS Rail-to-Rail IO Opamp with RF Filter
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDM321
- Store part #
- C917414
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C917414
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.46 | ₹104.60 |
| 100+ | ₹8.39 | ₹839.00 |
| 300+ | ₹7.36 | ₹2,208.00 |
| 3,000+ | ₹6.01 | ₹18,030.00 |
| 6,000+ | ₹5.40 | ₹32,400.00 |
| 9,000+ | ₹5.08 | ₹45,720.00 |
| 21,000+ | ₹5.01 | ₹1,05,210.00 |
| 39,000+ | ₹4.97 | ₹1,93,830.00 |
10 × ₹10.46
₹104.60
excl. GST
₹123.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BDM321
₹104.60 for 10 + GST
Specifications
- Output Current
- 84mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 40uA
- Features
- EMI filtering/RF suppression
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
The BDM321 have a high gain-bandwidth product of 1MHz, a slew rate of 0.6V/μs, and a quiescent current of 40uA/amplifier at 5V. The BDM321 is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for BDM321. They are specified over the extended industrial temperature range (-40°C to +125°C). The operating range is from 2.1V to 5.5V. The BDM321 single is available in Green SOT-23-5 package.
Applications
- ASIC Input or Output Amplifier
- Audio Output
- Sensor Interface
- Piezoelectric Transducer Amplifier
- Medical Communication
- Medical Instrumentation
- Smoke Detectors
- Portable Systems
Key features
- Single-Supply Operation from +2.1V ~ +5.5V
- Rail-to-Rail Input / Output
- Gain-Bandwidth Product: 1MHz (Typ)
- Low Input Bias Current: 1pA (Typ)
- Low Offset Voltage: 3.5mV (Max)
- Quiescent Current: 40μA per Amplifier (Typ)
- Operating Temperature: -40°C ~ +125°C
- Embedded RF Anti-EMI Filter
- Small Package: BDM321 Available in SOT23-5 Package
