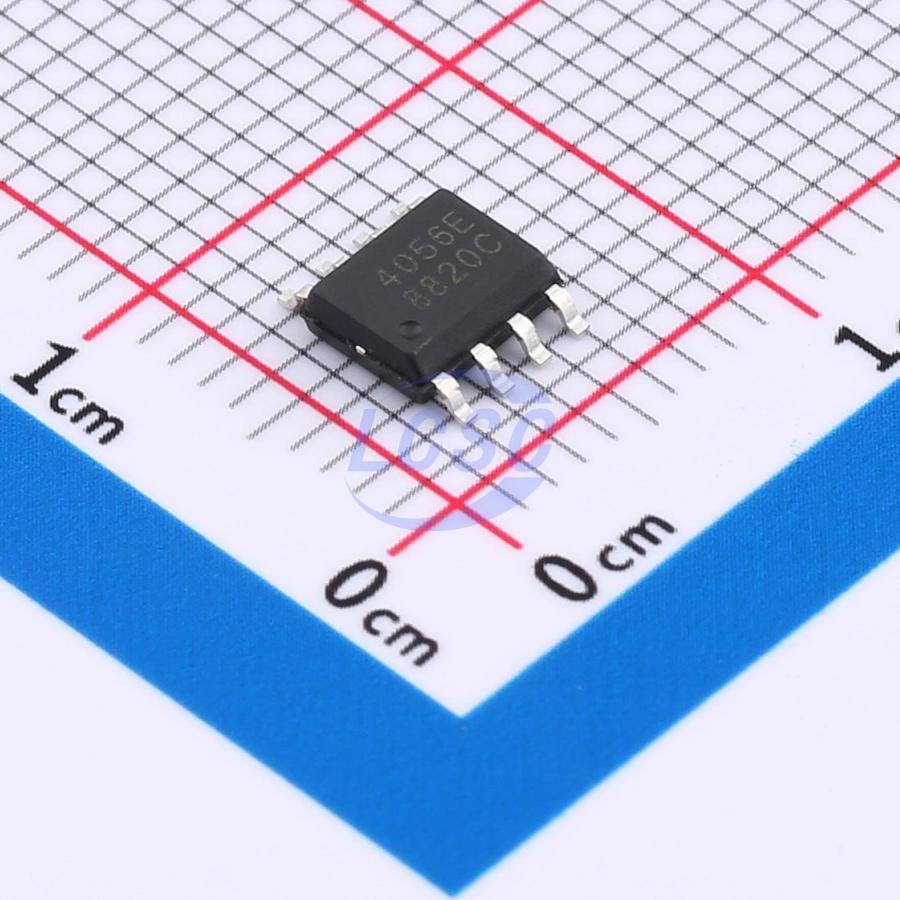

BDP4056
Battery Charging IC Lithium Battery ESOP-8
1A Lithium Battery Charging Management Chip with Battery Reverse Polarity Protection
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDP4056
- Store part #
- C41422157
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,840 in stock
#C41422157
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.49 | ₹54.90 |
| 100+ | ₹4.34 | ₹434.00 |
| 300+ | ₹3.77 | ₹1,131.00 |
| 1,000+ | ₹3.33 | ₹3,330.00 |
| 4,000+ | ₹2.99 | ₹11,960.00 |
| 8,000+ | ₹2.82 | ₹22,560.00 |
10 × ₹5.49
₹54.90
excl. GST
₹64.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BDP4056
₹54.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 1uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1.1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.157 g
Overview
BDP4056 is a single-cell lithium-ion battery CC/CV linear charger IC with reverse battery protection. Housed in an ESOP8 package with minimal external components, it is ideal for portable applications and compatible with both USB and adapter power sources. The internal PMOSFET architecture and anti-backflow circuit eliminate the need for an external isolation diode. A thermal feedback loop automatically adjusts the charge current to limit die temperature under high-power or high-temperature conditions. When the input voltage is removed, the device automatically enters a low-current state with a typical battery leakage current of less than 1uA. Additional features include battery temperature sensing, UVLO, automatic recharge, and two LED pins for charge status and end-of-charge indication.
Applications
- Portable devices such as small speakers
- Bluetooth headsets
- GPS
- Power banks
- Digital cameras
Key features
- Battery reverse polarity protection
- Maximum charge current up to 1A
- Pre-charge 4.2V charge voltage
- BAT ultra-low quiescent current less than 1uA
- Intelligent temperature regulation
- Intelligent recharge function
- C/10 charge termination
- 2.8V trickle charge threshold
- Charge and end-of-charge indicator control signals
- ESOP8 package
