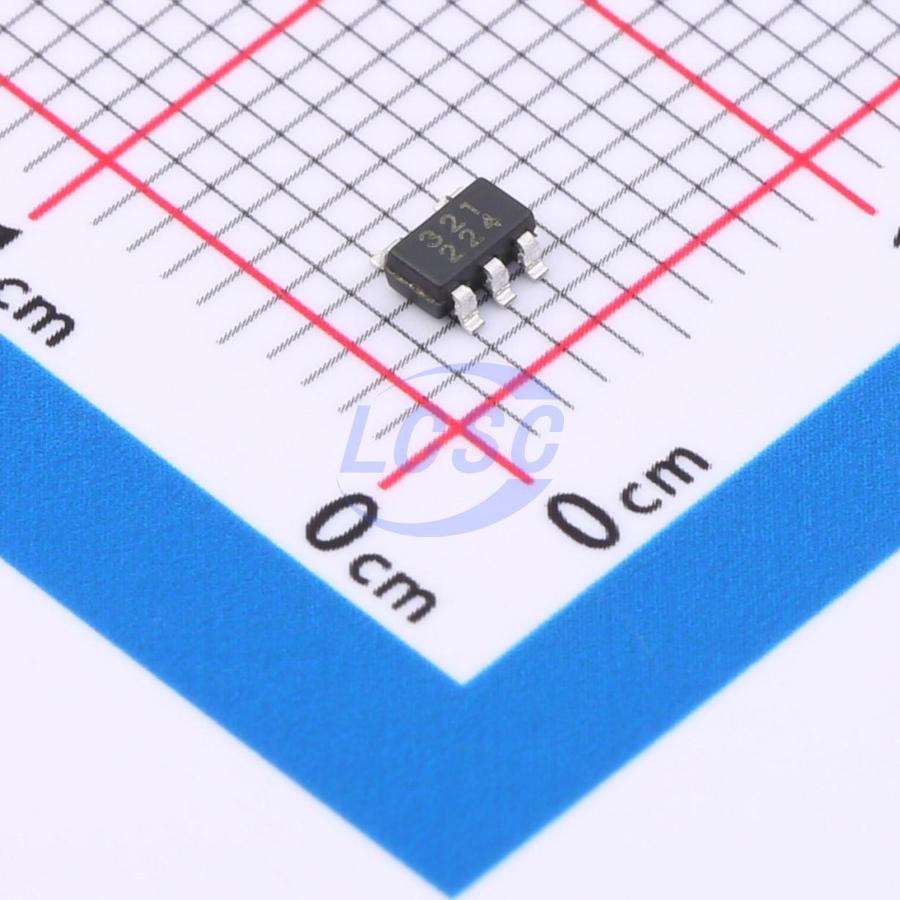

BL321

50mA 1 5mV 400V/ms 150nA 90dB 330uA 1MHz SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Low Power Single Op Amp

Manufacturer: BL
Manufacturer part #: BL321
Store part #: C2924841
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,330 in stock

#C2924841

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
10+	₹8.35	₹83.50
100+	₹6.64	₹664.00
300+	₹5.78	₹1,734.00
3,000+	₹5.15	₹15,450.00
6,000+	₹4.63	₹27,780.00
9,000+	₹4.37	₹39,330.00

Quantity (min 10, multiples of 10)

10 × ₹8.35

₹83.50

excl. GST

₹98.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BL321

₹83.50 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 50mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 3nA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 150nA
Common Mode Rejection Ratio(CMRR): 90dB
Quiescent Current: 330uA
Gain Bandwidth Product: 1MHz
Single Supply: 3V~25V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.047 g

Overview

The BL321 brings performance and economy to low power systems. With a high unity gain frequency and a guaranteed 0.4V/μs slew rate, the quiescent current is only 430μA/ amplifier (5V). The input common mode range includes ground and therefore the device is able to operate in single supply applications as well as in dual supply applications. It is also capable of comfortably driving large capacitive loads. The BL321 is available in the SOT-23-5L package. Overall the BL321 is a low power, wide supply range performance op amp that can be designed into a wide range of applications at an economical price without sacrificing valuable board space.
