BLDatasheet (PDF)

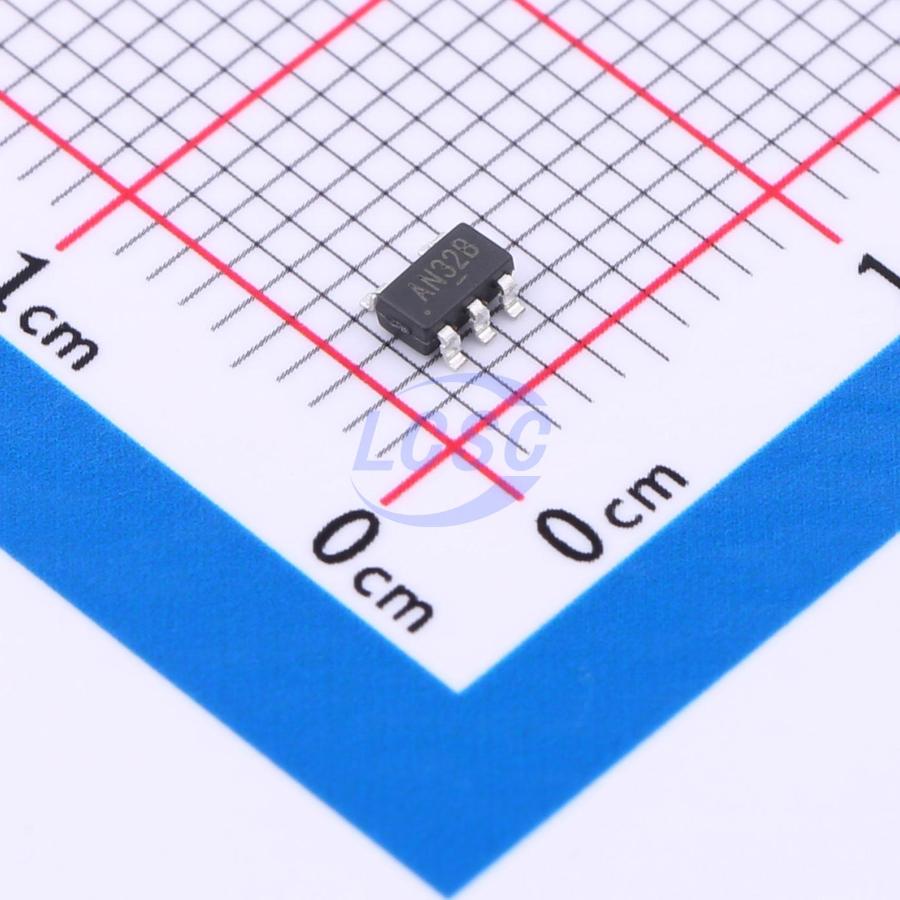

BL8077CB5TR33
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low-power regulator
- Manufacturer
- BL
- Manufacturer part #
- BL8077CB5TR33
- Store part #
- C2902685
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,185 in stock
#C2902685
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.67 | ₹63.35 |
| 50+ | ₹9.98 | ₹499.00 |
| 150+ | ₹8.63 | ₹1,294.50 |
| 500+ | ₹7.62 | ₹3,810.00 |
| 3,000+ | ₹6.81 | ₹20,430.00 |
| 6,000+ | ₹6.40 | ₹38,400.00 |
5 × ₹12.67
₹63.35
excl. GST
₹74.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8077CB5TR33
₹63.35 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 5.5V
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Short Circuit Protection;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The BL8077 is a group of positive voltage output, low power consumption, low dropout voltage regulator. The very low power consumption of BL8077 (0.8uA, Typ) can greatly improve natural life of batteries. The BL8077 includes high accuracy voltage reference, error amplifier and output driver module with discharge capability. And it also provides foldback short-circuit protection, thermal protection and output current limit function. The BL8077 can provide output value of fixed version as 1.2V, 1.8V, 2.5V, 2.8V, 3V, and 3.3V. It also can be customized on command. BL8077 is available in SOT23-5 and DFN1x1-4 which are lead free.
Applications
- Mobile phones
- Battery powered equipment
- Cordless phones, wireless communication equipment
- Cameras, video recorders
- Portable AV equipment
- PDAs
Key features
- Maximum output current: 300mA
- Low power consumption: 0.8uA (Typ.)
- Stand-by current: less than 0.1uA
- Operating input voltage: 1.8V~5.5V
- Low dropout voltage: 150mV @100mA @Vout = 3.3V (Typ.)
- Low temperature coefficient: ±100ppm/°C
- Build-in chip enable and discharge circuit
- Built-in output current limit circuit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL9162-330BARN#C2836597BL · SOT-23-5 | BL | SOT-23-5 | 2,670 | ₹11.30 · 2,670 in stock | View |
 | BL8563-33PRA#C126155BL · SOT-23-5 | BL | SOT-23-5 | 2,020 | ₹13.92 · 2,020 in stock | View |
 | BL9161G-33BARN#C2902574BL · SOT-23-5 | BL | SOT-23-5 | 40,860 | ₹5.53 · 40,860 in stock | View |
 | BL9165-330BARN#C2932546BL · SOT-23-5 | BL | SOT-23-5 | 2,605 | ₹10.82 · 2,605 in stock | View |
 | BL8568GCB5ATR33#C5118079BL · SOT-23-5 | BL | SOT-23-5 | 4,650 | ₹8.88 · 4,650 in stock | View |
