JingYangDatasheet (PDF)

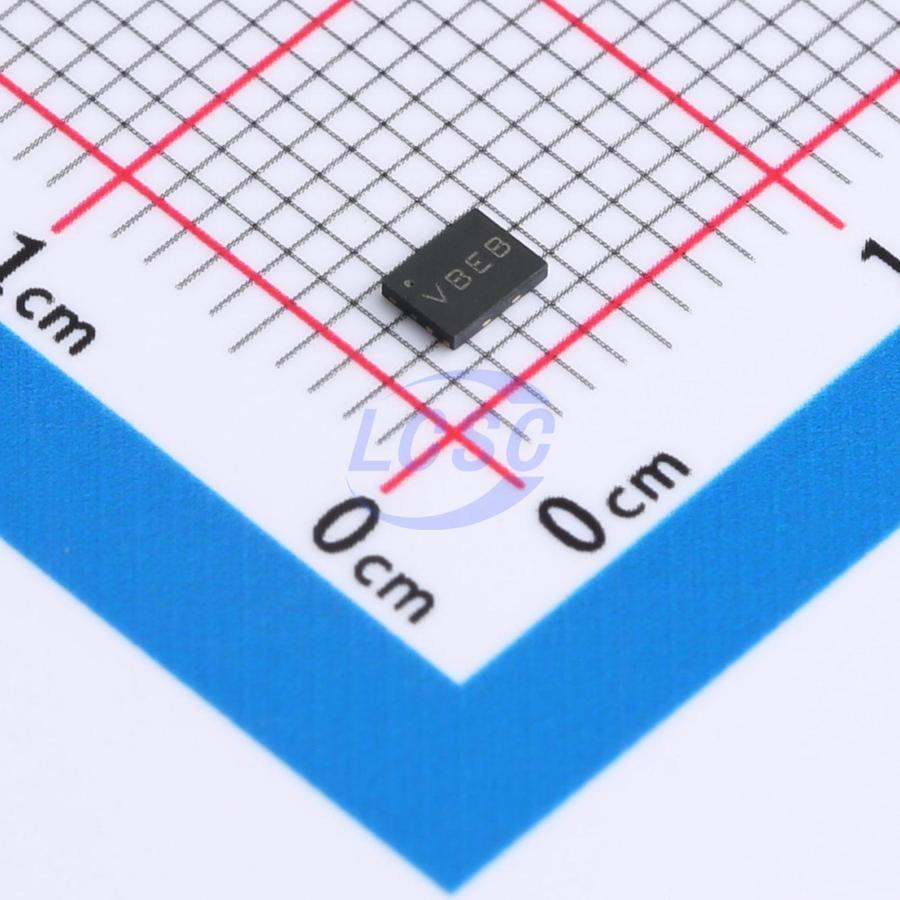

BP8261HX
Lithium Battery DFN2.2x2.9-6L Battery Management RoHS
DFN2.2x2.9-6LROHS CompliantActive
One-Cell Li Battery Protectors
- Manufacturer
- JingYang
- Manufacturer part #
- BP8261HX
- Store part #
- C7434409
- Package / case
- DFN2.2x2.9-6L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,901 in stock
#C7434409
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.05 | ₹52.05 |
| 10+ | ₹46.19 | ₹461.90 |
| 30+ | ₹43.16 | ₹1,294.80 |
| 100+ | ₹40.34 | ₹4,034.00 |
| 500+ | ₹38.61 | ₹19,305.00 |
| 1,000+ | ₹37.73 | ₹37,730.00 |
1 × ₹52.05
₹52.05
excl. GST
₹61.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BP8261HX
₹52.05 for 1 + GST
Specifications
- Operating Temperature
- -30℃~+80℃
- Quiescent Current
- 500nA
- 0V Battery Charge
- Support
- Operating Voltage
- 1.6V~7V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.051 g
Overview
The BP8261HX is protector for lithium-ion and lithium polymer rechargeable battery with high accuracy voltage detection. It can be used for protecting single cell packs from overcharge, overdischarge, over current and short circuit. The IC has suitable protection delay functions and low power consumption property.
Applications
- Protection for lithium-ion and lithium-polymer rechargeable batteries
- Prevents overcharge, overdischarge, overcurrent, and short circuit in single-cell battery packs
Key features
- Low current consumption:
- Standard operating current Typ. 3.0μA (VDD = 3.500V, Ta = 25℃)
- With auto-wakeup Typ. 0.5μA (VDD = 1.8V, Ta = 25℃)
- Auto-wakeup function supported
- 0V charging function supported
- Small package DFN2.2×2.9-6LT
- FET general characteristics: VDS = 20V, RDS(ON) < 40mΩ (VGS = 3.7V)
- ESD rating: 2000V HBM
