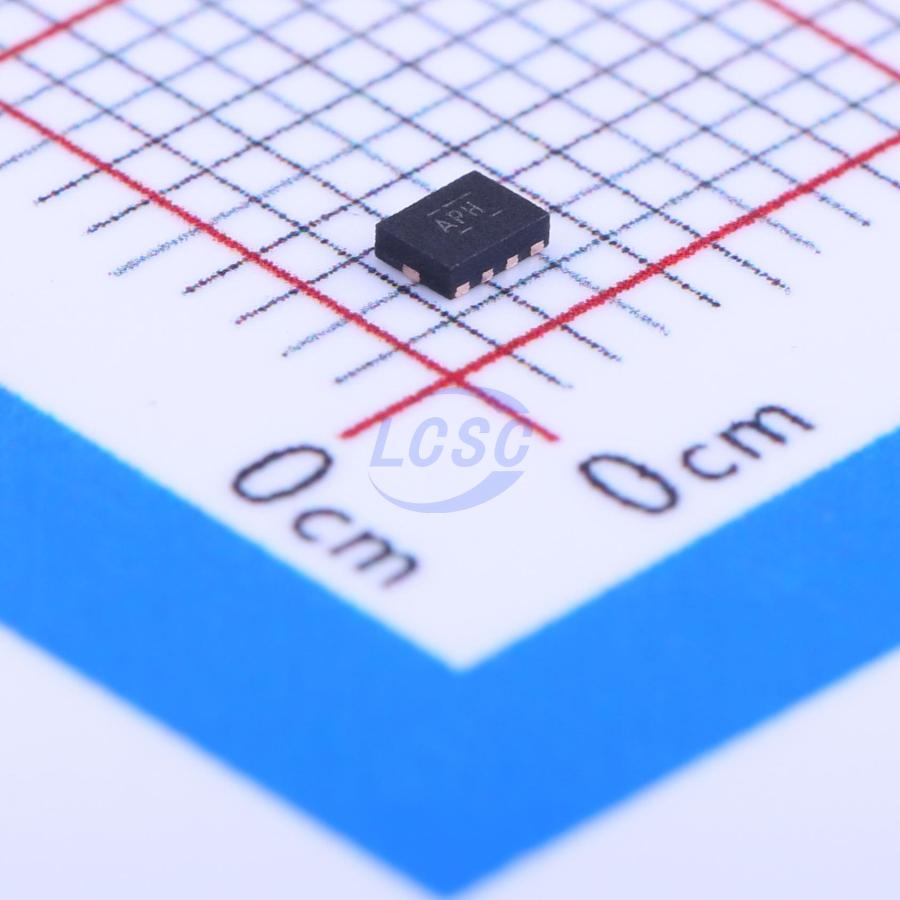

BQ24392RSER
UQFN-10-EP(1.5x2) Battery Management RoHS
Dual SPST USB 2.0 High Speed Switch with USB Battery Charging Detection
- Manufacturer
- TI
- Manufacturer part #
- BQ24392RSER
- Store part #
- C128408
- Package / case
- UQFN-10-EP(1.5x2)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,631 in stock
#C128408
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.72 | ₹55.72 |
| 10+ | ₹49.45 | ₹494.50 |
| 30+ | ₹46.44 | ₹1,393.20 |
| 100+ | ₹43.20 | ₹4,320.00 |
| 500+ | ₹38.45 | ₹19,225.00 |
| 1,000+ | ₹37.59 | ₹37,590.00 |
1 × ₹55.72
₹55.72
excl. GST
₹65.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BQ24392RSER
₹55.72 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 250uA
- Operating Voltage
- 4.75V~5.25V
- The Chip Type
- Charging IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.029 g
Overview
The BQ24392 is a dual single-pole single-throw (SPST) USB 2.0 high-speed isolation switch with charger detection capabilities for use with micro and mini-USB ports. This USB switch allows mobile phones, tablets, and other battery operated electronics to be charged from different adapters with minimal system software. The device’s charger detection circuitry can support USB Battery Charging Specification version 1.2 (BCv1.2) compliant, Apple, TomTom, and other non-standard chargers. The BQ24392 device is powered through VBUS when a charger is attached to the micro or mini-USB port and has a 28-V tolerance to avoid the need for external protection.
Applications
- Mobile Phones
- Smart Phones
- Cameras
- GPS Systems
Key features
- USB 2.0 High Speed Switch Detects USB Battery Charging Specification Version 1.2 (BCv1.2) Compliant Chargers
- Dedicated Charging Port Standard Downstream Port Charging Downstream Port
- Non-Standard Chargers
- Apple Charger
- TomTom Charger
- USB Chargers Not Compliant With Battery Charging Specification Version 1.2 (BCv1.2)
- -2 V to 28 V VBUS Voltage Range
- ESD Performance Tested per JESD 22 4000-V Human-Body Model 1500-V Charged-Device Model (C101) ESD Performance DP_CON/DM_CON to GND – ±8-kV Contact Discharge (IEC 61000-4-2)
