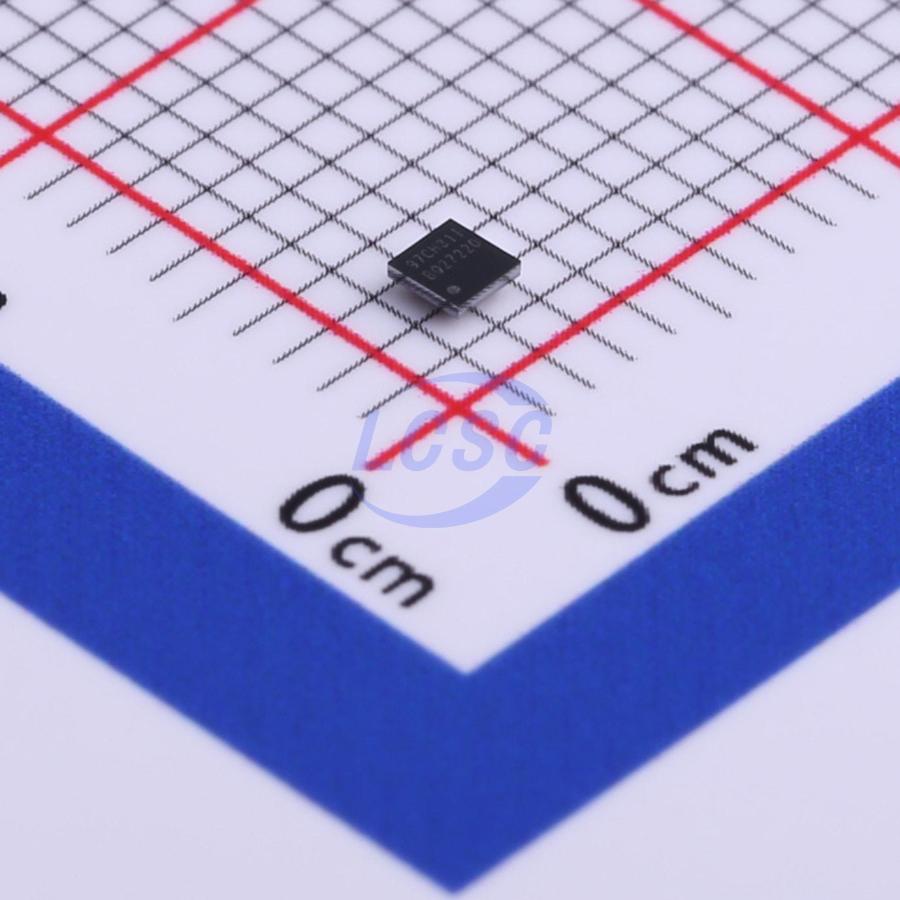

BQ27220YZFR
I2C Lithium Battery DSBGA-9 Battery Management RoHS
Single-Cell CEDV Fuel Gauge
- Manufacturer
- TI
- Manufacturer part #
- BQ27220YZFR
- Store part #
- C528617
- Package / case
- DSBGA-9
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,945 in stock
#C528617
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.36 | ₹92.36 |
| 10+ | ₹74.97 | ₹749.70 |
| 30+ | ₹66.07 | ₹1,982.10 |
| 100+ | ₹57.38 | ₹5,738.00 |
| 500+ | ₹47.16 | ₹23,580.00 |
| 1,000+ | ₹44.33 | ₹44,330.00 |
1 × ₹92.36
₹92.36
excl. GST
₹108.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BQ27220YZFR
₹92.36 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- I2C
- Quiescent Current
- 50uA
- Operating Voltage
- 2.45V~4.5V
- Type of Battery
- Lithium Battery
- Features
- Under-voltage lockout
- The Chip Type
- Monitoring IC
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
A single-cell gauge that requires minimal user configuration and system microcontroller firmware development, leading to quick system bring-up. The bq27220 device uses the Compensated End-of-Discharge Voltage (CEDV) algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), runtime-to-empty (min), battery voltage (mV), temperature (°C), and state-of-health (%). The bq27220 battery fuel gauge has ultra-low power consumption in NORMAL (50 μA) and SLEEP (9 μA) modes, leading to longer battery runtime. Configurable interrupts help save system power and free up the host from continuous polling. Accurate temperature sensing is supported via an external thermistor. Customers can use preloaded CEDV parameters in ROM or can generate custom chemistry parameters using TI's web-based tool, GAUGEPARCAL. Custom-generated parameters can be either programmed in the device RAM by the host on power up of the system or customers can program the parameters to an onboard One-Time Programmable (OTP) memory. Battery fuel gauging with the bq27220 device requires connections only to PACK+ (P+) and PACK– (P-) for a removable battery pack or embedded battery circuit. The tiny, 9-ball, 1.62 mm×1.58 mm, 0.5 mm pitch NanoFree chip scale package (DSBGA) is ideal for space-constrained applications.
Applications
- Smartphones and Feature Phones
- Tablets
- Wearables
- Building Automation
- Portable Medical/Industrial Handsets
- Portable Audio Gaming
Key features
- Single-Cell Li-Ion Battery Fuel Gauge
- Resides in Pack or on System Board
- Supports Embedded or Removable Batteries
- Powers Directly from Battery with Integrated LDO
- Supports a Low-Value (10-mΩ) External Sense Resistor
- Ultra-Low Power Consumption in NORMAL (50 μA) and SLEEP (9 μA) Modes
- Battery Fuel Gauging Based on Compensated End-of-Discharge Voltage (CEDV) Technology
- Reports Remaining Capacity and State-of-Charge (SOC) with Smoothing Filter
- Adjusts Automatically for Battery Aging, Self-Discharge, Temperature, and Rate Changes
- Provides Battery State-of-Health (Aging) Estimation
- Microcontroller Peripheral Supports: 400-kHz I2C Serial Interface
- Configurable SOC Interrupt OR Battery Low Digital Output Warning
- Internal Temperature Sensor OR Host-Reported Temperature OR External Thermistor
