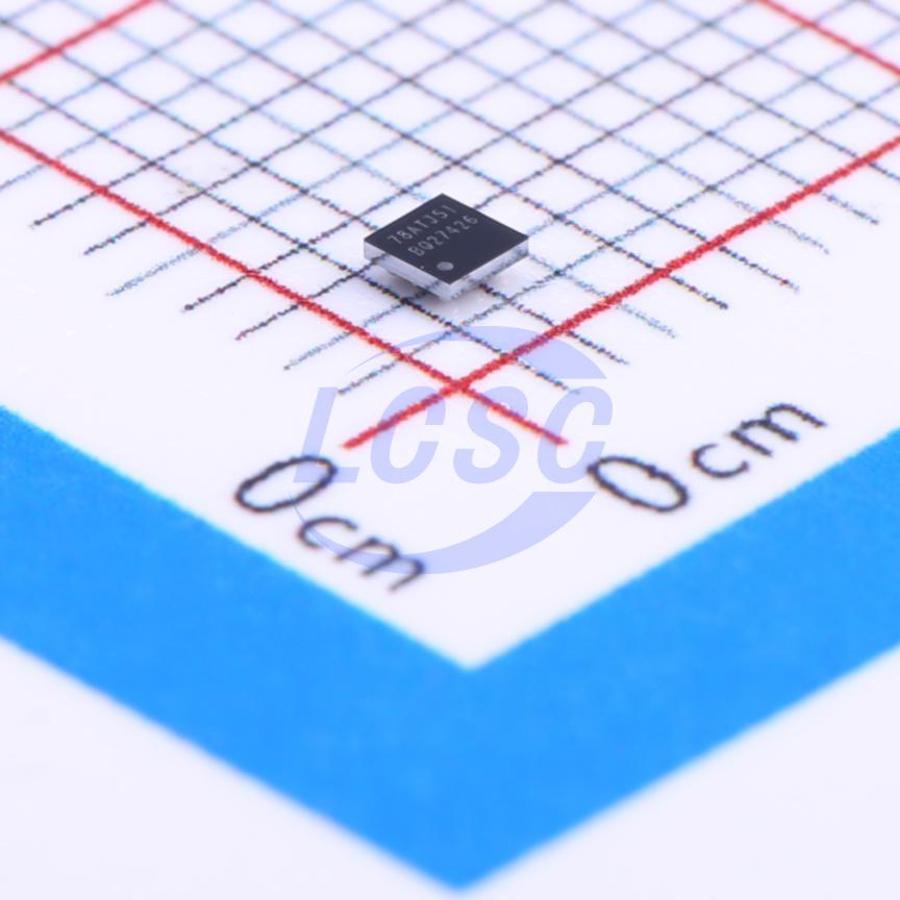

BQ27426YZFR
I2C Lithium Battery DSBGA-9 Battery Management RoHS
System-Side Impedance Track Fuel Gauge
- Manufacturer
- TI
- Manufacturer part #
- BQ27426YZFR
- Store part #
- C165137
- Package / case
- DSBGA-9
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,349 in stock
#C165137
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.43 | ₹134.43 |
| 10+ | ₹110.98 | ₹1,109.80 |
| 30+ | ₹98.16 | ₹2,944.80 |
| 100+ | ₹83.56 | ₹8,356.00 |
| 500+ | ₹77.05 | ₹38,525.00 |
| 1,000+ | ₹74.17 | ₹74,170.00 |
1 × ₹134.43
₹134.43
excl. GST
₹158.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BQ27426YZFR
₹134.43 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- I2C
- Quiescent Current
- 50uA
- Operating Voltage
- 2.45V~4.5V
- Type of Battery
- Lithium Battery
- Features
- Under-voltage lockout
- The Chip Type
- Monitoring IC
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
The bq27426 battery fuel gauge is a single-cell gauge that requires minimal user-configuration and system microcontroller firmware development, leading to quick system bring-up. Three chemistry profiles are pre-programmed to enable minimum user-configuration, and to help manage customer inventory across projects with different battery chemistries. The bq27426 battery fuel gauge has very low sleep power consumption leading to longer battery run time. Configurable interrupts help save system power and free up the host from continuous polling. Accurate temperature sensing is supported via an external thermistor. The bq27426 battery fuel gauge uses the patented Impedance Track™ algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), and battery voltage (mV). Battery fuel gauging with the bq27426 fuel gauge requires connections only to PACK+ (P+) and PACK– (P-) for a removable battery pack or embedded battery circuit. The tiny, 9-ball, 1.62 mm x 1.58 mm, 0.5 mm pitch NanoFree™ chip scale package (DSBGA) is ideal for space-constrained applications.
Applications
- Smartphones, Feature Phones, and Tablets
- Wearables
- Building Automation
- Portable Medical/Industrial Handsets
- Portable Audio Gaming
Key features
- Single-Cell Li-Ion Battery Fuel Gauge
- Resides on System Board
- Supports Embedded or Removable Batteries
- Powers Directly from the Battery with Integrated LDO
- Supports a Low-Value External Sense Resistor (10 mΩ)
- Ultra Low Power Consumption in NORMAL (50 μA) and SLEEP (9 μA) Modes
- Battery Fuel Gauging Based on Patented Impedance Track™ Technology
- Provides Three Selectable Pre-Programmed Profiles for 4.2-V, 4.35-V, and 4.4-V Cells
- Reports Remaining Capacity and State-of-Charge (SOC) with Smoothing Filter
- Adjusts Automatically for Battery Aging, Self-Discharge, Temperature, and Rate Changes
- Estimates Battery State-of-Health (Aging)
- Microcontroller Peripheral Interface Supports:
- 400-kHz I²C™ Serial Interface
- Configurable SOC Interrupt or Battery Low Digital Output Warning
- Internal Temperature Sensor OR Host Reported Temperature OR External Thermistor
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BQ27426YZFT#C2864883TI · DSBGA-9 | TI | DSBGA-9 | 134 | ₹120.07 · 134 in stock | View |
