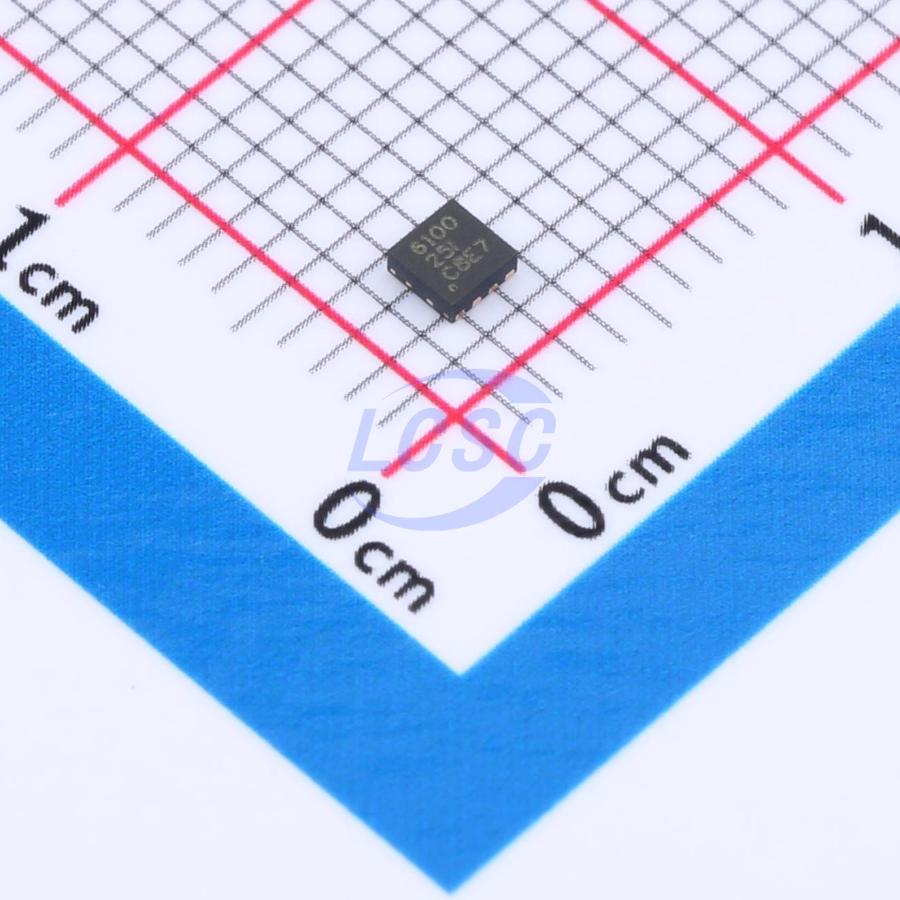

BQ296100DSGR
Lithium Battery WSON-8-EP(2x2) Battery Management RoHS
Overvoltage protector suitable for 2 - 4 series-connected lithium-ion batteries with regulated output power supply
- Manufacturer
- TI
- Manufacturer part #
- BQ296100DSGR
- Store part #
- C2876166
- Package / case
- WSON-8-EP(2x2)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,842 in stock
#C2876166
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.76 | ₹88.76 |
| 10+ | ₹72.57 | ₹725.70 |
| 30+ | ₹65.44 | ₹1,963.20 |
| 100+ | ₹56.80 | ₹5,680.00 |
| 500+ | ₹52.92 | ₹26,460.00 |
| 1,000+ | ₹50.75 | ₹50,750.00 |
1 × ₹88.76
₹88.76
excl. GST
₹104.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BQ296100DSGR
₹88.76 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+110℃
- Quiescent Current
- 4uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 3V~20V
- Features
- Overcharge protection;Overcurrent Protection;Under-voltage lockout
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
The BQ296xxx series is a high-precision, low-power overvoltage protector with a regulated output power supply of 2 mA suitable for lithium-ion battery pack applications. This device can individually monitor the overvoltage condition of each cell in a 2 - 4 cell series battery pack. When an overvoltage condition is detected on any cell, an internal fixed-delay timer is activated. After the delay timer expires, the output pin is triggered to an active state to indicate an overvoltage condition. The regulated output power supply can provide a maximum output current of 2 mA (max) to drive always-on circuits, such as a real-time clock (RTC) oscillator. The BQ296xxx series has a self-disable function that can turn off the regulated output when the voltage of any cell is below a specific threshold, thereby preventing battery depletion. The device can also enable or disable the regulated output through external control.
Applications
- Laptop
- Ultrabook
- Medical
- UPS Backup Battery
Key features
- 2-cell, 3-cell, and 4-cell series battery OVP
- Fixed delay timer for FET drive output triggering (4 options: 3s, 4s, 5.5s, or 6.5s)
- Factory-preset OVP thresholds (threshold voltage range: 3.85V to 4.6V)
- Output option: active high
- High-accuracy OVP: ±10mV
- Regulated power output with self-disable and/or external enable/disable control
- Options: 3.3V, 2.5V, and 1.8V (BQ2961)
- Options: 3.3V, 3.15V, 3.0V (BQ2962)
- Low-power ICC ~4μA (VCELL(ALL) < VPROTECT)
- Ultra-low power consumption with regulated output disabled, ICC ~1.2μA
- Low leakage current per cell input < 100nA
- Small package footprint
- 8-pin WSON (2mm×2mm)
