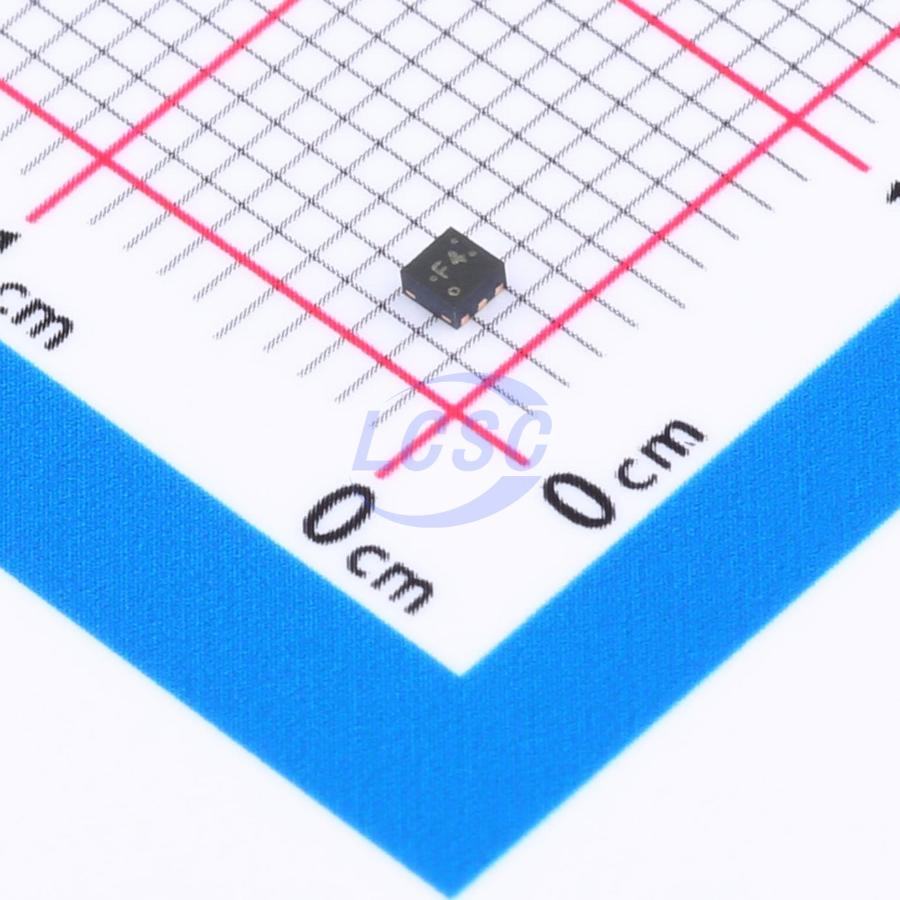

BQ29706DSER
Lithium Battery WSON-6(1.5x1.5) Battery Management RoHS
Voltage and current protection integrated circuits (for single-cell lithium-ion/lithium-polymer batteries)
- Manufacturer
- TI
- Manufacturer part #
- BQ29706DSER
- Store part #
- C2876297
- Package / case
- WSON-6(1.5x1.5)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,802 in stock
#C2876297
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.01 | ₹62.01 |
| 10+ | ₹49.23 | ₹492.30 |
| 30+ | ₹42.93 | ₹1,287.90 |
| 100+ | ₹37.30 | ₹3,730.00 |
| 500+ | ₹35.79 | ₹17,895.00 |
| 1,000+ | ₹34.91 | ₹34,910.00 |
1 × ₹62.01
₹62.01
excl. GST
₹73.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BQ29706DSER
₹62.01 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 4uA
- 0V Battery Charge
- Support
- Operating Voltage
- 1.5V~8V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.019 g
Overview
The BQ2970 battery protection device provides an accurate monitoring and triggering threshold for overcurrent protection under high discharge/charge current operation or battery overcharge conditions. Package: – 6-pin DSE (1.50mm×1.50mm×0.75mm) The BQ2970 device provides protection functions for lithium-ion/lithium-polymer batteries and monitors external power FETs to provide protection during high charge or discharge currents. In addition, there is also monitoring and protection for overcharged and depleted batteries. These features are achieved with extremely low current consumption during normal mode operation.
Applications
- Tablet
- Mobile phone
- Handheld data terminal
Key features
- Input voltage range: VSS – 0.3V to 12V
- FET drive: CHG and DSG FET drive outputs
- Voltage sensing on external FETs for OCP within ±5mV (typical)
- Fault detection: OVP, UVP, OCC, OCD, SCP
- Zero-voltage charging for depleted batteries
- Factory-preset protection thresholds: fault detection voltage thresholds, fault trigger timers, fault recovery timers
- Operating modes without battery charger enabled: normal mode I_CC = 4μA, shutdown I_CC = 100nA
- Operating temperature range T_A = -40℃ to +85℃
