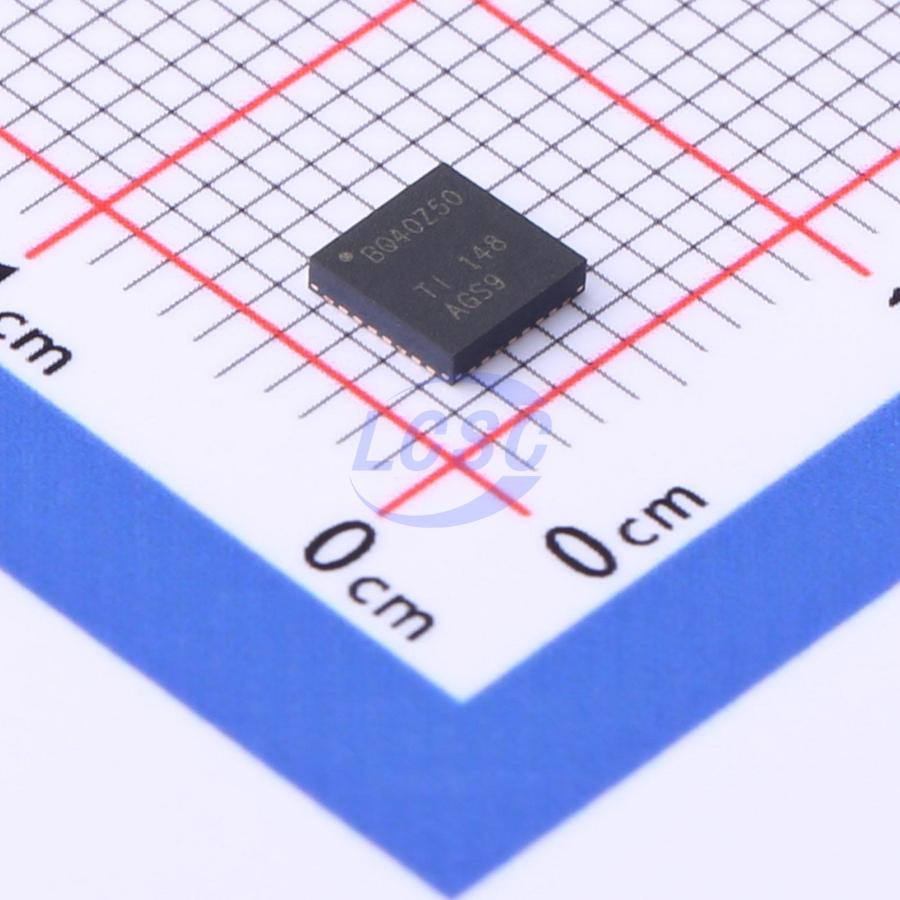

BQ40Z50RSMR-R2
SMBus Lithium Battery VQFN-32-EP(4x4) Battery Management RoHS
1-cell, 2-cell, 3-cell, and 4-cell series-connected lithium-ion battery pack managers
- Manufacturer
- TI
- Manufacturer part #
- BQ40Z50RSMR-R2
- Store part #
- C2845123
- Package / case
- VQFN-32-EP(4x4)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,520 in stock
#C2845123
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹260.72 | ₹260.72 |
| 10+ | ₹222.67 | ₹2,226.70 |
| 30+ | ₹198.97 | ₹5,969.10 |
| 100+ | ₹174.61 | ₹17,461.00 |
| 500+ | ₹163.52 | ₹81,760.00 |
| 1,000+ | ₹158.73 | ₹1,58,730.00 |
1 × ₹260.72
₹260.72
excl. GST
₹307.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BQ40Z50RSMR-R2
₹260.72 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SMBus
- Quiescent Current
- 336uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 2.2V~26V
- Features
- Cell balancing;Overvoltage protection;Overcurrent Protection;Short-Circuit Protection;Over-discharge protection
- The Chip Type
- Protection IC;Monitoring IC
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.073 g
Overview
The BQ40Z50-R2 device employs the patented Impedance Track™ technology. It is a fully integrated, single-chip, battery pack-based solution that offers various features such as charge monitoring, protection, and authentication for 1-cell, 2-cell, 3-cell, and 4-cell series-connected lithium-ion and lithium-polymer battery packs. The BQ40Z50-R2 device utilizes its integrated high-performance analog peripherals to measure the available capacity, voltage, current, temperature, and other key parameters of lithium-ion or lithium-polymer batteries, maintains accurate data records, and reports this information to the system host controller via an SMBus v1.1 compatible interface. The BQ40Z50-R2 device supports TURBO Mode 2.0 by providing the available max power and max current to the host system. The device also supports Battery Trip Point to send a BTP interrupt signal to the host system at the preset state of charge thresholds. The BQ40Z50-R2 provides software-based 1st- and 2nd-level safety protection against overvoltage, undervoltage, overcurrent, short-circuit current, overload, and overtemperature conditions, as well as other pack- and cell-related faults. SHA-1 authentication, with secure memory for authentication keys, enables identification of genuine battery packs. The compact 32-lead QFN package minimizes solution cost and size for smart batteries while providing maximum functionality and safety for battery gauging applications.
Applications
- Tablets
- Drones
- UPS/battery backup systems
- Medical devices
- Handheld vacuum cleaners and robotic vacuum cleaners
Key features
- Fully integrated 1-cell, 2-cell, 3-cell, and 4-cell series Li-Ion or Li-Polymer battery pack manager and protection
- Patented next-generation Impedance Track™ technology for accurate available capacity measurement in Li-Ion and Li-Polymer batteries
- High-side N-channel protection FET driver
- Integrated cell balancing during charging or rest state
- Suitable for batteries between 100mAh and 29Ah
- Comprehensive programmable protection features
- Voltage
- Current
- Temperature
- Charge termination time
- CHG/DSG FET – Analog Front End (AFE)
- Precision charging algorithms – JEITA enhanced charging, adaptive charging, cell balancing
- Turbo Mode 2.0 support
- Battery Trip Point (BTP) support
- Diagnostic lifetime data monitor and black box recorder
- LED display support
- Two-wire SMBus v1.1 interface
- Secure Hash Algorithm (SHA-1) authentication
- IATA support
- Compact package: 32-lead QFN (RSM)
