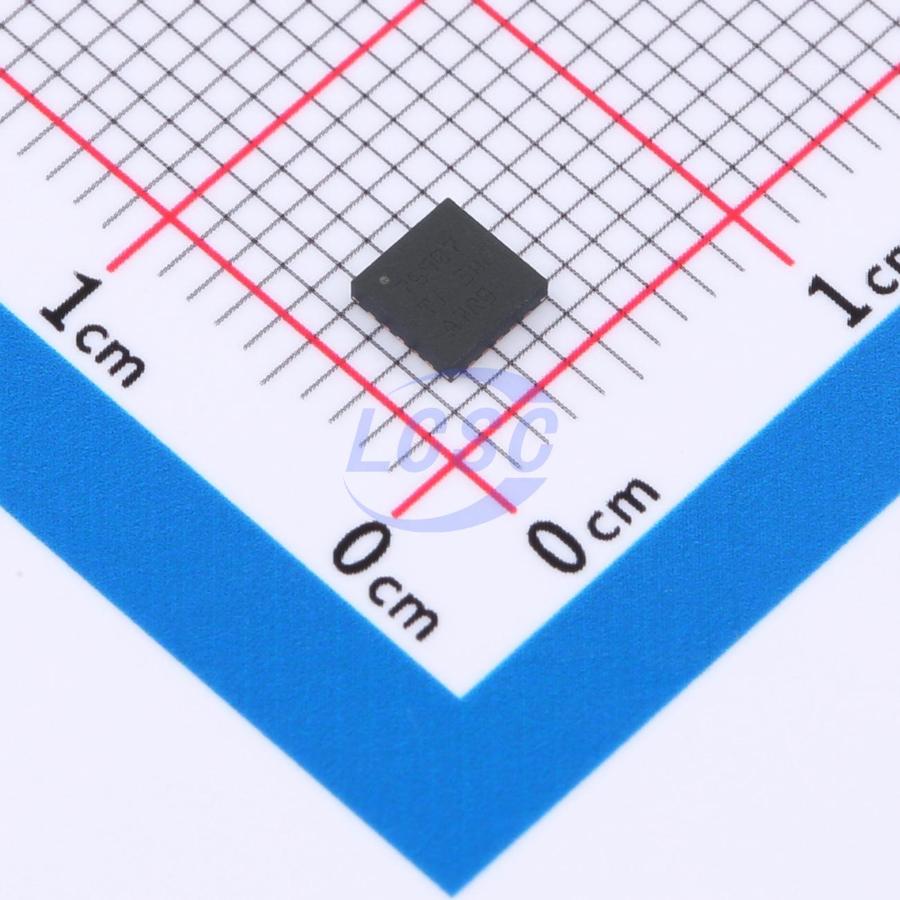

BQ76907RGRR
I2C VQFN-20-EP(3.5x3.5) Battery Management RoHS
2-Series to 7-Series High Accuracy Battery Monitor and Protector for Li-lon, Li-Polymer, LiFePO4 (LFP), and LTO Battery Packs
- Manufacturer
- TI
- Manufacturer part #
- BQ76907RGRR
- Store part #
- C22458649
- Package / case
- VQFN-20-EP(3.5x3.5)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,351 in stock
#C22458649
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹242.29 | ₹242.29 |
| 10+ | ₹206.22 | ₹2,062.20 |
| 30+ | ₹183.62 | ₹5,508.60 |
| 100+ | ₹160.59 | ₹16,059.00 |
| 500+ | ₹150.16 | ₹75,080.00 |
| 1,000+ | ₹145.60 | ₹1,45,600.00 |
1 × ₹242.29
₹242.29
excl. GST
₹285.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BQ76907RGRR
₹242.29 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+110℃
- Interface
- I2C
- Quiescent Current
- 146uA
- Type of Battery
- Lithium Battery;LiFePO4 Battery
- Operating Voltage
- 3V~38.5V
- Features
- Cell balancing;Under-voltage lockout
- The Chip Type
- Protection IC;Monitoring IC
- Balance Current
- 50mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Texas Instruments' BQ76907 is a highly integrated, high-precision battery monitor and protector suitable for 2-series to 7-series Li-ion, Li-polymer, LiFePO4 (LFP), and LTO battery packs. The device includes a high-precision monitoring system with a dedicated coulomb counter and cumulative charge integration, a highly configurable protection subsystem, and support for host-controlled battery balancing. The integration includes a low-side protection NFET driver, a programmable LDO for external system use, and an I2C host communication interface supporting up to 400-kHz operation and optional CRC. The BQ76907 comes in a 20-pin QFN package.
Key features
- Battery monitoring supporting 2 to 7 series cells
- Integrated low-side driver for NFET protection with optional autonomous recovery
- Comprehensive protection suite: voltage, temperature, current, and internal diagnostics
- 16-bit delta-sigma voltage ADC – high-accuracy cell voltage measurement, typical 4 mV
- Dedicated 16-bit or 24-bit delta-sigma coulomb counting ADC
- High-accuracy current measurement with low input offset error
- Wide-range current applications (±200 mV measurement range across sense resistor) – 48-bit accumulated charge integrator with timer
- Host-controlled cell balancing
- Multiple power modes (typical pack operating range conditions)
- NORMAL mode: 32 uA to 175 uA
- SLEEP mode: 6 uA
- DEEPSLEEP mode: 2.7 uA
- SHUTDOWN mode: <1 uA
- High-voltage tolerance up to 45 V on battery and other pins
- Temperature sensing via internal sensor and external thermistor
- Integrated one-time programmable (OTP) memory, programmed by TI
- 400-kHz I2C serial communication with optional CRC support
- Programmable LDO for external system use
- 20-pin QFN (RGR) package
