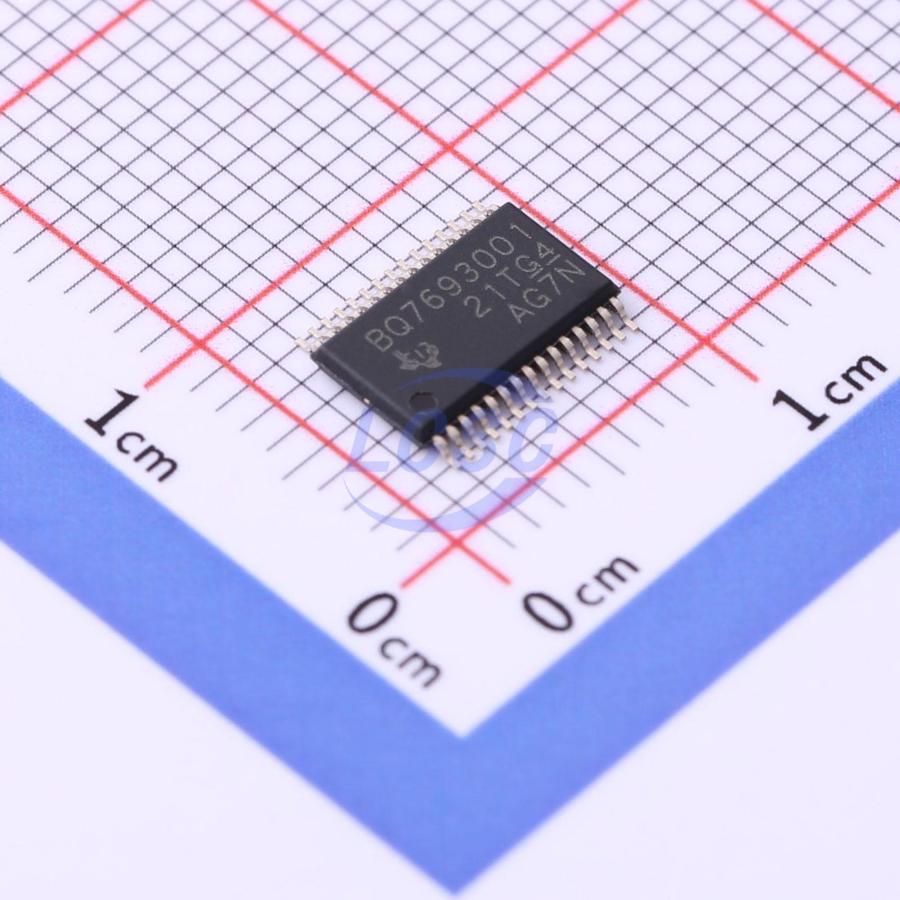

BQ7693001DBTR

I2C TSSOP-30 Battery Management RoHS

TSSOP-30ROHS3 CompliantActive

3 to 15 series battery monitor for lithium-ion batteries and phosphate batteries

Manufacturer: TI
Manufacturer part #: BQ7693001DBTR
Store part #: C2862721
Package / case: TSSOP-30
Category: Battery Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,097 in stock

#C2862721

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹643.59	₹643.59
10+	₹578.77	₹5,787.70
30+	₹545.71	₹16,371.30
100+	₹501.34	₹50,134.00
500+	₹485.46	₹2,42,730.00
1,000+	₹478.50	₹4,78,500.00

Quantity (min 1)

1 × ₹643.59

₹643.59

excl. GST

₹759.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

BQ7693001DBTR

₹643.59 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Interface: I2C
Quiescent Current: 40uA
Type of Battery: Lithium Battery;LiFePO4 Battery
Operating Voltage: 6V~25V
Features: Overcurrent Protection;Short-Circuit Protection;Overvoltage protection;Undervoltage Protection;Cell balancing
The Chip Type: Protection IC;Balancing IC;Monitoring IC
Balance Current: 5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.14 g

Overview

The BQ769x0 series of reliable analog front-end (AFE) devices is part of a complete battery pack monitoring and protection solution for next-generation high-power systems such as light electric vehicles, power tools, and uninterruptible power supplies. The BQ769x0 is designed for low power consumption: it can control the current consumption of the entire chip by enabling/disabling sub-blocks in the IC, and it can also use the shipping mode to easily switch the battery pack to an ultra-low-power state. The BQ76920 device supports up to 5 series-connected batteries or a battery pack with a typical value of 18 V. The BQ76930 can handle up to 10 series-connected batteries or a battery pack with a typical value of 36 V, while the BQ76940 supports up to 15 series-connected batteries or a battery pack with a typical value of 48 V. These AFEs can be used to manage various battery chemistries, such as lithium-ion and lithium iron phosphate. Through I2C, the host controller can use the BQ769x0 to perform various battery pack management functions, such as monitoring (battery voltage, battery pack current, battery pack temperature), protection (controlling charge/discharge FETs), and balancing functions. The integrated analog-to-digital (A/D) converter enables pure digital reading of key system parameters, which are calibrated during the TI manufacturing process.

Applications

Light Electric Vehicles (LEV): e-bikes, electric scooters, pedal-assist bicycles, and pedelecs
Power tools and garden tools
Battery Backup Units (BBUs), Energy Storage Systems (ESS), and Uninterruptible Power Supply (UPS) systems
Other industrial battery packs

Key features

Pure digital interface
Internal ADC for measuring cell voltage, die temperature, and external thermistors; a separate internal ADC measures battery pack current (coulomb counter)
Direct support for up to three thermistors (103AT)
Overcurrent in discharge (OCD)
Short circuit in discharge (SCD)
Overvoltage (OV)
Undervoltage (UV)
Secondary protector fault detection
Integrated cell balancing FET
Charge/discharge low-side NCH FET driver
Alert interrupt to host MCU
2.5 V or 3.3 V output voltage regulator
No EEPROM programming required
High supply voltage absolute maximum (up to 108V)
I2C-compatible simple interface (CRC option)
Tolerant of random battery pack connection
