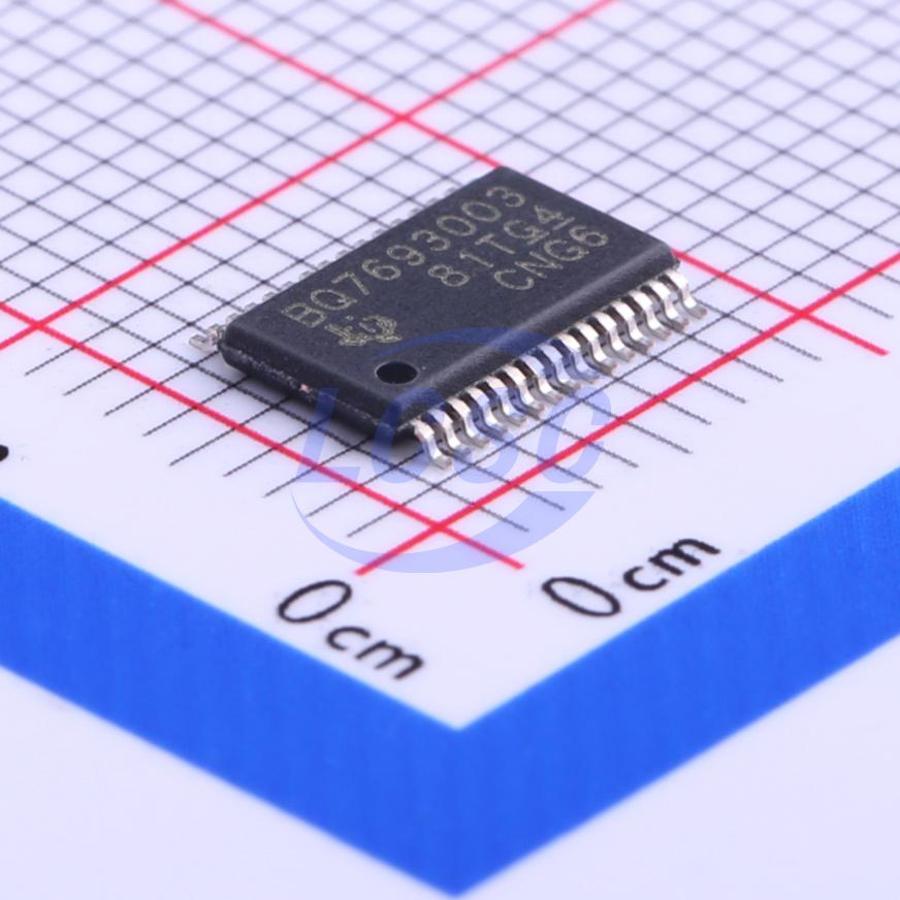

BQ7693003DBTR
I2C TSSOP-30 Battery Management RoHS
Cell Battery Monitor Family for Li-lon and Phosphate Applications
- Manufacturer
- TI
- Manufacturer part #
- BQ7693003DBTR
- Store part #
- C92116
- Package / case
- TSSOP-30
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,008 in stock
#C92116
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹244.66 | ₹244.66 |
| 10+ | ₹205.16 | ₹2,051.60 |
| 30+ | ₹180.63 | ₹5,418.90 |
| 100+ | ₹155.23 | ₹15,523.00 |
| 500+ | ₹143.94 | ₹71,970.00 |
| 1,000+ | ₹138.94 | ₹1,38,940.00 |
1 × ₹244.66
₹244.66
excl. GST
₹288.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BQ7693003DBTR
₹244.66 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- I2C
- Quiescent Current
- 40uA
- Type of Battery
- LiFePO4 Battery;Lithium Battery
- Operating Voltage
- 6V~25V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection;Cell balancing
- The Chip Type
- Monitoring IC;Protection IC
- Balance Current
- 5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.401 g
Overview
The bq769x0 family of robust analog front-end (AFE) devices serves as part of a complete pack monitoring and protection solution for next-generation, high-power systems, such as light electric vehicles, power tools, and uninterruptible power supplies. The bq769x0 is designed with low power in mind: Sub-blocks within the IC may be enabled/disabled to control the overall chip current consumption, and a SHIP mode provides a simple way to put the pack into an ultra-low power state.
Applications
- Light Electric Vehicles (LEV): eBikes, eScooters, Pedelec, and Pedal-Assist Bicycles
- Power and Gardening Tools
- Battery Backup and UPS Systems
- Wireless Base Station Backup Systems
- 12-V, 18-V, 24-V, 36-V, and 48-V Battery Packs
Key features
- AFE Monitoring Features
- Pure Digital Interface Internal ADC Measures Cell Voltage, Die Temperature, and External Thermistor A Separate, Internal ADC Measures Pack Current (Coulomb Counter) Directly Supports up to Three Thermistors (103AT)
- Hardware Protection Features
- Overcurrent in Discharge (OCD)
- Short Circuit in Discharge (SCD)
- Overvoltage (OV)
- Undervoltage (UV)
- Secondary Protector Fault Detection
- Additional Features
- Integrated Cell Balancing FETs – Charge, Discharge Low-Side NCH FET Drivers
- Alert Interrupt to Host Microcontroller 2.5-V or 3.3-V Output Voltage Regulator
- No EEPROM Programming Necessary
- High Supply Voltage Absolute Maximum (Up to 108 V)
- Simple I2C™ Compatible Interface (CRC Option)
- Random Cell Connection Tolerant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BQ7693003DBT#C67600TI · TSSOP-30-4.4mm | TI | TSSOP-30-4.4mm | On request | ₹690.21 · 0 in stock | View |
