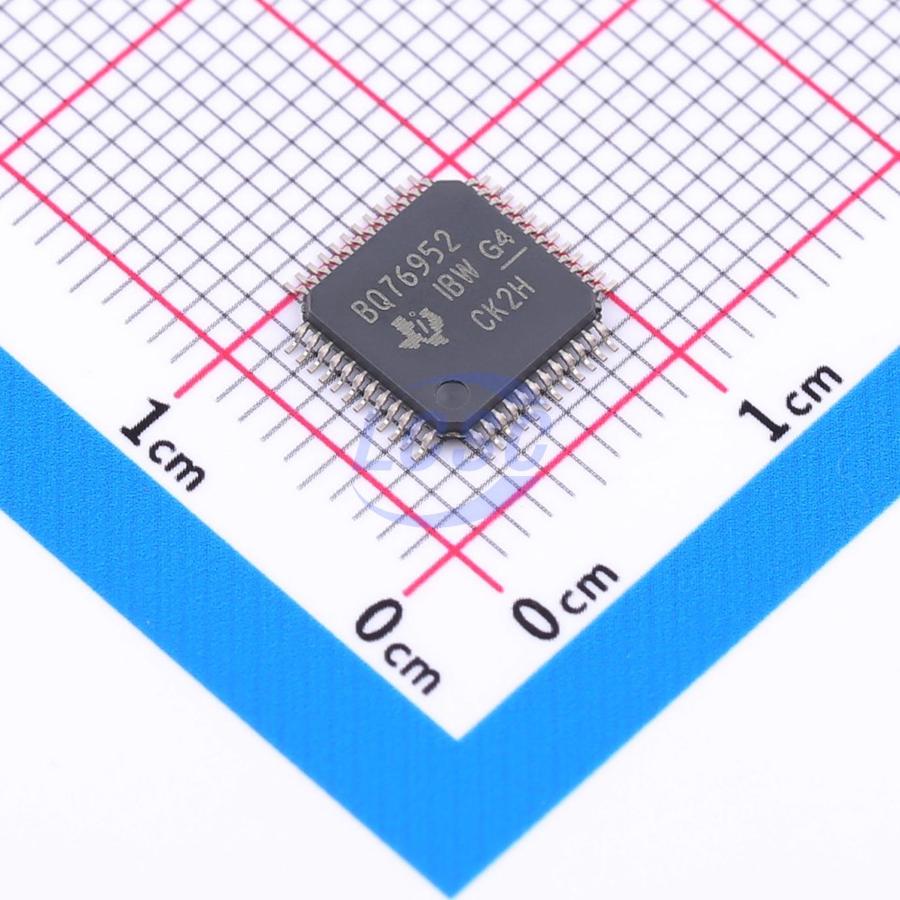

BQ76952PFBR
Battery Protection IC Battery Monitoring IC Lithium Battery LiFePO4 Battery TQFP-48(7x7)
High-precision battery monitor and protector for 3 to 16 series-connected lithium-ion, lithium-polymer, and lithium iron phosphate battery packs
- Manufacturer
- TI
- Manufacturer part #
- BQ76952PFBR
- Store part #
- C2862742
- Package / case
- TQFP-48(7x7)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,074 in stock
#C2862742
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹437.75 | ₹437.75 |
| 10+ | ₹373.80 | ₹3,738.00 |
| 30+ | ₹333.69 | ₹10,010.70 |
| 100+ | ₹292.49 | ₹29,249.00 |
| 500+ | ₹274.06 | ₹1,37,030.00 |
| 1,000+ | ₹265.82 | ₹2,65,820.00 |
1 × ₹437.75
₹437.75
excl. GST
₹516.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BQ76952PFBR
₹437.75 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- I2C;SPI;HDQ
- Quiescent Current
- 1uA
- Operating Voltage
- 4.7V~80V
- Type of Battery
- Lithium Battery;LiFePO4 Battery
- Features
- Cell balancing;Battery temperature monitoring
- The Chip Type
- Protection IC;Monitoring IC
- Balance Current
- 100mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.461 g
Overview
The BQ76952 is a highly integrated, high-precision battery monitor and protector for 3-series to 16-series lithium-ion, lithium polymer, and LiFePO4 battery packs. The device includes a high-precision monitoring system and a highly configurable protection subsystem, with support for autonomous or host-controlled cell balancing. It integrates a high-side charge pump NFET driver, dual programmable LDOs for external system use, and a host communication peripheral supporting 400kHz I2C, SPI, and HDQ single-wire standards. The BQ76952 is available in a 48-pin TQFP package.
Applications
- Battery Backup Unit (BBU)
- E-bikes, e-scooters, and LEVs
- Cordless power tools and garden tools
- Other industrial battery packs (P10S)
Key features
- Battery monitoring for 3 to 16 series-connected cells
- Integrated charge pump for high-side NFET protection with optional auto-recovery
- Comprehensive protection suite including voltage, temperature, current, and internal diagnostics
- Two independent ADCs
- Synchronous current and voltage sampling
- High-accuracy coulomb counter with input offset voltage error <1μV (typical)
- High-accuracy cell voltage measurement <10mV (typical)
- Wide-range current applications (measurement range of ±200mV across sense resistor)
- Integrated chemical fuse-driven secondary protection
- Autonomous or host-controlled cell balancing
- Multiple power modes (typical battery pack operating range conditions)
- Normal mode: 286μA
- Multiple sleep mode options: 24μA to 41μA
- Multiple deep sleep mode options: 9μA to 10μA
- Shutdown mode: 1μA
- High voltage tolerance of 85V on battery connection and select other pins
- Supports random cell connection sequence during production line
- Temperature sensing using internal sensor and up to nine external thermistors
- Integrated one-time programmable (OTP) memory, customer-programmable on production line
- Communication options include 400kHz I2C, SPI, and HDQ single-wire interface
- Dual programmable LDOs for external system use
- 48-pin TQFP package (PFB)
