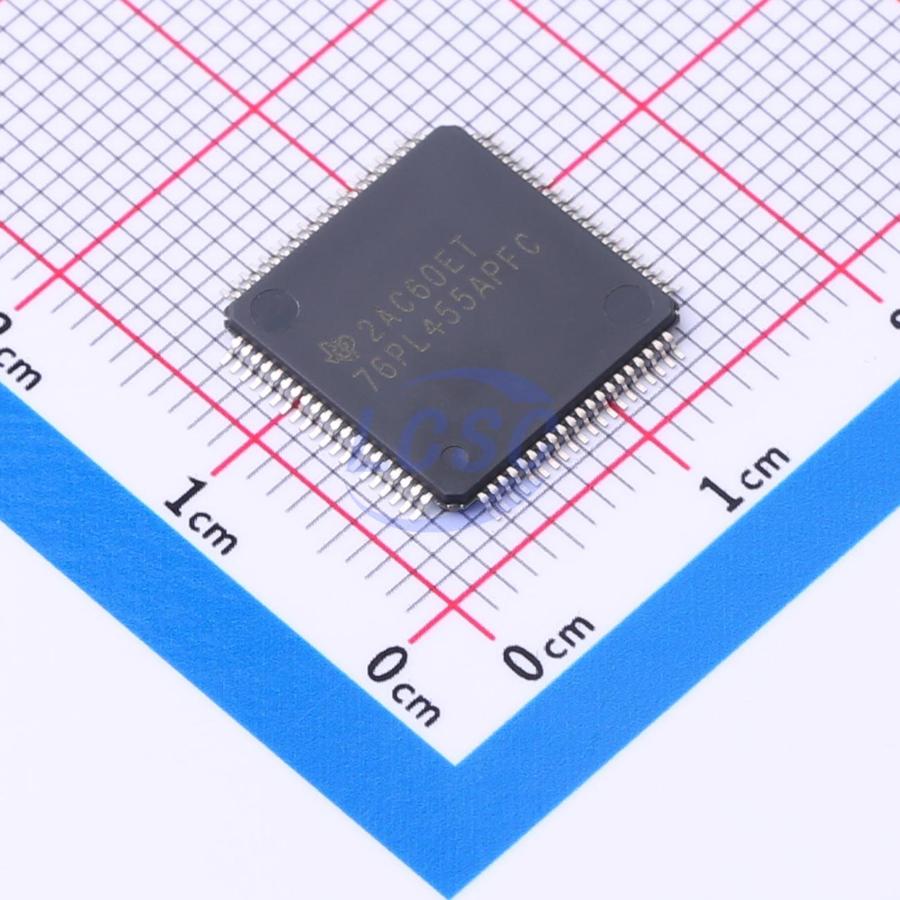

BQ76PL455APFCR
UART TQFP-80(12x12) Battery Management RoHS
16-cell industrial integrated battery monitor with passive cell balancing function
- Manufacturer
- TI
- Manufacturer part #
- BQ76PL455APFCR
- Store part #
- C2877182
- Package / case
- TQFP-80(12x12)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,325 in stock
#C2877182
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,664.59 | ₹1,664.59 |
| 10+ | ₹1,439.52 | ₹14,395.20 |
| 30+ | ₹1,307.86 | ₹39,235.80 |
| 100+ | ₹1,197.71 | ₹1,19,771.00 |
1 × ₹1,664.59
₹1,664.59
excl. GST
₹1,964.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BQ76PL455APFCR
₹1,664.59 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- UART
- Quiescent Current
- 50uA
- 0V Battery Charge
- Not supported
- Operating Voltage
- 5.1V~5.5V
- Features
- Overcharge protection;Over-discharge protection;Cell balancing;Battery temperature monitoring
- The Chip Type
- Monitoring IC;Balancing IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
The bq76PL455A device is an integrated 16-cell battery monitoring and protection device designed for high-reliability automotive applications. With an integrated high-speed, differential, capacitively isolated communication interface, up to sixteen bq76PL455A devices are allowed to communicate with the host through a single high-speed Universal Asynchronous Receiver/Transmitter (UART) interface. The bq76PL455A can monitor and detect a variety of different fault conditions, including overvoltage, undervoltage, overheating, and communication faults. The device includes six General-Purpose Input/Output (GPIO) ports and eight analog Auxiliary Analog-to-Digital Converter (AUX ADC) inputs for additional monitoring and programmable functions. In addition, it also has an auxiliary thermal shutdown function to further enhance its own protection.
Key features
- Monitors and balances 6 to 16 cells per device
- 14-bit high-performance ADC with internal reference
- Total conversion time 2.4ms (nominal) for all cells
- Eight AUX inputs for temperature and other sensors, input voltage range 0V to 5V
- Internal precision reference
- Integrated protector with independent Vref for OV and UV comparators and programmable VCELL thresholds
- Designed for high system robustness
- Stackable isolated differential UART up to 1Mb/s
- Up to 16 ICs connected in daisy-chain via twisted pair
- Passed large current injection (BCI) testing
- Designed for reliable hot-swap performance
- Passive balancing via external N-channel FET; active balancing via EMB1428Q/EMB1499Q
