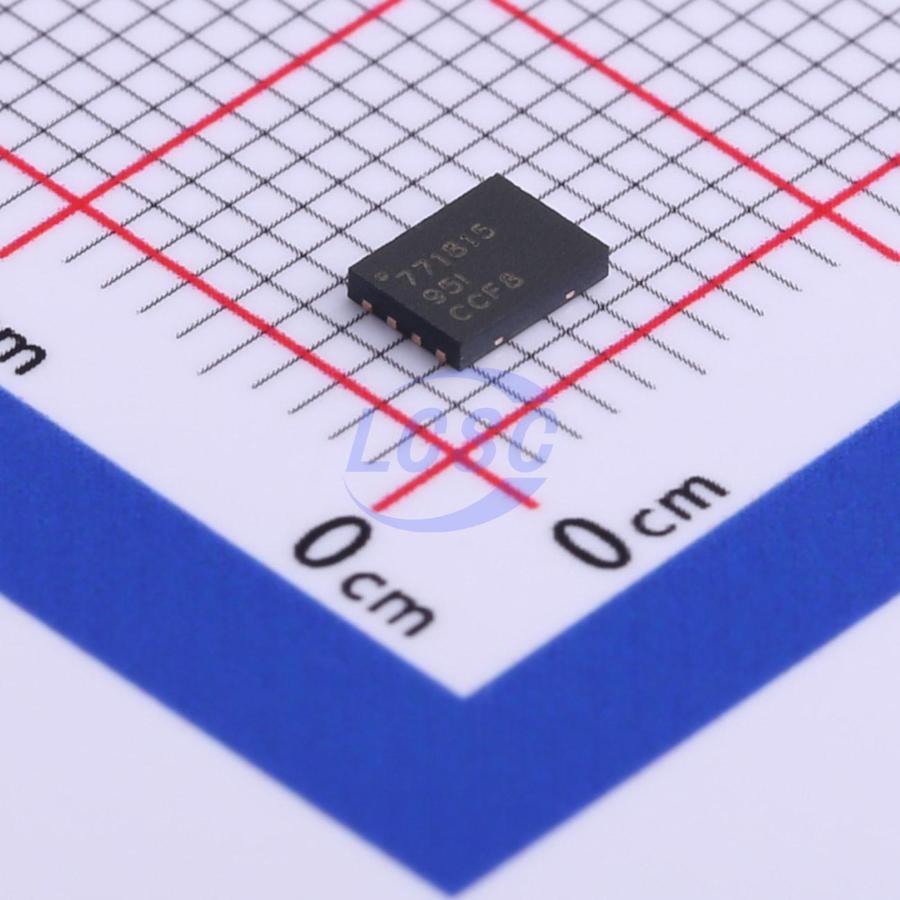

BQ771815DPJR
Battery Protection IC Lithium Battery WSON-8-EP(3x4)
Overvoltage Protection for 2-Series to 5-Series Cell Li-lon Batteries with Internal Delay Timer
- Manufacturer
- TI
- Manufacturer part #
- BQ771815DPJR
- Store part #
- C555148
- Package / case
- WSON-8-EP(3x4)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,674 in stock
#C555148
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.82 | ₹51.82 |
| 10+ | ₹45.78 | ₹457.80 |
| 30+ | ₹42.75 | ₹1,282.50 |
| 100+ | ₹39.73 | ₹3,973.00 |
| 500+ | ₹36.92 | ₹18,460.00 |
| 1,000+ | ₹36.06 | ₹36,060.00 |
1 × ₹51.82
₹51.82
excl. GST
₹61.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BQ771815DPJR
₹51.82 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+110℃
- Quiescent Current
- 1uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 3V~25V
- Features
- Overcharge protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The BQ7718xy series provides overvoltage monitors and protectors for lithium-ion battery pack systems. Each cell is independently monitored for overvoltage conditions. To enable faster production line testing, BQ7718xy devices offer a Customer Test Mode (CTM) with significantly reduced delay times. In BQ7718xy devices, when an overvoltage condition is detected on any cell, an internal delay timer is initiated. Upon delay timer expiration, the output is triggered to its active state (high or low, depending on configuration).
Applications
- Lithium-ion battery pack protection
- Handheld gardening tools
- Handheld power tools
- Cordless vacuum cleaners
- UPS backup batteries
- Light electric vehicles (e-bikes, electric scooters, pedal-assist bicycles)
Key features
- Overvoltage protection for 2, 3, 4, and 5 series-connected cells
- Internal delay timer
- Fixed OVP threshold
- High-accuracy overvoltage protection: ±10mV
- Low quiescent current ICC ≈ 1μA (VCELL(ALL) < VPROJECT)
- Low leakage current < 100nA per cell input
- Functional safety support
- Documentation to assist functional safety system design
- Package options:
- Small 8-pin QFN (3.00mm × 4.00mm) package
- 8-pin MSOP with leads (3.00mm × 5.00mm, with leads)
