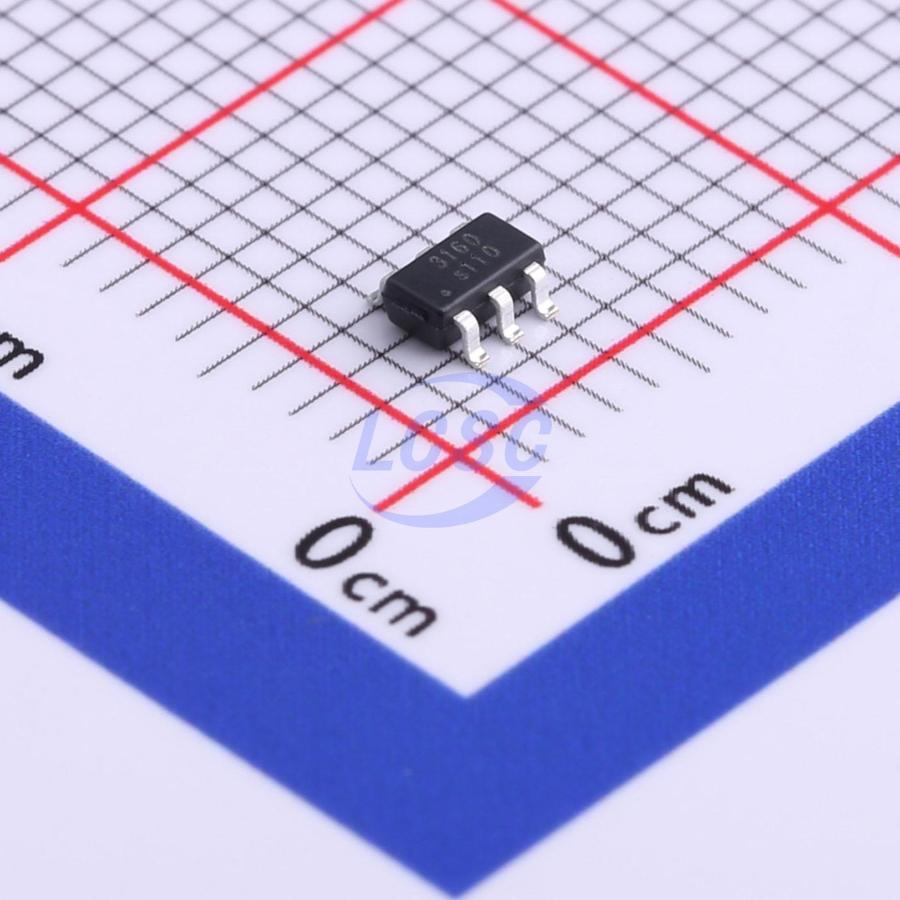

BRCL3160MF

The BRCL3160MF is a highly integrated protection solution for single-cell Li-ion/Li-polymer rechargeable battery packs. It integrates advanced power MOSFETs, a high-accuracy voltage detection circuit, and a delay circuit. The BRCL3160MF features an ultra-compact SOT23-6 package, making it ideal for rechargeable battery pack applications with stringent space constraints. It provides all the protection functions required for battery applications, including overcharge, overdischarge, overcurrent, and short-circuit protection, while maintaining very low operating power consumption. The device is designed not only for mobile phones, but also for any information product application requiring long-term power supply from Li-ion or Li-polymer rechargeable batteries. The BRCL3160MF series product is a high integration solution for lithium-ion/polymer battery protection. BRCL3160MF contains advanced power MOSFETs, high-accuracy voltage detection circuits, and delay circuits. BRCL3160MF is housed in an ultra-small SOT23-6 package, and only one external component makes it an ideal solution for space-limited battery pack designs. BRCL3160MF provides all the protection functions required in battery applications, including overcharge, overdischarge, overcurrent, and load short-circuit protection. The accurate overcharge detection voltage ensures safe and full utilization of charging capacity. The low standby current drains minimal current from the cell during storage. The device is not only targeted for digital cellular phones, but also for any other Li-ion and Li-polymer battery-powered information appliances requiring long-term battery life.

Applications

• Single-cell Li-ion battery pack
• Li-Polymer battery pack
• One-Cell lithium-ion battery pack
• Lithium-Polymer battery pack

Key features

• Integrated advanced power MOSFET with equivalent 50mΩ RDS(ON)
• Ultra-small SOT23-6 package
• Over-temperature protection; overcharge current protection; two-step overcurrent detection: overdischarge current, load short circuit current
• Charger detection; 0V battery charging; internally set delay times; high-accuracy voltage detection
• Low quiescent current — normal operating current: 2.8uA; standby current: 1.5uA; RoHS compliant and lead-free
• Halogen-free product
• Integrated advanced power MOSFET with equivalent 50mΩ RDS(ON)
• Ultra-small SOT23-6 package
• Over-temperature protection; overcharge current protection; two-step overcurrent detection: overdischarge current, load short circuiting
• Charger detection function; 0V battery charging function; internally generated delay times; high-accuracy voltage detection
• Low current consumption; operation mode: 2.8uA typ; power-down mode: 1.5uA typ; RoHS compliant and lead (Pb) free
• Halogen-free product
