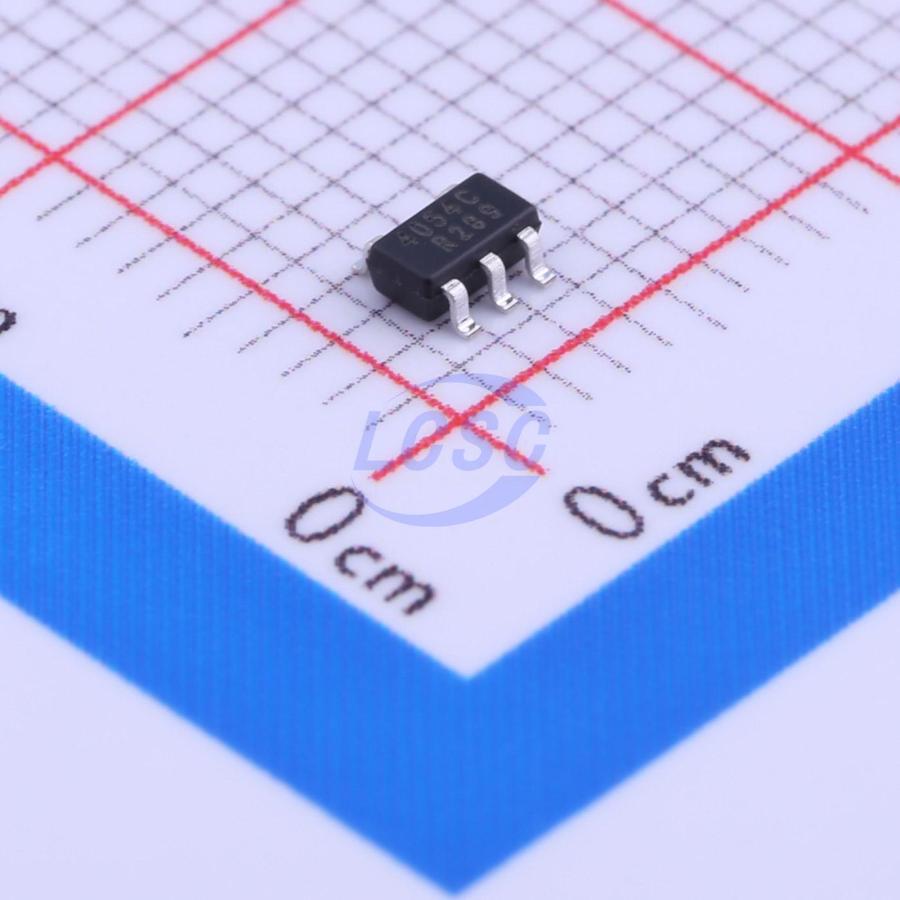

BRCL4054CME
Battery Charging IC Lithium Battery SOT-23-5
Single-cell lithium-ion battery constant current/constant voltage linear charger
- Manufacturer
- BLUE ROCKET
- Manufacturer part #
- BRCL4054CME
- Store part #
- C305436
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,100 in stock
#C305436
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.67 | ₹93.40 |
| 200+ | ₹3.69 | ₹738.00 |
| 600+ | ₹3.20 | ₹1,920.00 |
| 3,000+ | ₹2.83 | ₹8,490.00 |
| 9,000+ | ₹2.54 | ₹22,860.00 |
| 21,000+ | ₹2.39 | ₹50,190.00 |
20 × ₹4.67
₹93.40
excl. GST
₹110.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BRCL4054CME
₹93.40 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 200uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.25V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.036 g
Overview
BRCL4054CME is a complete single-cell lithium-ion battery linear charger featuring constant-current/constant-voltage operation. Its SOT package and minimal external component count make the BRCL4054CME an ideal choice for portable applications. The BRCL4054CME is compatible with both USB power supplies and adapter power sources. The internal PMOSFET architecture, combined with reverse-charge protection circuitry, eliminates the need for external sense resistors and isolation diodes. Thermal feedback regulates the charge current to limit die temperature during high-power operation or elevated ambient temperature conditions. The charge voltage is fixed at 4.2V, while the charge current can be externally set via a single resistor. When the charge current drops to 1/10 of the programmed value after reaching the final float voltage, the BRCL4054CME automatically terminates the charge cycle. When the input voltage (AC adapter or USB power supply) is removed, the BRCL4054CME automatically enters a low-current state, reducing battery leakage current to below 2uA. The BRCL4054CME can also be placed in shutdown mode, reducing supply current to 25uA. Additional features of the BRCL4054CME include a charge current monitor, undervoltage lockout, automatic recharge, and a status pin for indicating end-of-charge and input voltage presence.
Applications
- Cellular Phones, PDAs, MP3 Players
- Charging Docks and Cradles
- Bluetooth Applications
Key features
- Programmable charge current up to 500mA
- No MOSFET, sense resistor, or blocking diode required
- Complete linear charger in SOT-23 5-lead package for single-cell Li-Ion batteries
- Constant-current/constant-voltage operation with thermal regulation to maximize charge rate without risk of overheating
- Charges single-cell Li-Ion batteries directly from USB port
- Preset 4.2V charge voltage with ±1% accuracy
- Charge current monitor output for gas gauging
- Automatic recharge
- Charge status output pin
- C/10 charge termination
- 25μA supply current in shutdown
- 2.9V trickle charge threshold
- Soft-start limits inrush current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BRCL4054DME#C5137052BLUE ROCKET · SOT-23-5 | BLUE ROCKET | SOT-23-5 | On request | Price on request | Quote |
