InfineonDatasheet (PDF)

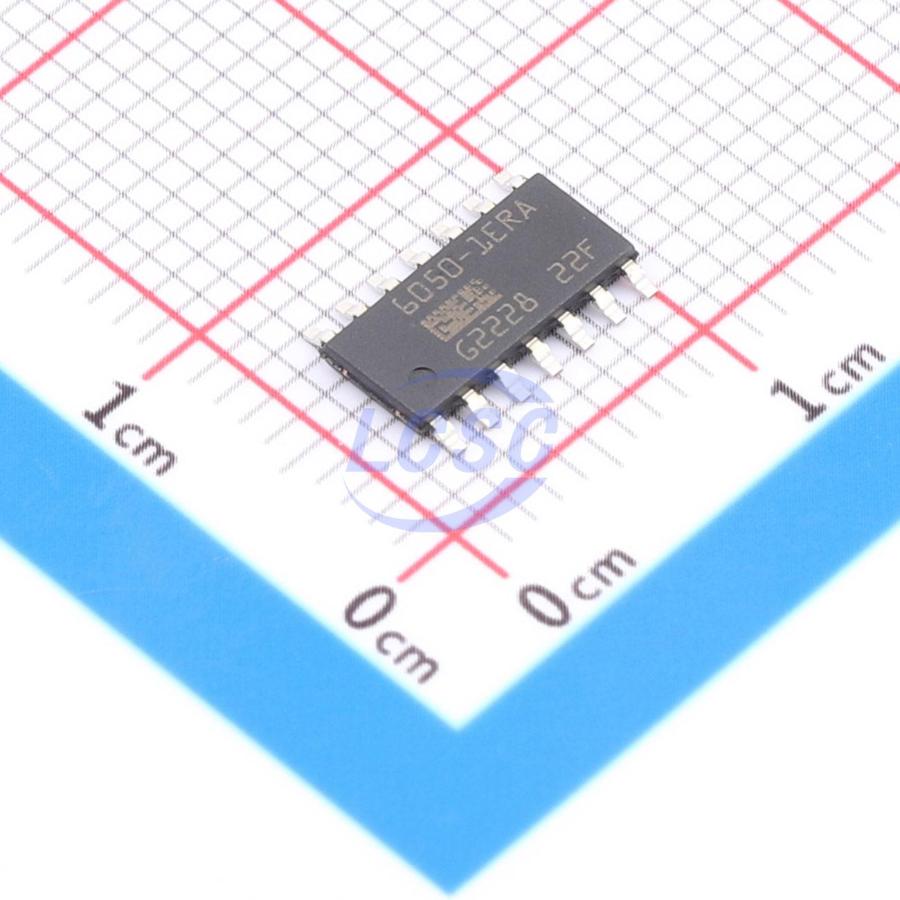

BTT6050-1ERA
1 4.5A Active High High Side Switch TDSO-14 Power Distribution Switches, Load Drivers RoHS
TDSO-14ROHS3 CompliantActive
24V Smart High-Side Power Switch Single Channel
- Manufacturer
- Infineon
- Manufacturer part #
- BTT6050-1ERA
- Store part #
- C534868
- Package / case
- TDSO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,818 in stock
#C534868
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹167.95 | ₹167.95 |
| 10+ | ₹153.31 | ₹1,533.10 |
| 30+ | ₹144.06 | ₹4,321.80 |
| 100+ | ₹134.58 | ₹13,458.00 |
| 500+ | ₹130.49 | ₹65,245.00 |
| 1,000+ | ₹128.56 | ₹1,28,560.00 |
1 × ₹167.95
₹167.95
excl. GST
₹198.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTT6050-1ERA
₹167.95 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Latch protection;Integrated charge pump
- number of channels
- 1
- Maximum Continuous Current
- 4.5A
- Control Input Logic
- Active High
- Operating Voltage
- 5V~36V
- RDS(on)
- 50mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.299 g
Overview
The BTT6050-1ERA is a 50 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to 2* P21W 24V, as well as LEDs in the harsh automotive environment.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Most suitable for loads with high inrush current, such as lamps
- Suitable for 12 V and 24 V truck and transportation system
Key features
- One channel device
- Very low stand-by current
- 3.3 V and 5 V compatible logic inputs
- Electrostatic discharge protection (ESD)
- Optimized electromagnetic compatibility
- Logic ground independent from load ground
- Very low power DMOS leakage current in OFF state
- Green product (RoHS compliant) & AEC qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BTT6030-1ERA#C534863Infineon · TDSO-14 | Infineon | TDSO-14 | 3,027 | ₹361.27 · 3,027 in stock | View |
 | BTT6020-1ERA#C534861Infineon · TDSO-14 | Infineon | TDSO-14 | On request | ₹531.73 · 0 in stock | View |
 | BTT6010-1ERA#C534858Infineon · TDSO-14 | Infineon | TDSO-14 | 2,261 | ₹391.12 · 2,261 in stock | View |
