ROHMDatasheet (PDF)

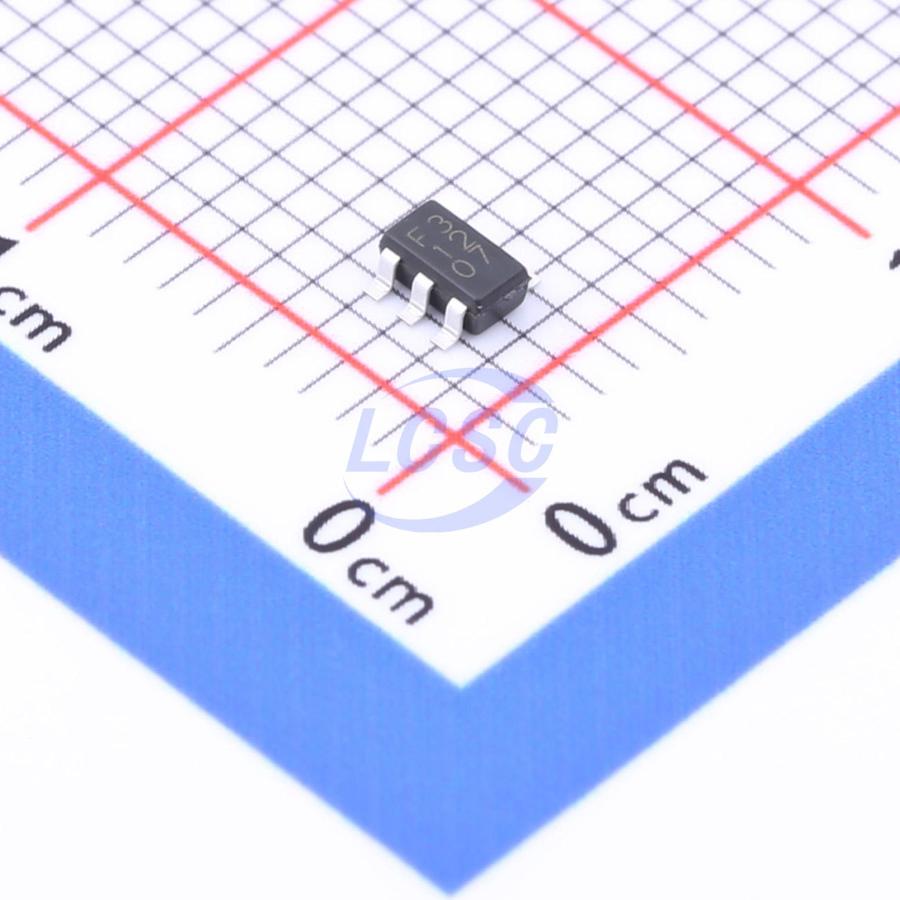

BU18TD3WG-TR
1.8V Positive Fixed SSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SSOP-5ROHS3 CompliantActive
FULL CMOS LDO Regulator
- Manufacturer
- ROHM
- Manufacturer part #
- BU18TD3WG-TR
- Store part #
- C509839
- Package / case
- SSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C509839
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.63 | ₹66.30 |
| 100+ | ₹5.17 | ₹517.00 |
| 300+ | ₹4.43 | ₹1,329.00 |
| 3,000+ | ₹3.89 | ₹11,670.00 |
| 6,000+ | ₹3.45 | ₹20,700.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.63
₹66.30
excl. GST
₹78.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU18TD3WG-TR
₹66.30 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
BUxxTD3WG series is high-performance FULL CMOS regulator with 200-mA output, which is mounted on versatile package SSOP5 (2.9 mm×2.8 mm×1.25 mm). It has excellent noise characteristics and load responsiveness characteristics despite its low circuit current consumption of 35μA. It is most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.
Applications
- Battery-powered portable equipment
Key features
- High accuracy detection
- Low current consumption
- Compatible with small ceramic capacitor Cin = Co = 0.47uF
- With built-in output discharge circuit
- High ripple rejection
- ON/OFF control of output voltage
- With built-in over current protection circuit and thermal shutdown circuit
- Package SSOP5 is similar to SOT-23-5 (JEDEC)
- Low dropout voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BU18SD2MG-MTR#C3750384ROHM · SSOP-5 | ROHM | SSOP-5 | 10 | ₹41.38 · 10 in stock | View |
| BU18SD5WG-TL#C6135960ROHM · SSOP-5 | ROHM | SSOP-5 | 197 | ₹108.14 · 197 in stock | View | |
| BU18JA2VG-CGTR#C5955950ROHM · SSOP-5 | ROHM | SSOP-5 | On request | ₹49.86 · 0 in stock | View | |
