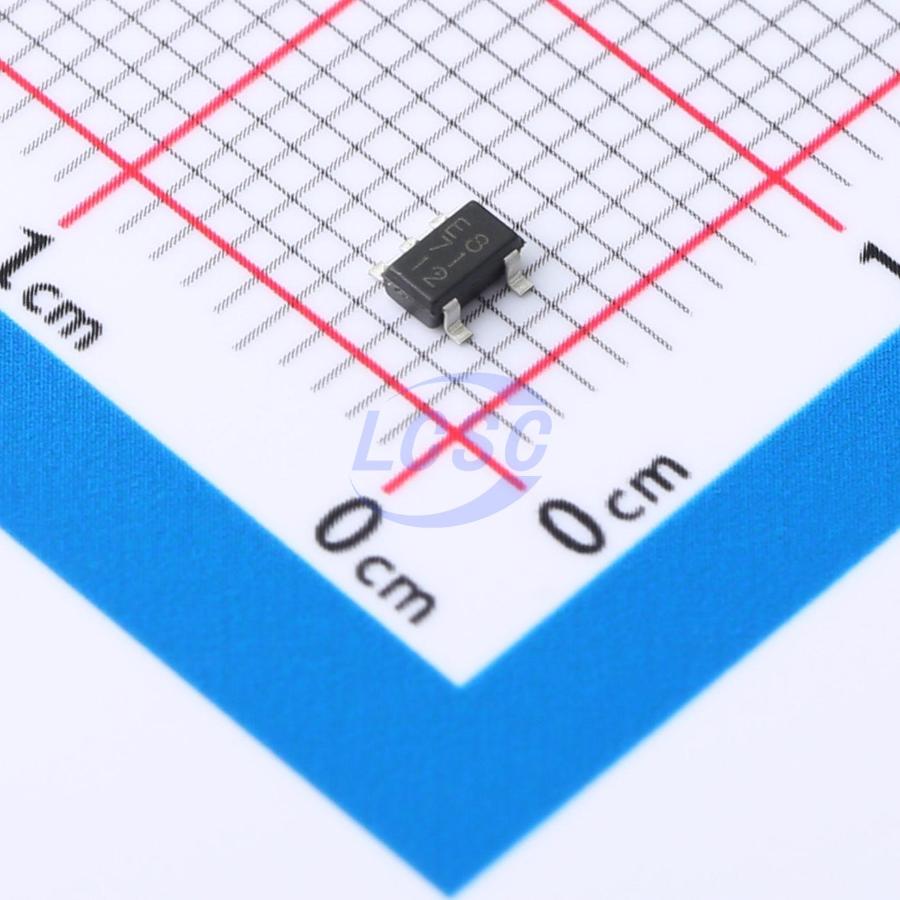

ROHM

BU7411SG-TR

2.4mA 1 1mV 2.4V/us 1pA 60dB 350nA 4kHz SSOP-5-1.6mm Instrumentation, Op Amps, Buffer Amps RoHS

SSOP-5-1.6mmROHS3 CompliantActive

CMOS Operational Amplifiers

Manufacturer: ROHM
Manufacturer part #: BU7411SG-TR
Store part #: C2057904
Package / case: SSOP-5-1.6mm
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,001 in stock

#C2057904

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹65.18	₹65.18
10+	₹50.41	₹504.10
30+	₹44.11	₹1,323.30
100+	₹36.50	₹3,650.00
500+	₹33.04	₹16,520.00
1,000+	₹30.85	₹30,850.00

Quantity (min 1)

1 × ₹65.18

₹65.18

excl. GST

₹76.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

BU7411SG-TR

₹65.18 for 1 + GST

Specifications

Output Current: 2.4mA
Number of Channels: 1
Vos - Input Offset Voltage: 1mV
Slew Rate: 2.4V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+105℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 60dB
Quiescent Current: 350nA
Gain Bandwidth Product: 4kHz
Dual Supply: -10V~10V
Single Supply: 1.6V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.24 g

Overview

The BU7411G is low voltage operation output full swing ultra-low supply current CMOS operational amplifiers. The BU7411SG has an extended operating temperature range. They have feature of low supply current and low input bias current. There are suitable for battery-powered equipments and sensor amplifiers.

Applications

Sensor Amplifier
Consumer Equipment
Battery-powered Equipment
Portable Equipment

Key features

Ultra-low Supply Current
Low Operating Supply Voltage
Wide Operating Temperature Range
Low Input Bias Current

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
BU7265G-TR#C2057945ROHM · SSOP-5-1.6mm	ROHM	SSOP-5-1.6mm	19	₹322.47 · 19 in stock	View
MCP6031T-E/OT#C122878MICROCHIP · SOT-23-5	MICROCHIP	SOT-23-5	10	₹178.14 · 10 in stock	View
MCP6041T-I/OT#C56463MICROCHIP · SOT-23-5	MICROCHIP	SOT-23-5	664	₹91.50 · 664 in stock	View
OPZ503ASOT235#C5359440analogysemi · SOT23-5	analogysemi	SOT23-5	93	₹51.70 · 93 in stock	View
TLV2401IDBVR#C202319TI · SOT-23-5	TI	SOT-23-5	40	₹194.23 · 40 in stock	View
