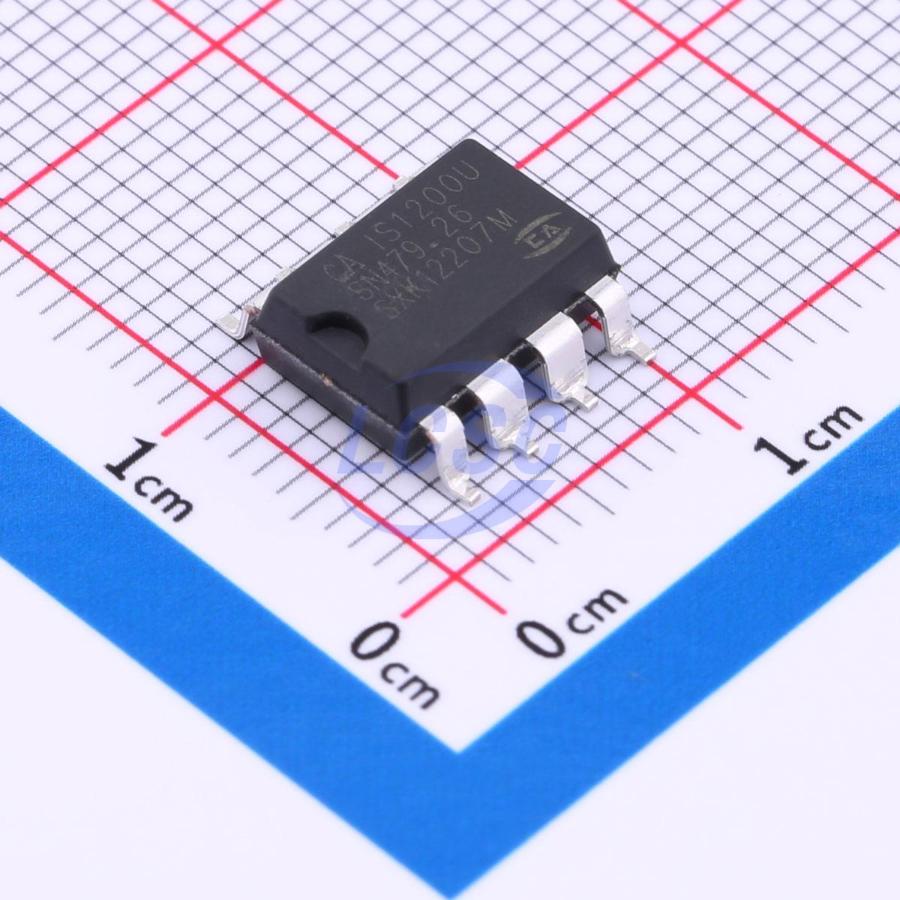

CA-IS1200U

The CA-IS1200 is a high-precision isolation amplifier optimized for shunt resistor-based current sensing. Low offset, gain error, and drift ensure measurement accuracy across the full operating temperature range. The CA-IS1200 uses a silicon dioxide (SiO₂) isolation barrier, supporting galvanic isolation up to 3750 VRMS (CA-IS1200U) or 5000 VRMS (CA-IS1200G) per UL 1577. This technology separates high- and low-voltage domains to protect low-voltage components from damage, while providing low emissions and robust immunity to magnetic field transients. High common-mode transient immunity (CMTI) enables the CA-IS1200 to transmit accurate signals across the isolation barrier, making it suitable for industrial motor control and drives requiring high-voltage and high-power switching. Integrated input common-mode overvoltage and high-side supply undervoltage detection features support fault diagnosis and system safety. The CA-IS1200 is available in an 8-pin DUB or wide-body SOIC package, rated for the extended industrial temperature range of −40°C to 125°C.

Applications

• Industrial motor control and drives
• Isolated switching power supplies
• Uninterruptible power supplies

Key features

• Differential input voltage range: ±250 mV
• Fixed initial gain: 8
• Low input offset and drift: ±1 mV (max) at 25°C, ±4 μV/°C (max)
• Low gain error and drift: ±0.5% (max) at 25°C, ±50 ppm/°C (max)
• Low nonlinearity and drift: 0.01% (typ) at full scale, ±1 ppm/°C (typ)
• 3.3-V or 5-V high/low-side supply
• High common-mode transient immunity: ±150 kV/µs (typ)
• Wide operating temperature range: –40°C to 125°C
• Safety-related certifications: VDE 0884-17 isolation certification (CA-IS1200G), UL certification per UL1577 (CA-IS1200G), IEC 61010-1:2010+A1 certification
