Chipanalog

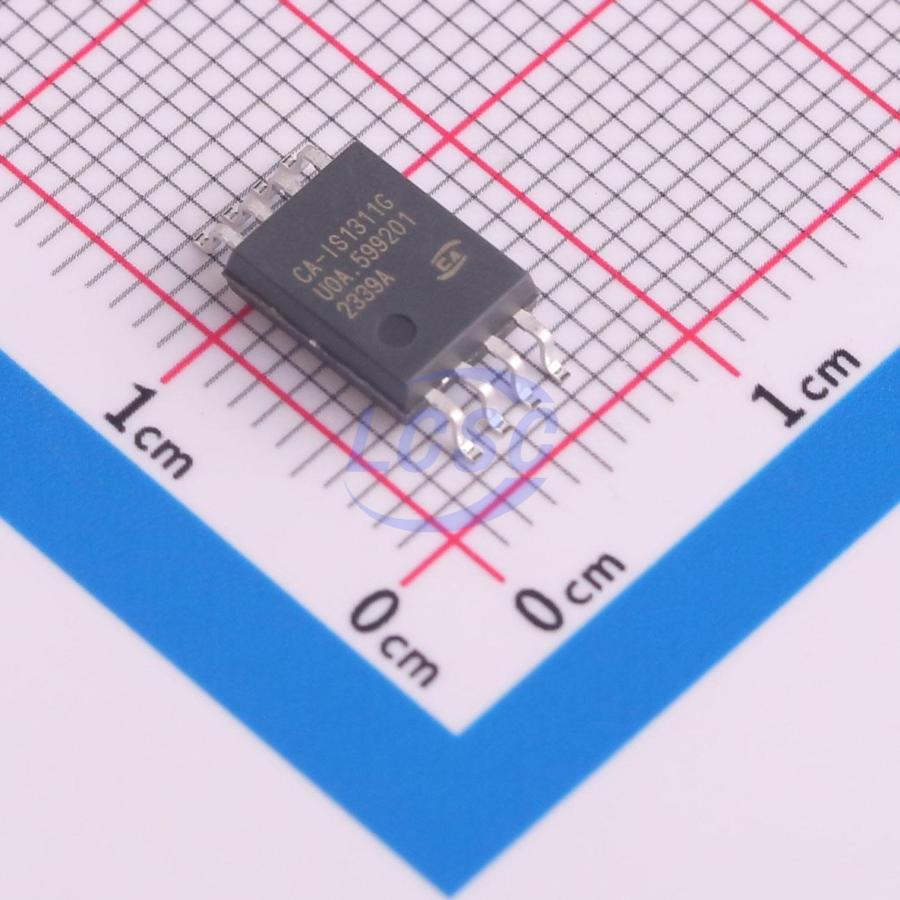

CA-IS1311G

1 30kV/us 1.5mV 1nA SOIC-8 Instrumentation, Op Amps, Buffer Amps

SOIC-8RoHSActive

Isolated operational amplifier for voltage detection

Manufacturer: Chipanalog
Manufacturer part #: CA-IS1311G
Store part #: C18186208
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,798 in stock

#C18186208

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹189.04	₹189.04
10+	₹149.04	₹1,490.40
30+	₹131.89	₹3,956.70
100+	₹110.50	₹11,050.00
500+	₹100.97	₹50,485.00
1,000+	₹95.26	₹95,260.00

Quantity (min 1)

1 × ₹189.04

₹189.04

excl. GST

₹223.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

CA-IS1311G

₹189.04 for 1 + GST

Specifications

Voltage - Supply(Output): 3V~5.5V
output type: Differential
Gain: 1
CMTI(kV/us): 30kV/us
Features: Isolated ΔΣ (Sigma-Delta) modulator;Fault detection;Low-Power Consumption
Vos - Input Offset Voltage: 1.5mV
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1nA
Isolation Voltage(Vrms): 5000
Voltage - Supply(Input): 3V~5.5V
-3dB Bandwidth: 275kHz

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.977 g

Overview

The CA-IS1311 is a high-precision isolated amplifier optimized for voltage sensing. Low offset and gain errors along with their associated temperature drift coefficients maintain measurement accuracy over the full operating temperature range. The CA-IS1311 uses silicon dioxide (SiO₂) as the isolation barrier, supporting electrical isolation up to 5 kVᵣₘₛ in compliance with UL 1577 certification. This technology separates the high- and low-voltage domains to protect low-voltage components from damage, while providing low emissions and high immunity to magnetic fields. High common-mode transient immunity (CMTI) ensures that the CA-IS1311 accurately transfers signals across the isolation barrier, making it suitable for industrial motor control and drive applications requiring high-voltage, high-power switching. The on-chip high-side power loss detection and undervoltage lockout (UVLO) function facilitates fault diagnosis and system safety. The CA-IS1311 features a high-impedance input, making it suitable for applications where the signal source has a high output impedance (e.g., high-voltage resistive voltage dividers). The CA-IS1311 includes a shutdown mode that allows the high-side circuitry to be disabled by pulling the SHTDN pin high, reducing power consumption. The CA-IS1311 is available in a wide-body 8-pin SOIC package and is rated for operation over the extended industrial temperature range of -40℃ to 125℃.

Applications

Industrial motor control and drives
Isolated switching power supplies
Uninterruptible power supplies

Key features

Input voltage range: -0.1 V to 2 V
High input impedance: 1 GΩ (typical)
Fixed initial gain: 1
Low input offset and temperature drift: ±1.5 mV (max) at 25℃, ±15 μV/℃ (max)
Low gain error and temperature drift: ±0.3% (max) at 25℃, ±40 ppm/℃ (max)
High-side and low-side both support 3.3 V and 5 V supply voltages
Wide operating temperature range: -40℃ to 125℃
Safety and regulatory certifications: 7070 Vₚₖ isolation voltage per DIN V VDE V 0884-11 (VDE V 0884-11):2017-01 (pending), UL 1577 certified at 5 kVᵣₘₛ for 1 minute, TUV certified
Lifetime greater than 40 years at rated operating voltage
