TDSEMICDatasheet (PDF)

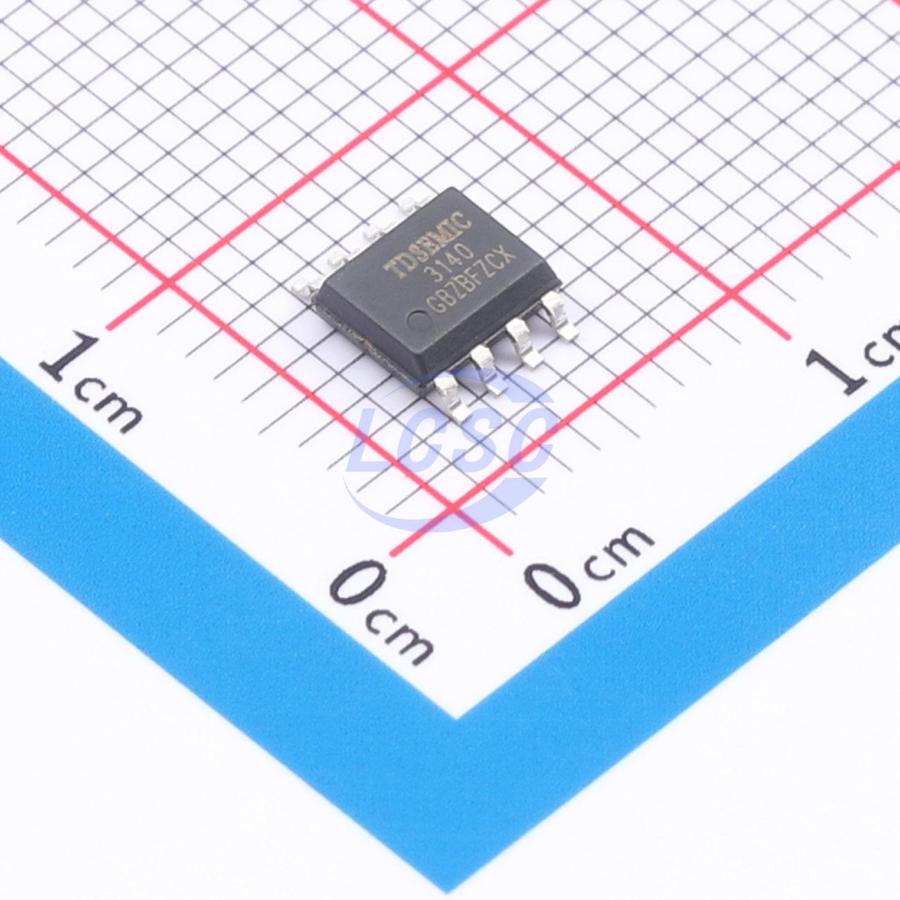

CA3140-TD
45mA 1 3mV 9V/us 80dB 50pA 4.5MHz Output rail-to-rail SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- CA3140-TD
- Store part #
- C52741397
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,395 in stock
#C52741397
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.81 | ₹69.81 |
| 10+ | ₹55.08 | ₹550.80 |
| 30+ | ₹48.79 | ₹1,463.70 |
| 100+ | ₹40.76 | ₹4,076.00 |
| 500+ | ₹37.30 | ₹18,650.00 |
| 1,000+ | ₹35.13 | ₹35,130.00 |
1 × ₹69.81
₹69.81
excl. GST
₹82.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CA3140-TD
₹69.81 for 1 + GST
Specifications
- Output Current
- 45mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 30pA
- Operating Temperature
- -20℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Gain Bandwidth Product
- 4.5MHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -15V~-5V;5V~15V
- Rail to Rail
- Output rail-to-rail
- Single Supply
- 4V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.116 g
Overview
CA3140-TD is a monolithically integrated single op-amp that combines the advantages of high-voltage PMOS transistors and high-voltage bipolar transistors. The device employs gate-protected MOSFET (PMOS) technology at the input stage, achieving ultra-high input impedance, ultra-low input current, and high-speed performance. CA3140-TD is available in SOP8 and DIP8 packages.
Applications
- Peak detector
- Comparator
- Sample-and-hold amplifier
Key features
- Low power consumption: 4mA
- Wide common-mode input voltage range
- Wide differential input voltage range
- Low input bias current: 50 pA
- Low input offset current: 30 pA
- Output short-circuit protection
- High slew rate: 9 V/μS
- High gain-bandwidth product: 4.5MHz
