MSKSEMI

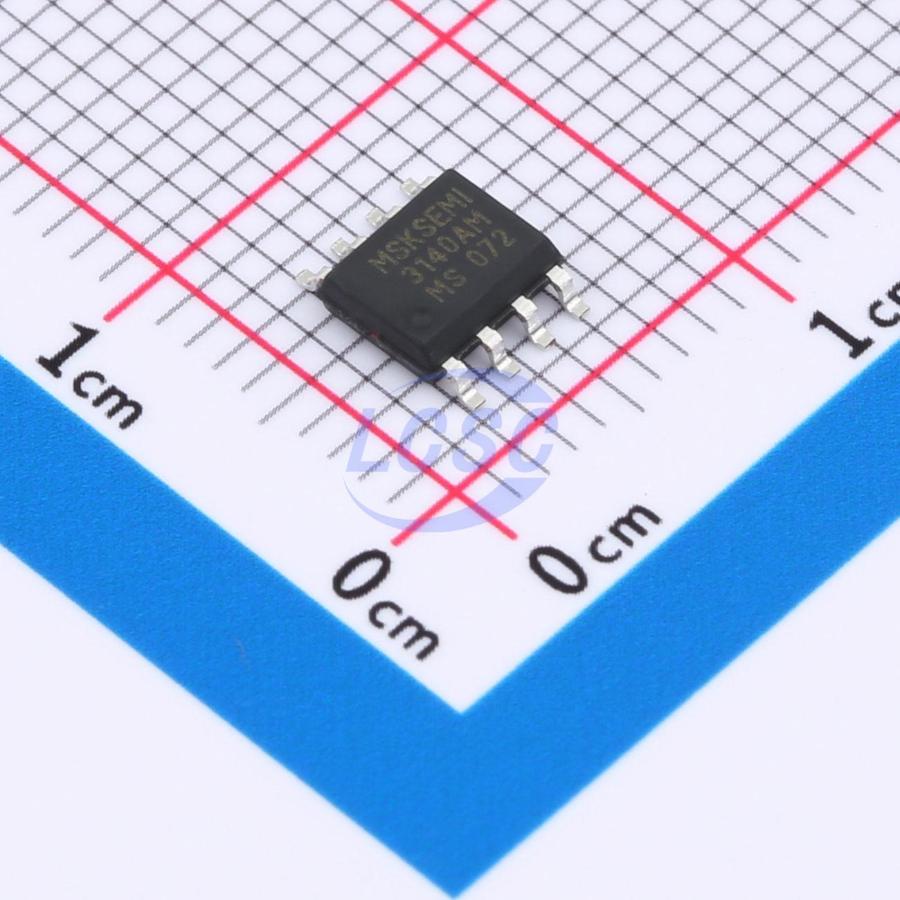

CA3140AMZ96-MS

Standard (General Purpose) Amplifier 1 Circuit SOP-8

SOP-8RoHSActive

CA3140 Series BiMOS High-Input-Impedance Operational Amplifiers

Manufacturer: MSKSEMI
Manufacturer part #: CA3140AMZ96-MS
Store part #: C22462551
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,808 in stock

#C22462551

Stock & price checked 38 h ago

Quantity	Unit price	Pack price
1+	₹61.00	₹61.00
10+	₹47.76	₹477.60
30+	₹42.12	₹1,263.60
100+	₹35.18	₹3,518.00
500+	₹31.92	₹15,960.00
1,000+	₹30.18	₹30,180.00

Quantity (min 1)

1 × ₹61.00

₹61.00

excl. GST

₹71.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CA3140AMZ96-MS

₹61.00 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 6V/us
Input Offset Current(Ios): 20pA
Operating Temperature: -25℃~+125℃
Ib - Input Bias Current: 1.5nA
Common Mode Rejection Ratio(CMRR): 76dB
Input Offset Voltage Drift(Vos TC): 24uV/℃
Quiescent Current: 6mA
Gain Bandwidth Product: 3.5MHz
Dual Supply: -15V~15V
Single Supply: 2.5V~18V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.266 g

Overview

The CA3140 series are BiMOS high-input-impedance op-amps that integrate PMOS transistors and bipolar transistors on a single die, combining the advantages of high-voltage PMOS and high-voltage bipolar transistors. The PMOS differential input pair provides extremely high input impedance, ultra-low input current, and high-speed characteristics. Due to the use of PMOS transistors, the CA3140 offers a wide common-mode input voltage range. Another key feature of the CA3140 is its suitability for single-supply applications. The pin configuration is compatible with the 741 series, allowing direct drop-in replacement of the 741 in most industrial applications. This series is widely used in consumer, commercial, and industrial applications, including accelerometer signal conditioning, integrators, medical monitors, visible-light photometers, single-supply amplifiers, sample-and-hold amplifiers, photocurrent instrumentation, active filters, interface circuits, handheld instruments, alarm systems, peak detectors, comparators, integrators, multi-frequency oscillators, function generators, and all other standard amplifier applications.
