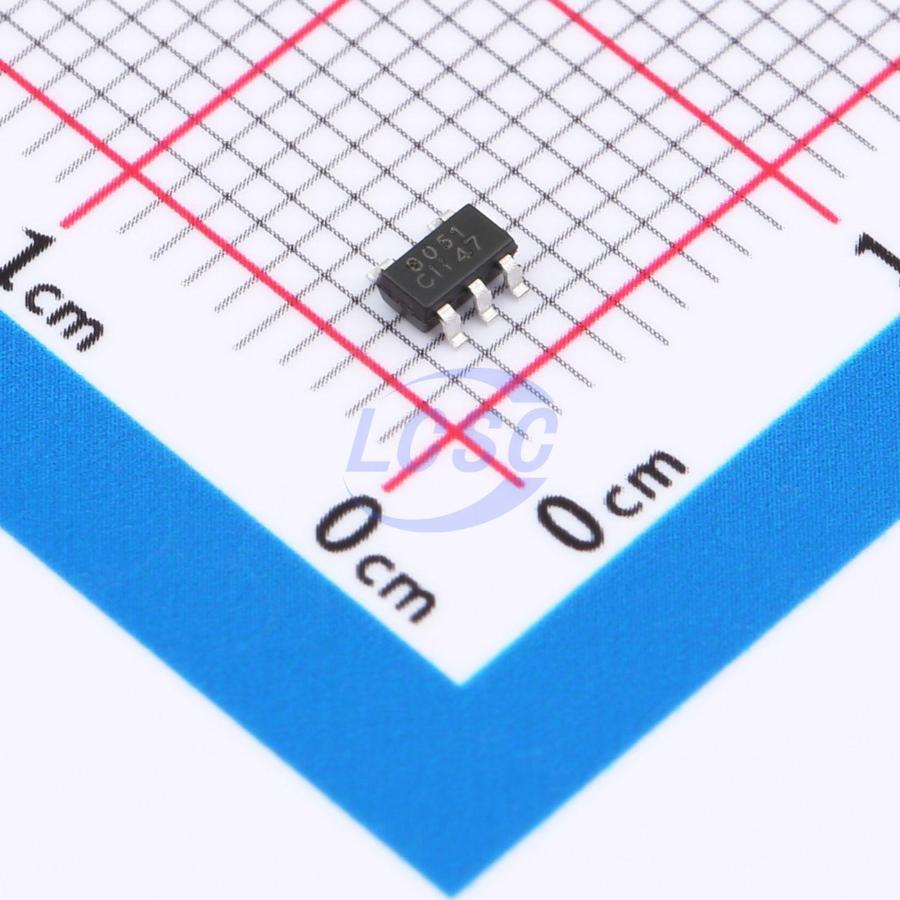

CAD8051
Standard (General Purpose) Amplifier Rail-to-Rail Output SOT-23-5
SOT-23-5ROHS CompliantActive
250MHZ CMOS Rail-to-Rail Output Opamps
- Manufacturer
- Tokmas
- Manufacturer part #
- CAD8051
- Store part #
- C46491526
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,885 in stock
#C46491526
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.53 | ₹137.65 |
| 50+ | ₹23.81 | ₹1,190.50 |
| 150+ | ₹22.21 | ₹3,331.50 |
| 500+ | ₹20.22 | ₹10,110.00 |
| 3,000+ | ₹19.33 | ₹57,990.00 |
| 6,000+ | ₹18.80 | ₹1,12,800.00 |
5 × ₹27.53
₹137.65
excl. GST
₹162.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAD8051
₹137.65 for 5 + GST
Specifications
- Output Current
- 80mA
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 93V/us
- Input Offset Current(Ios)
- 2pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 250MHz
- Quiescent Current
- 2.8mA
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 4.9nV/√Hz@1MHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
Applications
- Imaging
- Filters
- Mobile Phones
- Base Stations
- ADC Drivers
Key features
- Single-supply operating voltage range: +2.5V ~ +5.5V
- Rail-to-rail output
- 3dB bandwidth (G = +1): 250MHz (typical)
- Low input bias current: 1pA (typical)
- Quiescent current: 2.8mA/amplifier (typical)
- Operating temperature range: -40℃ ~ +125℃
