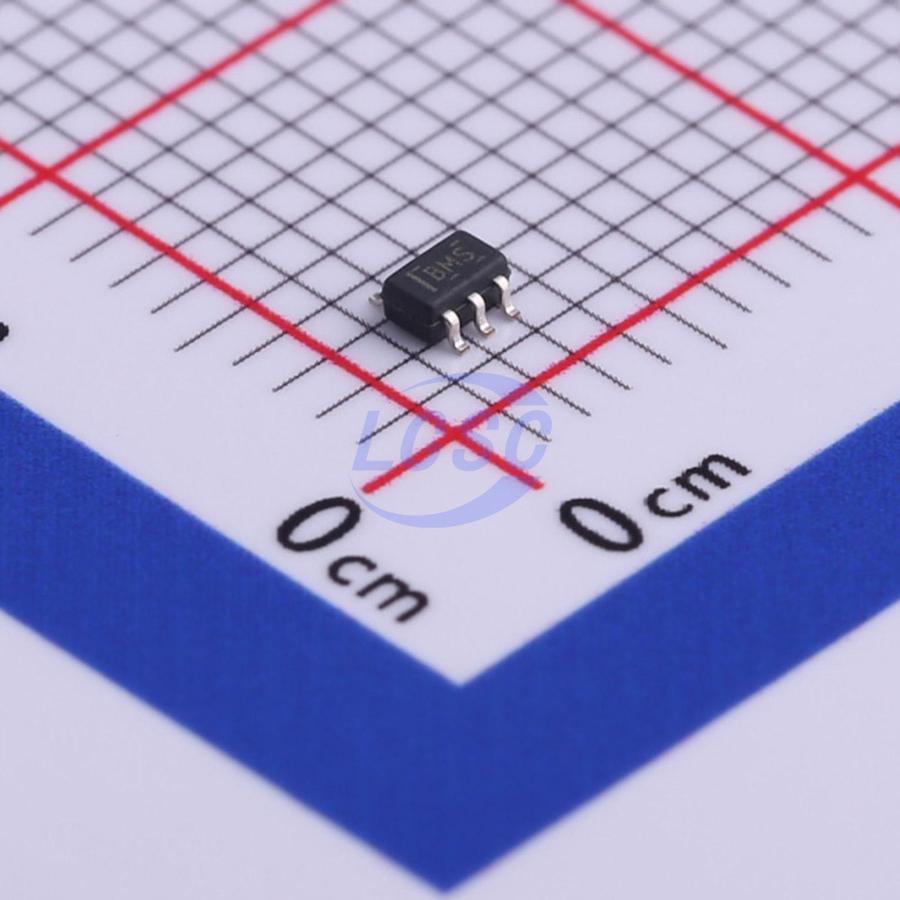

CAHCT1G125QDCKRQ1
3V~5.5V 1 1 7.5ns@5V,50pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-5ROHS3 CompliantActive
SINGLE BUS BUFFER GATE WITH 3-STATE OUTPUT
- Manufacturer
- TI
- Manufacturer part #
- CAHCT1G125QDCKRQ1
- Store part #
- C485524
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C485524
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.36 | ₹126.80 |
| 50+ | ₹19.91 | ₹995.50 |
| 150+ | ₹17.25 | ₹2,587.50 |
| 500+ | ₹14.87 | ₹7,435.00 |
| 3,000+ | ₹14.22 | ₹42,660.00 |
| 6,000+ | ₹13.83 | ₹82,980.00 |
5 × ₹25.36
₹126.80
excl. GST
₹149.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAHCT1G125QDCKRQ1
₹126.80 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Voltage - Supply
- 3V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 7.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
The SN74AHCT1G125 is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable (OE(overline)) input is high. When OE is low, true data is passed from the A input to the Y output. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Applications
- Automotive electronics
- Bus buffering
- Line driving
Key features
- Qualified for Automotive Applications
- ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model τ (C = 200 pF, R = 0)
- Operating Range of 3 V to 5.5 V
- Max tpd of 6 ns at 5 V
- Low Power Consumption, 10 - μA Max ICC
- ±8 - mA Output Drive at 5 V
- Inputs Are TTL-Voltage Compatible
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CAHCT1G125QDCKRG4Q#C2675574TI · SC-70-5 | TI | SC-70-5 | 87 | ₹110.40 · 87 in stock | View |
 | M74VHC1GT126DF2G#C233496onsemi · SOT-353 | onsemi | SOT-353 | 9,305 | ₹30.57 · 9,305 in stock | View |
 | NLVVHC1GT125DF1G#C893683onsemi · SOT-353 | onsemi | SOT-353 | 3 | ₹63.66 · 3 in stock | View |
 | M74VHC1GT126DF1G#C150237onsemi · SOT-353 | onsemi | SOT-353 | 5 | ₹32.11 · 5 in stock | View |
 | CAHCT1G126QDCKRQ1#C353964TI · SC-70-5 | TI | SC-70-5 | On request | ₹37.48 · 0 in stock | View |
