onsemi

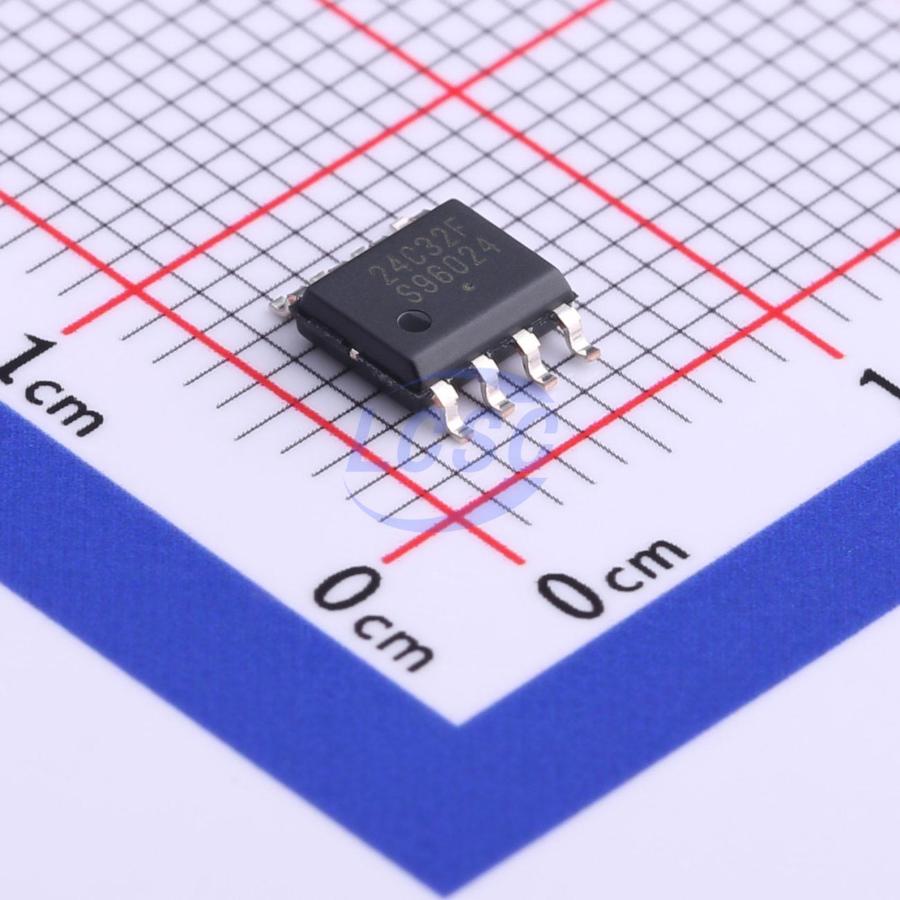

CAT24C32WI-GT3
32Kbit 1MHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS CompliantActive
32-Kb I2C CMOS Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,845 in stock
#C81193
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.76 | ₹228.80 |
| 50+ | ₹35.79 | ₹1,789.50 |
| 150+ | ₹31.51 | ₹4,726.50 |
| 500+ | ₹25.82 | ₹12,910.00 |
| 3,000+ | ₹23.46 | ₹70,380.00 |
| 6,000+ | ₹22.03 | ₹1,32,180.00 |
5 × ₹45.76
₹228.80
excl. GST
₹269.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT24C32WI-GT3
₹228.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 3.5us;0.9us;0.4us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
The CAT24C32 is a 32−Kb CMOS Serial EEPROM devices, internally organized as 4096 words of 8 bits each. It features a 32−byte page write buffer and supports the Standard (100 kHz), Fast (400 kHz) and Fast−Plus (1 MHz) I²C protocol. External address pins make it possible to address up to eight CAT24C32 devices on the same bus.
Key features
- Supports Standard, Fast and Fast−Plus I²C Protocol
- 1.7 V to 5.5 V Supply Voltage Range
- 32−Byte Page Write Buffer
- Hardware Write Protection for Entire Memory
- Schmitt Triggers and Noise Suppression Filters on I²C Bus Inputs (SCL and SDA)
- Low Power CMOS Technology
- 1,000,000 Program/Erase Cycles
- 100 Year Data Retention
- Industrial and Extended Temperature Range
- PDIP, SOIC, TSSOP, UDFN, US 8−lead, WLCSP 4−ball and 5−bal Packages
- This Device is Pb−Free, Halogen Free/BFR Free, and RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C32D-SSHM-T#C60583MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 49,665 | ₹44.92 · 49,665 in stock | View |
 | 24C32BN(XBLW)#C18723546XBLW · SOP-8 | XBLW | SOP-8 | 21,155 | ₹10.07 · 21,155 in stock | View |
 | 24C32(LX)#C22397203lingxingic · SOP-8 | lingxingic | SOP-8 | 1,395 | ₹12.41 · 1,395 in stock | View |
 | AT24C32M/TR#C2688466HGSEMI · SOP-8 | HGSEMI | SOP-8 | 12,150 | ₹17.68 · 12,150 in stock | View |
 | AT24LC32M/TR#C3007891HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,840 | ₹22.16 · 2,840 in stock | View |
