Corebai MicroelectronicsDatasheet (PDF)

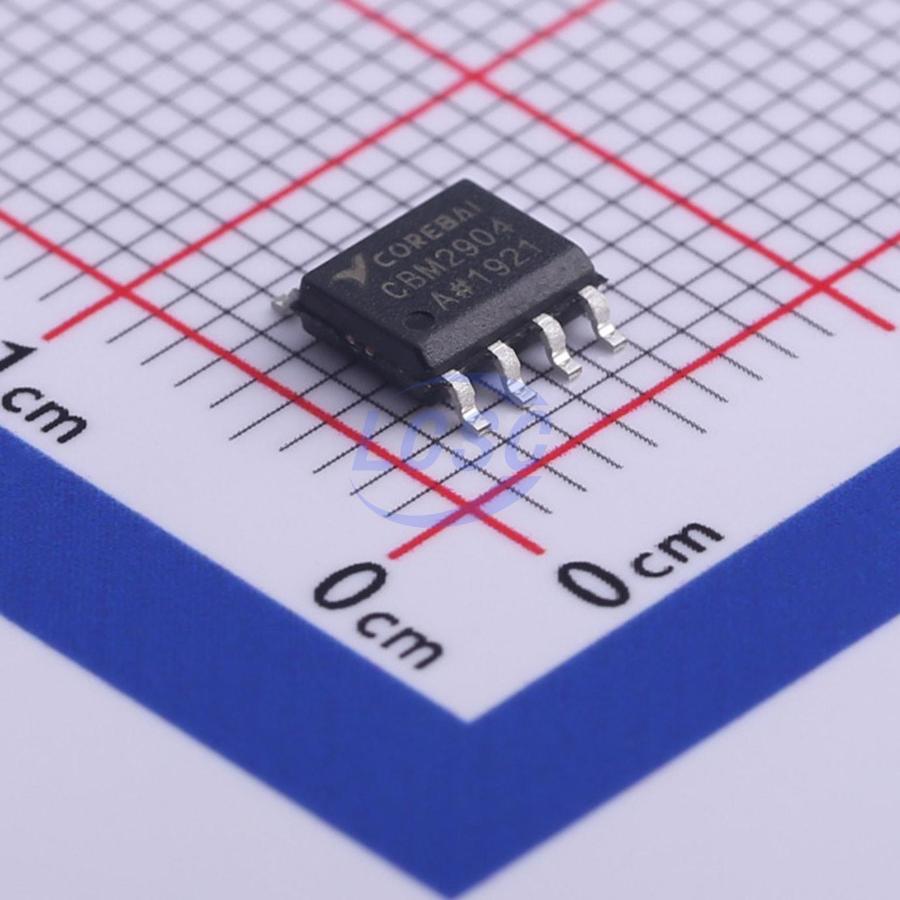

CBM2904AS8
10mA 2 9mV 500nA 65dB 3mA SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
High-gain operational amplifier
- Manufacturer
- Corebai Microelectronics
- Manufacturer part #
- CBM2904AS8
- Store part #
- C476365
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,870 in stock
#C476365
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.59 | ₹152.95 |
| 50+ | ₹24.62 | ₹1,231.00 |
| 150+ | ₹22.07 | ₹3,310.50 |
| 500+ | ₹17.68 | ₹8,840.00 |
| 2,500+ | ₹16.26 | ₹40,650.00 |
| 5,000+ | ₹15.40 | ₹77,000.00 |
5 × ₹30.59
₹152.95
excl. GST
₹180.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CBM2904AS8
₹152.95 for 5 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 9mV
- Input Offset Current(Ios)
- 150nA
- Operating Temperature
- -40℃~+105℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 3mA
- Features
- Built-in compensation;ESD protection
- Dual Supply
- 15V~16V;-16V~-15V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
The CBM2904 contains two independent high gain operational amplifiers with internal frequency compensation. The two op-amps operate over a wide voltage range from a single power supply. Also use a split power supply. The device has low power supply current drain, regardless of the power supply voltage. The low power drain also makes the CBM2904 a good choice for battery operation. When your project calls for a traditional op-amp function, now you can streamline your design with a simple single power supply. Use ordinary +5VDC common to practically any digital system or personal computer application, without requiring an extra 15V power supply just to have the interface electronics you need. The CBM2904 is a versatile, rugged workhorse with a thousand-and-one uses, from amplifying signals from a variety of transducers to dc gain blocks, or any op-amp function.
Key features
- Internally frequency compensated for unity gain
- Large DC voltage gain: 100dB
- Wide power supply range: 3V~32V (or 1.5V ~ 16V) Input common-mode voltage range includes ground
- Large output voltage swing: 0V DC to VCC - 1.5V DC
- Power drain suitable for battery operation
- Low input offset voltage and offset current Differential input voltage range equal to the power supply voltage
