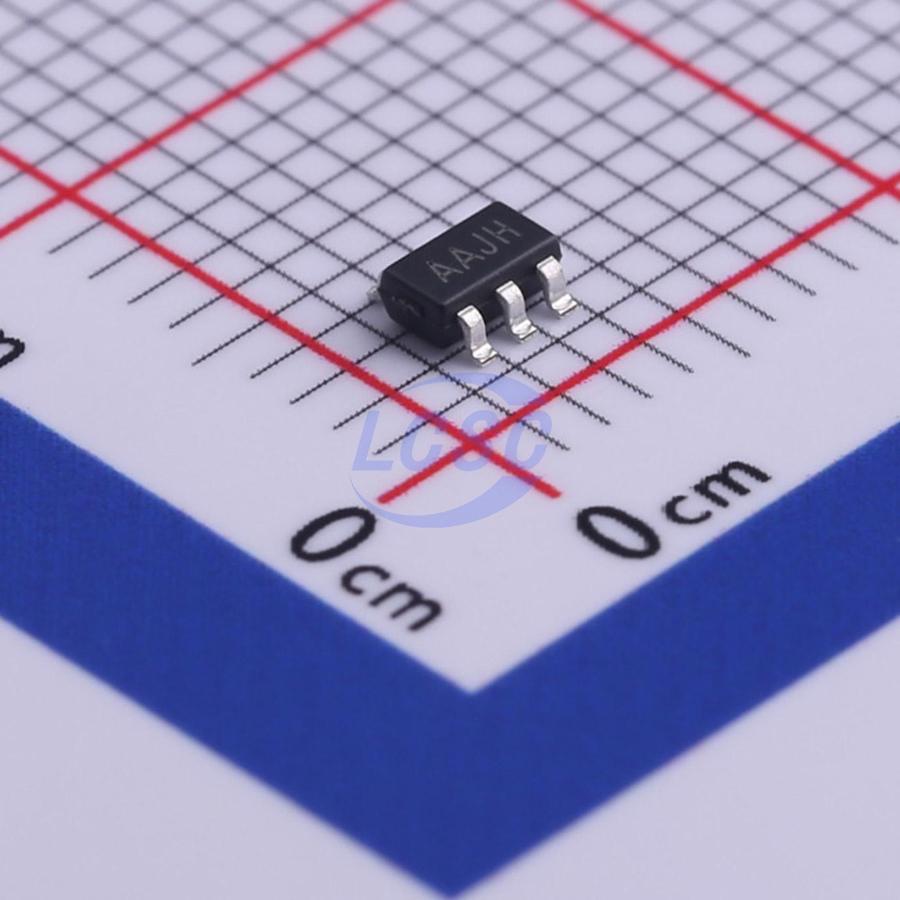

CBM6001AST5

84mA 1 3.5mV 800V/ms 70dB 1pA 1MHz 75uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: Corebai Microelectronics
Manufacturer part #: CBM6001AST5
Store part #: C476397
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,005 in stock

#C476397

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹30.73	₹153.65
50+	₹24.11	₹1,205.50
150+	₹21.26	₹3,189.00
500+	₹17.73	₹8,865.00
3,000+	₹16.14	₹48,420.00
6,000+	₹15.20	₹91,200.00

Quantity (min 5, multiples of 5)

5 × ₹30.73

₹153.65

excl. GST

₹181.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

CBM6001AST5

₹153.65 for 5 + GST

Specifications

Output Current: 84mA
Number of Channels: 1
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 800V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 75uA
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 27nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

ASIC Input or Output Amplifier Sensor Interface Medical Communication Smoke Detectors Audio Output Piezoelectric Transducer Amplifier Medical Instrumentation Portable Systems The CBM6001 family have a high gain - bandwidth product of 1MHz, a slew rate of 0.8V/μs, and a quiescent current of 75 μA/amplifier at 5V. The CBM6001 family is designed to provide optimal performance in low voltage and low noise systems. They provide rail - to - rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for CBM6001 family. They are specified over the extended industrial temperature range (-40°C to +125°C). The operating range is from 1.8V to 6V. The CBM6001 single is available in Green SC70 - 5 and SOT23 - 5 packages. The CBM6002 dual is available in Green SOP - 8 and MSOP - 8 packages. The CBM6004 Quad is available in Green SOP - 14 and TSSOP - 14 packages.
