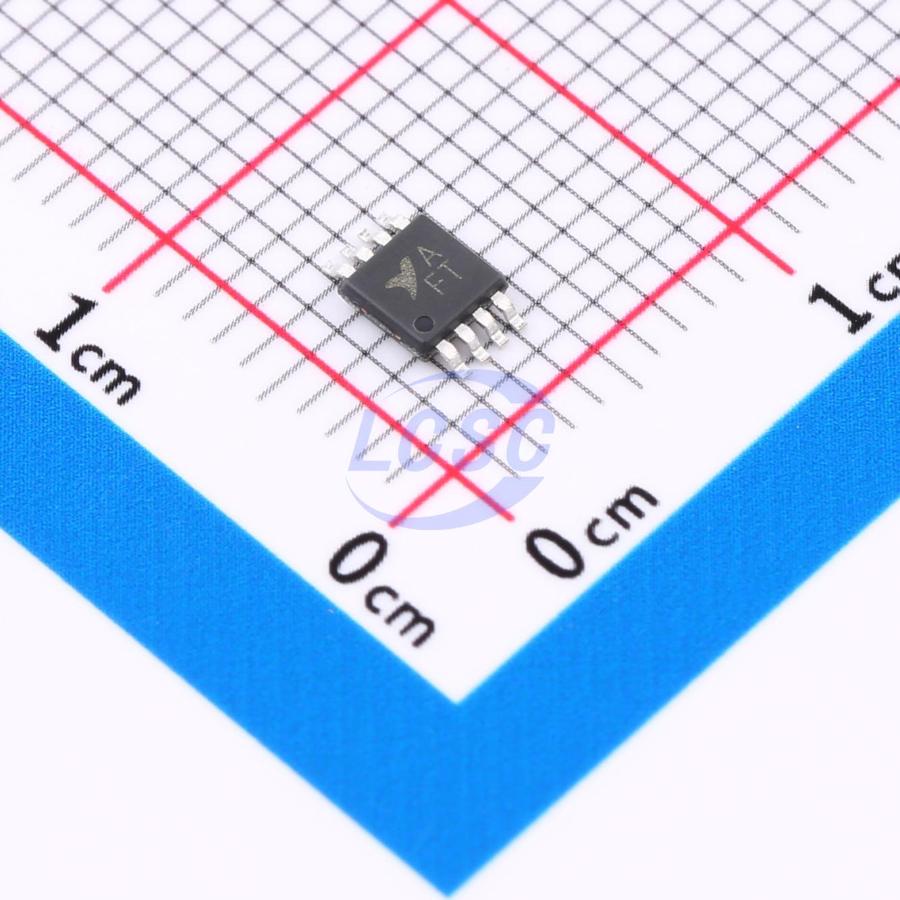

Corebai MicroelectronicsDatasheet (PDF)
CBM6042AMS8
84mA 2 2.5mV 4.5V/ms 1pA 84dB 15kHz 600nA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
Single-Supply Operation, Rail-to-Rail Input / Output Amplifier
- Manufacturer
- Corebai Microelectronics
- Manufacturer part #
- CBM6042AMS8
- Store part #
- C476393
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C476393
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.97 | ₹42.97 |
| 10+ | ₹37.57 | ₹375.70 |
| 30+ | ₹35.19 | ₹1,055.70 |
| 100+ | ₹32.39 | ₹3,239.00 |
| 500+ | ₹31.09 | ₹15,545.00 |
| 1,000+ | ₹30.23 | ₹30,230.00 |
1 × ₹42.97
₹42.97
excl. GST
₹50.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CBM6042AMS8
₹42.97 for 1 + GST
Specifications
- Output Current
- 84mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2.5mV
- Slew Rate
- 4.5V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 84dB
- Input Offset Voltage Drift(Vos TC)
- 25uV/℃
- Gain Bandwidth Product
- 15kHz
- Quiescent Current
- 600nA
- Features
- EMI filtering/RF suppression
- Dual Supply
- -2.75V~-700mV;700mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.276 g
Overview
The CBM6041 family has a high gain-bandwidth product of 15KHz, a slew rate of 4.5V/ms, and a quiescent current of 600nA/amplifier at 5V. The CBM6041 family is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 2.5mV for CBM6041 family. They are specified over the extended industrial temperature range ( -40°C to +125°C). The operating range is from 1.4V to 5.5V. The CBM6041 single is available in Green SC70-5 and SOT23-5 packages. The CBM6042 Dual is available in Green SOP-8, MSOP-8 and DFN-8 packages. The CBM6044 Quad is available in Green SOP-14 and TSSOP-14 packages.
Applications
- ASIC Input or Output Amplifier
- Sensor Interface
- Medical Communication
- Smoke Detectors
- Audio Output
- Piezoelectric Transducer Amplifier
- Medical Instrumentation
- Portable Systems
Key features
- Single-Supply Operation from +1.4V ~ +5.5V
- Rail-to-Rail Input / Output
- Gain-Bandwidth Product: 15KHz (Typ.)
- Low Input Bias Current: 1pA (Typ.)
- Low Offset Voltage: 2.5mV (Max.)
- Quiescent Current: 600nA per Amplifier (Typ.)
- Operating Temperature: -40°C ~ +125°C
- Embedded RF Anti-EMI Filter
- Small Package: CBM6041 Available in SOT23-5 and SC70-5 Packages
- CBM6042 Available in SOP-8, MSOP-8 and DFN-8 Packages
- CBM6044 Available in SOP-14 and TSSOP-14 Packages
