Corebai MicroelectronicsDatasheet (PDF)

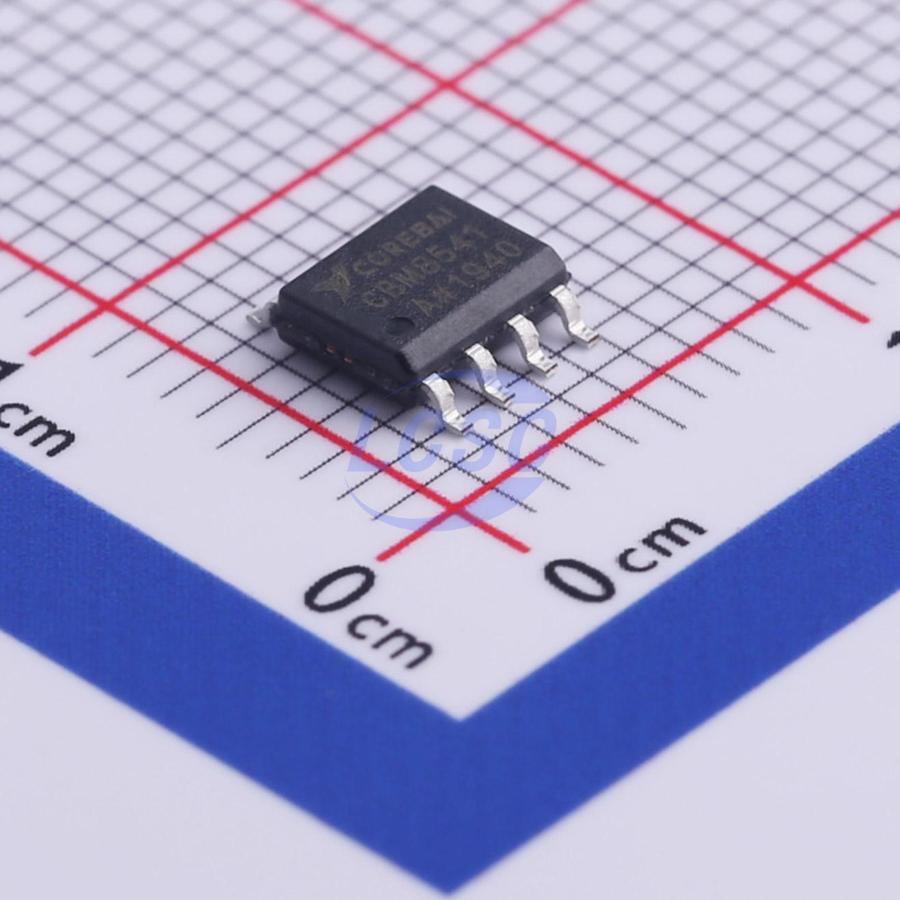

CBM8541AS8
55mA 1 3mV 500V/ms 10pA 80dB 58uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
High gain-bandwidth, rail-to-rail input/output operational amplifier
- Manufacturer
- Corebai Microelectronics
- Manufacturer part #
- CBM8541AS8
- Store part #
- C476340
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,243 in stock
#C476340
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.09 | ₹79.09 |
| 10+ | ₹70.19 | ₹701.90 |
| 30+ | ₹65.62 | ₹1,968.60 |
| 100+ | ₹61.06 | ₹6,106.00 |
| 500+ | ₹58.45 | ₹29,225.00 |
| 1,000+ | ₹57.14 | ₹57,140.00 |
1 × ₹79.09
₹79.09
excl. GST
₹93.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CBM8541AS8
₹79.09 for 1 + GST
Specifications
- Output Current
- 55mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 58uA
- Gain Bandwidth Product
- 1.1MHz
- Features
- Enable/shutdown function;Built-in compensation
- Input Voltage Noise Density
- 20nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The CBM8541, CBM8542, CBM8544, families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The CBM8541, CBM8542, CBM8544, families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT
- DRIVING A/D CONVERTERS
Key features
- HIGH GAIN BANDWIDTH: 1.1MHz
- RAIL-TO-RAIL INPUT AND OUTPUT
- 0.6mV Typical VOS
- INPUT VOLTAGE RANGE: -0.1V to +5.6V with VS = 5.5V
- SUPPLY RANGE: +2.5V to +5.5V
- SPECIFIED UP TO +125°C
- MicroSIZE PACKAGES: SOT23-5, SOT23-6
