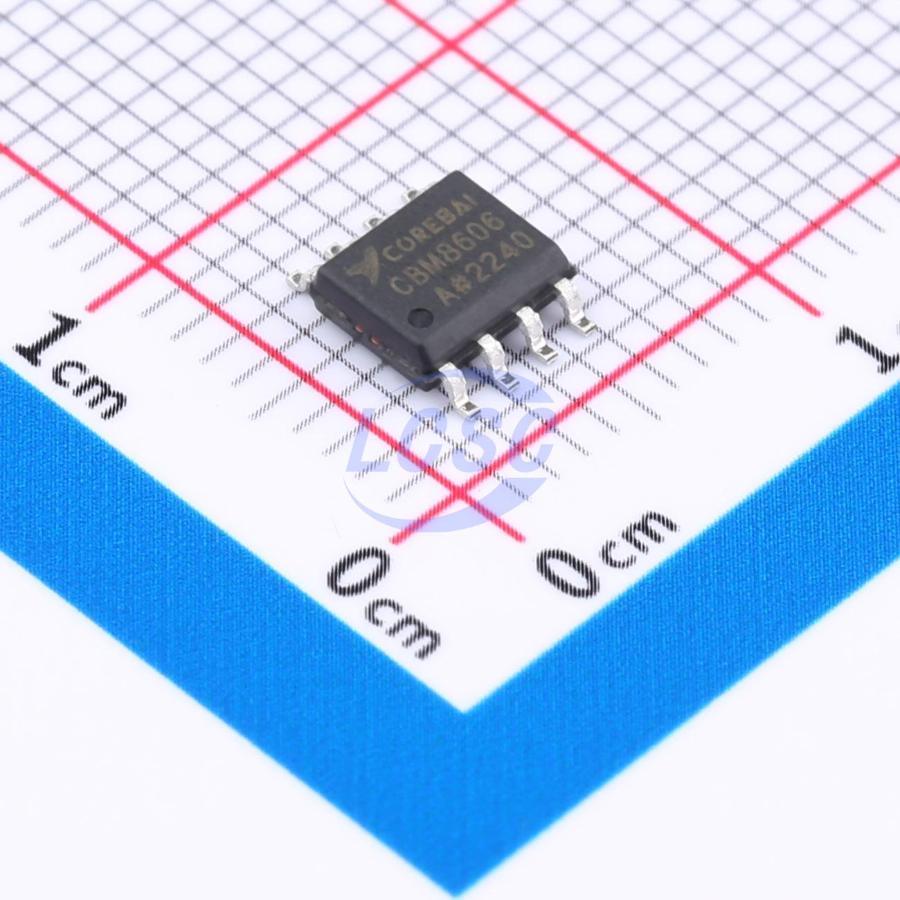

CBM8606AS8

80mA 2 80uV 5V/us 0.2pA 100dB 10MHz 800uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Operational amplifiers with low offset voltage, low input bias current, low noise, and wide bandwidth

Manufacturer: Corebai Microelectronics
Manufacturer part #: CBM8606AS8
Store part #: C5259112
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C5259112

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹158.42	₹158.42
10+	₹131.03	₹1,310.30
30+	₹116.04	₹3,481.20
100+	₹99.09	₹9,909.00
500+	₹91.27	₹45,635.00
1,000+	₹88.01	₹88,010.00

Quantity (min 1)

1 × ₹158.42

₹158.42

excl. GST

₹186.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CBM8606AS8

₹158.42 for 1 + GST

Specifications

Output Current: 80mA
Number of Channels: 2
Vos - Input Offset Voltage: 80uV
Slew Rate: 5V/us
Input Offset Current(Ios): 0.1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 0.2pA
Common Mode Rejection Ratio(CMRR): 100dB
Input Offset Voltage Drift(Vos TC): 1uV/℃
Gain Bandwidth Product: 10MHz
Quiescent Current: 800uA
Features: Built-in compensation
Input Voltage Noise Density: 8nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.34 g

Overview

The CBM8605/CBM8606 feature ultra-low input offset characteristics (VOS, IOS), low noise, and extremely low input bias current, making them well-suited for precision circuit applications. This op-amp series offers a gain-bandwidth product of up to 10MHz, ensuring adequate bandwidth and low distortion for audio and other AC applications. In addition, rail-to-rail input/output support significantly broadens the application range of this series. The CBM8605 and CBM8606 operate over a temperature range of -40°C to +125°C. The CBM8605 single-channel amplifier is available in 5-pin SOT-23 and wafer-level (WLCSP-5) packages. The CBM8606 dual-channel amplifier is available in 8-pin MSOP, narrow-body SOP SMT, and wafer-level (WLCSP-8) packages. SOT-23 and MSOP package products are available in tape-and-reel form.
