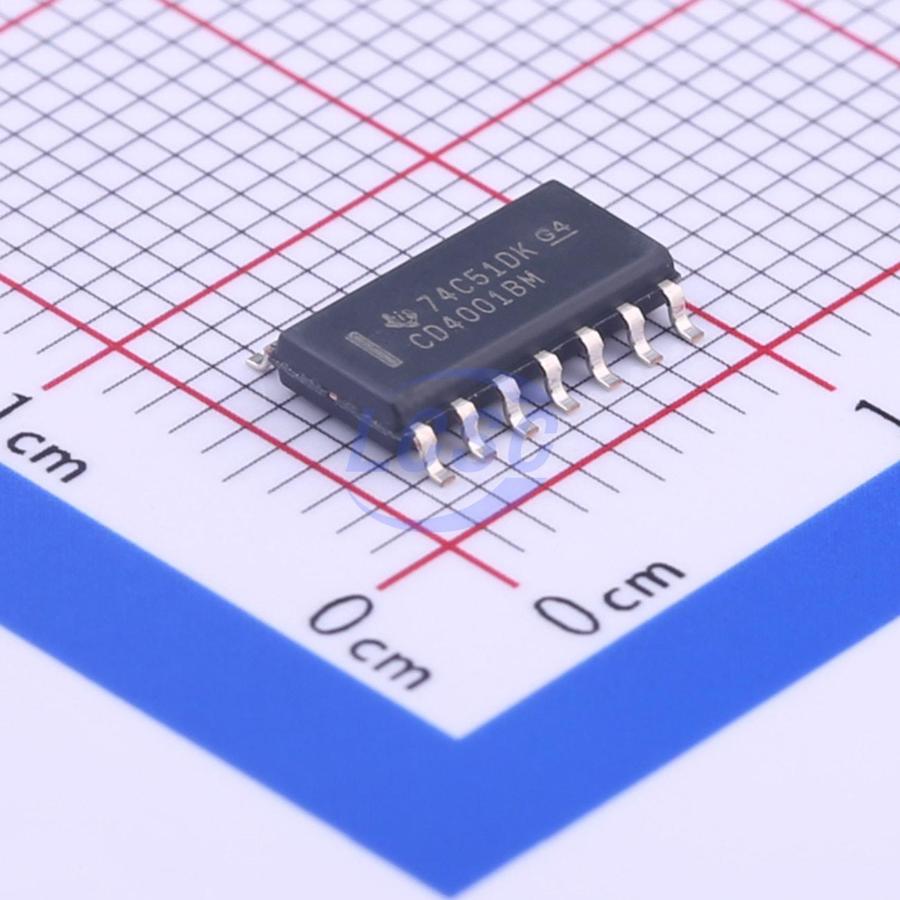

CD4001BM96
1uA 3V~18V 60ns@10V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
CMOS NOR Gates
- Manufacturer
- TI
- Manufacturer part #
- CD4001BM96
- Store part #
- C49967
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,979 in stock
#C49967
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.40 | ₹80.40 |
| 10+ | ₹63.45 | ₹634.50 |
| 30+ | ₹56.07 | ₹1,682.10 |
| 100+ | ₹46.94 | ₹4,694.00 |
| 500+ | ₹42.81 | ₹21,405.00 |
| 1,000+ | ₹37.16 | ₹37,160.00 |
1 × ₹80.40
₹80.40
excl. GST
₹94.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4001BM96
₹80.40 for 1 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 60ns@10V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
CD4001B, CD4002B, and CD4025B NOR gates provide the system designer with direct implementation of the NOR function and supplement the existing family of CMOS gates. All inputs and outputs are buffered.
Key features
- Propagation delay time = 60 ns (typ.) at CL = 50 pF, VDD = 10 V
- Buffered inputs and outputs
- Standardized symmetrical output characteristics
- 100% tested for maximum quiescent current at 20 V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and 25℃
- Noise margin (over full package temperature range): 1 V at VDD = 5 V; 2 V at VDD = 10 V; 2.5 V at VDD = 15 V
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of "B" Series CMOS Devices"
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4001BM#C283956TI · SOIC-14 | TI | SOIC-14 | 38 | ₹125.12 · 38 in stock | View |
| CD4001UBM96#C2868341TI · SOIC-14 | TI | SOIC-14 | 903 | ₹67.82 · 903 in stock | View | |
 | TC4001BF(EL,N,F)#C6716800TOSHIBA · SOP-14 | TOSHIBA | SOP-14 | 120 | ₹62.67 · 120 in stock | View |
| CD4001DM/TR#C42414911HGSEMI · SOP-14 | HGSEMI | SOP-14 | 200 | ₹12.01 · 200 in stock | View | |
 | CD4001BDTR(XBLW)#C42451386XBLW · SOP-14 | XBLW | SOP-14 | 2,365 | ₹14.17 · 2,365 in stock | View |
