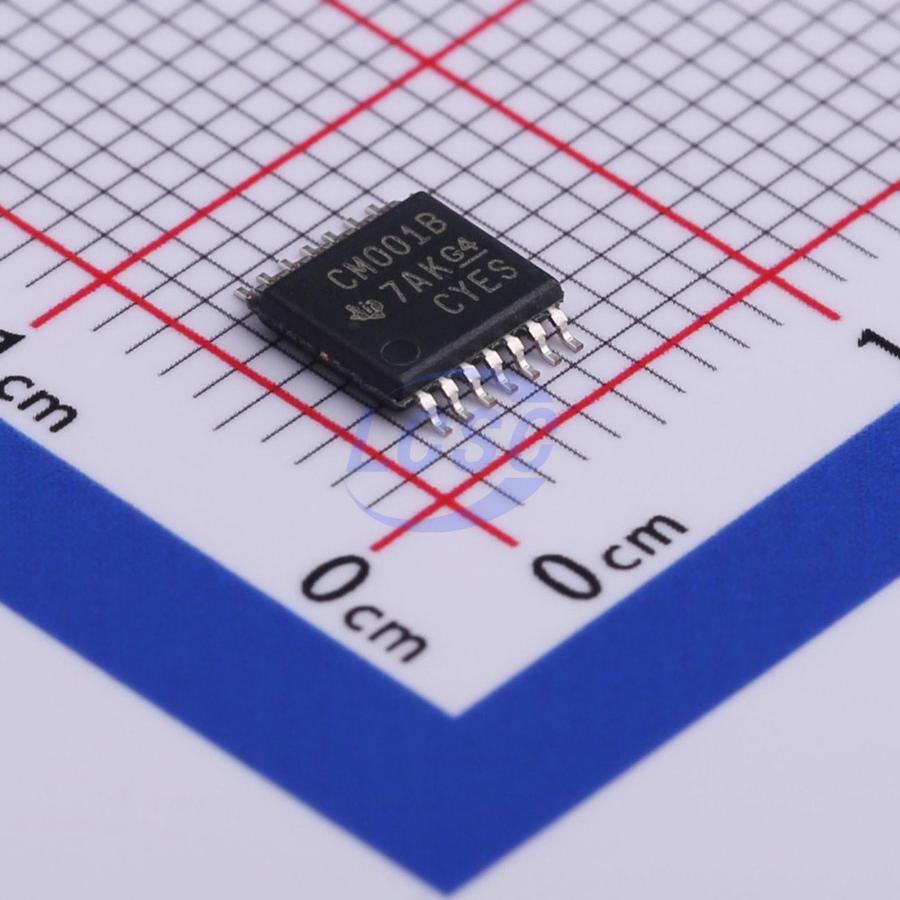

CD4001BPWR
1uA 3V~18V 90ns@15V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
CMOS NOR Gates
- Manufacturer
- TI
- Manufacturer part #
- CD4001BPWR
- Store part #
- C496116
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,803 in stock
#C496116
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.64 | ₹62.64 |
| 10+ | ₹49.16 | ₹491.60 |
| 30+ | ₹42.64 | ₹1,279.20 |
| 100+ | ₹36.77 | ₹3,677.00 |
| 500+ | ₹35.24 | ₹17,620.00 |
| 1,000+ | ₹34.16 | ₹34,160.00 |
1 × ₹62.64
₹62.64
excl. GST
₹73.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CD4001BPWR
₹62.64 for 1 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 90ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.091 g
Overview
CD4001B, CD4002B, and CD4025B NOR gates provide the system designer with direct implementation of the NOR function and supplement the existing family of CMOS gates. All inputs and outputs are buffered. The CD4001B, CD4002B, and CD4025B types are supplied in 14 - lead hermetic dual - in - line ceramic packages (F3A suffix), 14 - lead dual - in - line plastic packages (E suffix), 14 - lead small - outline packages (M, MT, M96, and NSR suffixes), and 14 - lead thin shrink small - outline packages (PW and PWR suffixes).
Applications
- NOR logic function implementation in digital logic circuit systems
Key features
- Propagation delay time = 60 ns (typ.) at cL = 50 pF, VDD = 90 V
- Buffered inputs and outputs
- Standardized symmetrical output characteristics, 700% tested for maximum quiescent current at 20 V
- 5 - V, 10 - V, and 15 - V parametric ratings
- Maximum input current of 1 μA at 18 V over full package - temperature range; 100 nA at VDD and 25℃
- Noise margin (over full package temperature range):
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
