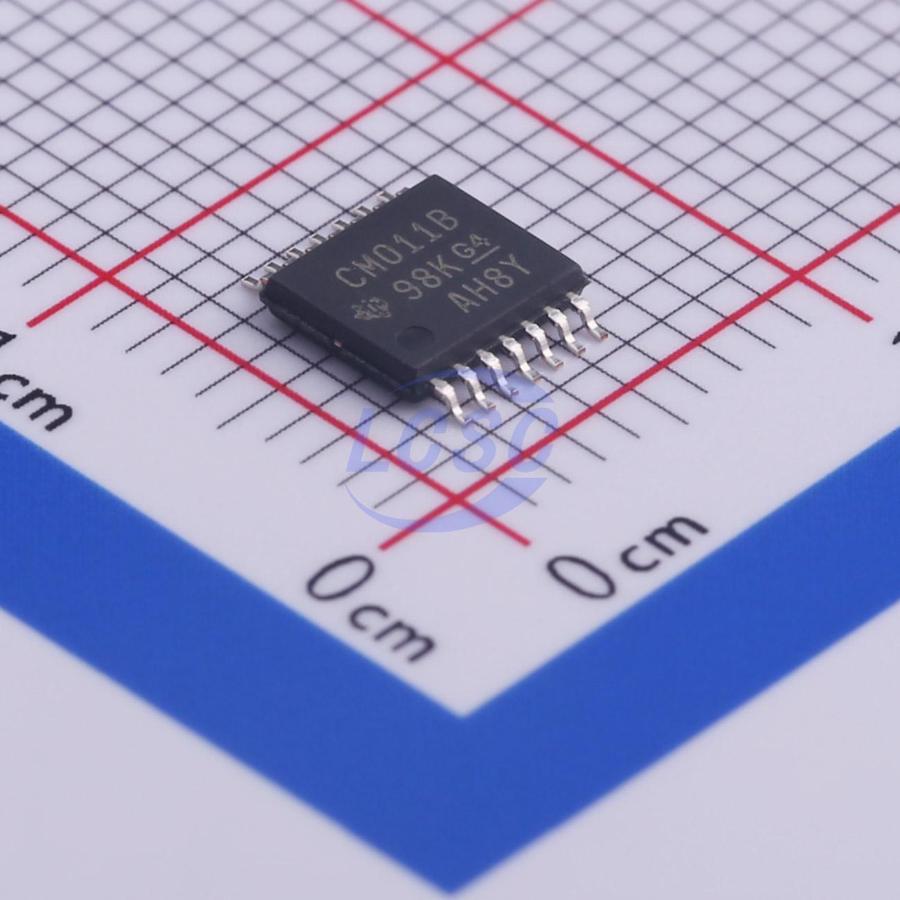

CD4011BPWR
NAND Gate IC 4 Channel TSSOP-14
TSSOP-14ROHS3 CompliantActive
CMOS NAND GATES High-Voltage Types
- Manufacturer
- TI
- Manufacturer part #
- CD4011BPWR
- Store part #
- C471054
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,695 in stock
#C471054
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.87 | ₹239.35 |
| 50+ | ₹38.54 | ₹1,927.00 |
| 150+ | ₹34.53 | ₹5,179.50 |
| 500+ | ₹29.56 | ₹14,780.00 |
| 2,000+ | ₹25.23 | ₹50,460.00 |
| 4,000+ | ₹23.89 | ₹95,560.00 |
5 × ₹47.87
₹239.35
excl. GST
₹282.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CD4011BPWR
₹239.35 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 90ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
Key features
- Propagation delay time = ±30 ns (typical) at CL = 50 pF, VDD = 10 V
- Buffered inputs and outputs
- Standardized symmetrical output characteristics
- Maximum input current ±1 μA at 18 V over full package temperature range; 100 nA at 18 V and 25℃
- 100% tested for quiescent current at 20 V
- 5-V, 10-V, and 15-V parametric ratings
- Noise margin (over full package temperature range):
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT4011ARZ#C3019557HTCSEMI · SOP-14 | HTCSEMI | SOP-14 | 120 | ₹15.11 · 120 in stock | View |
| CD4011TA14.TR#C51939976Wuxi I-core Elec · TSSOP-14 | Wuxi I-core Elec | TSSOP-14 | 200 | ₹20.88 · 200 in stock | View | |
 | CD4011BMT/TR#C5310796HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 1,340 | ₹20.49 · 1,340 in stock | View |
 | CD4011UBPWR#C2877151TI · TSSOP-14 | TI | TSSOP-14 | 223 | ₹58.61 · 223 in stock | View |
 | CD4093BPWR#C88243TI · TSSOP-14 | TI | TSSOP-14 | 1,870 | ₹43.50 · 1,870 in stock | View |
