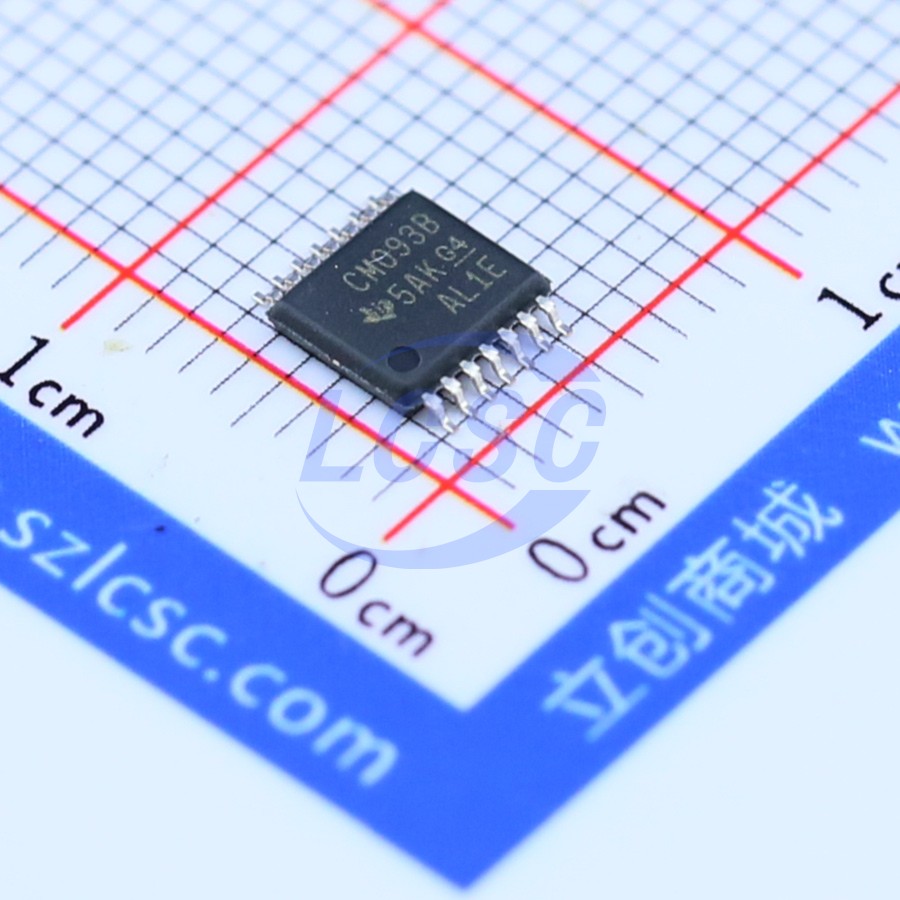

CD4093BPWR

CD4093B consists of four Schmitttrigger circuits. Each circuit functions as a two-input NAND gate, with Schmitt-trigger action on both inputs. The gate switches at different points for positive and negative going signals. The difference between the positive voltage (V_P) and the negative voltage (V_N) is defined as hysteresis voltage (V_H). The CD4093B types are supplied in 14 - lead hermetic dual - in - line ceramic packages (F3A suffix), 14 - lead dual - in - line plastic packages (E suffix), 14 - lead small - outline packages (M, MT, M96, and NSR suffixes), and 14 - lead thin shrink small - outline packages (PW and PWR suffixes).

Applications

• Wave and pulse shapers
• High - noise - environment systems
• Monostable multivibrators
• Astable multivibrators
• NAND logic

Key features

• Schmitt-trigger action on each input with no external components
• Hysteresis voltage typically 0.9V at V_DD = 5V and 2.3V at V_DD = 10V
• Noise immunity greater than 50%
• No limit on input rise and fall times
• Standardized, symmetrical output characteristics
• 100% tested for quiescent current at 20V
• Maximum input current of 1μA at 18 V over full package - temperature range, 100 nA at 18 V and 25℃
• 5 - V, 10 - V, and 15 - V parametric ratings
• Meets all requirements of JEDEC Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
