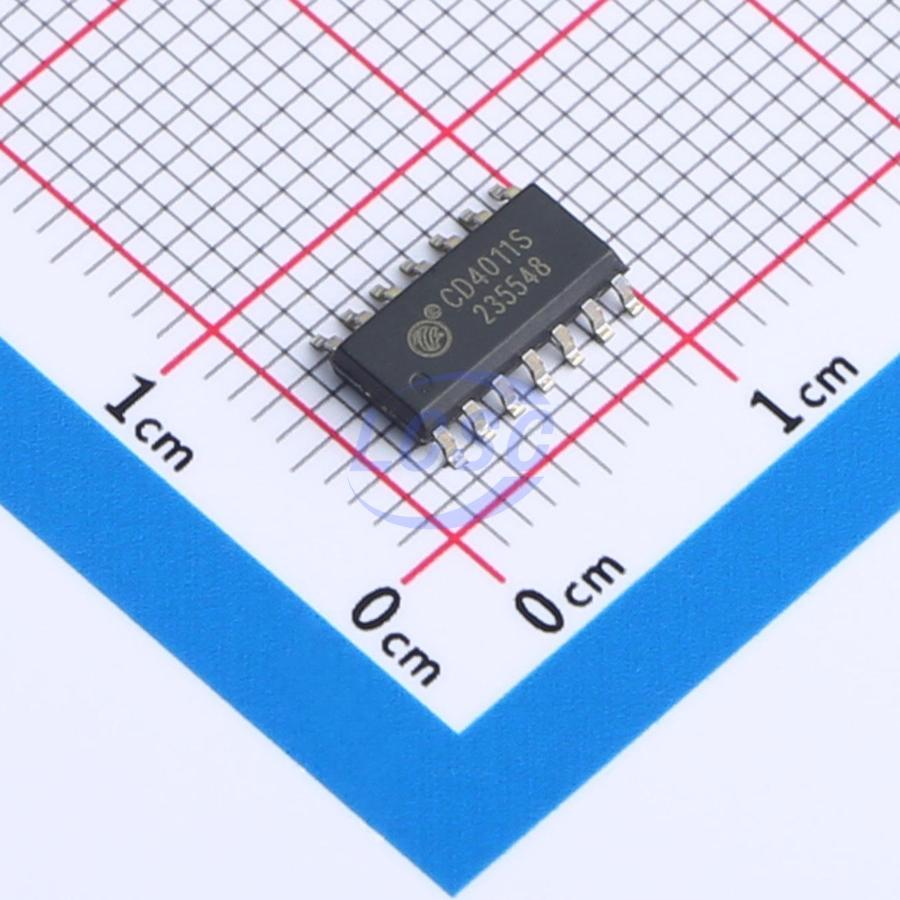

CD4011S
NAND Gate IC 4 Channel SOP-14
SOP-14RoHSActive
2-input NAND gate integrated circuit
- Manufacturer
- GR
- Manufacturer part #
- CD4011S
- Store part #
- C19818878
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,515 in stock
#C19818878
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.72 | ₹83.60 |
| 50+ | ₹13.07 | ₹653.50 |
| 150+ | ₹11.25 | ₹1,687.50 |
| 500+ | ₹9.87 | ₹4,935.00 |
| 2,500+ | ₹8.78 | ₹21,950.00 |
| 4,000+ | ₹8.23 | ₹32,920.00 |
5 × ₹16.72
₹83.60
excl. GST
₹98.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4011S
₹83.60 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+60℃
- Input Logic Level - High
- 3.5V~11V
- Logic Family
- CD4 Series
- Input Logic Level - Low
- 1.5V~4V
- Output Logic Level - High
- 4.95V~14.95V
- Quiescent Current(Iq)
- 6uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Propagation Delay
- 62ns@5V,51pF;55ns@5V,51pF;35ns@10V,51pF;30ns@15V,51pF;28ns@15V,51pF
- Output Logic Level - Low
- 50mV
- Current - Output Low(IOL)
- 19mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
CD4011 is a low-power, wide supply voltage range 2-input NAND gate IC designed using CMOS technology. It integrates four independent 2-input NAND gate circuits, featuring high noise immunity and drive capability.
Applications
- Digital logic drive, wireless doorbell, industrial control applications
Key features
- Low input current: I_IN ≤ 1uA, @V_IN = VDD = 15V, Ta = 25°C
- Low quiescent current: I_DD ≤ 6uA, @VDD = 15V, Ta = 25°C
- Wide operating voltage range: 3.0V to 15.0V
- Package: DIP14, SOP14
