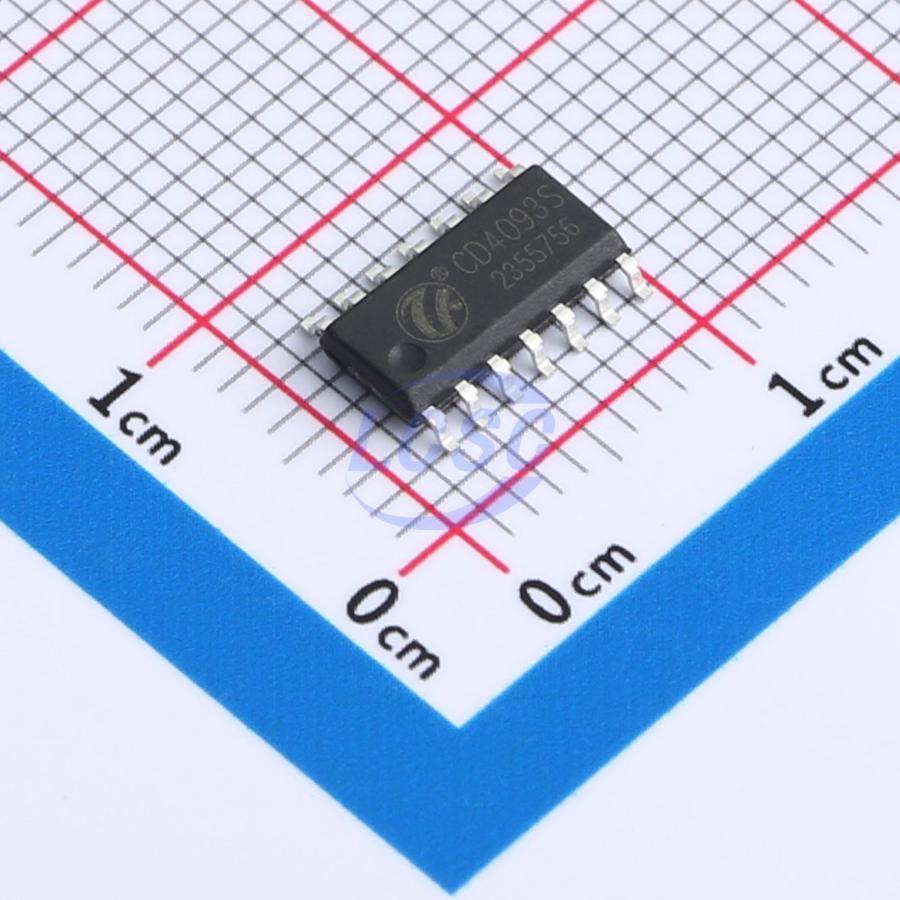

CD4093
Schmitt trigger 3V~15V 60ns@15V,51pF 1.2uA SOP-14 Gates and Inverters
SOP-14RoHSActive
2-input NAND gate
- Manufacturer
- GR
- Manufacturer part #
- CD4093
- Store part #
- C22357620
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
665 in stock
#C22357620
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.60 | ₹78.00 |
| 50+ | ₹12.48 | ₹624.00 |
| 150+ | ₹10.91 | ₹1,636.50 |
| 500+ | ₹9.75 | ₹4,875.00 |
| 2,500+ | ₹8.81 | ₹22,025.00 |
| 4,000+ | ₹8.33 | ₹33,320.00 |
5 × ₹15.60
₹78.00
excl. GST
₹92.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4093
₹78.00 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- CD4
- Voltage - Supply
- 3V~15V
- Propagation Delay
- 60ns@15V,51pF
- Output Logic Level - Low
- 50mV
- Operating Temperature
- 0℃~+60℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1.2uA
- Current - Output High(IOH)
- 13.7mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 32.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
Applications
- Electronic switching for industrial control applications
- Signal oscillator/generator
- Other application areas
