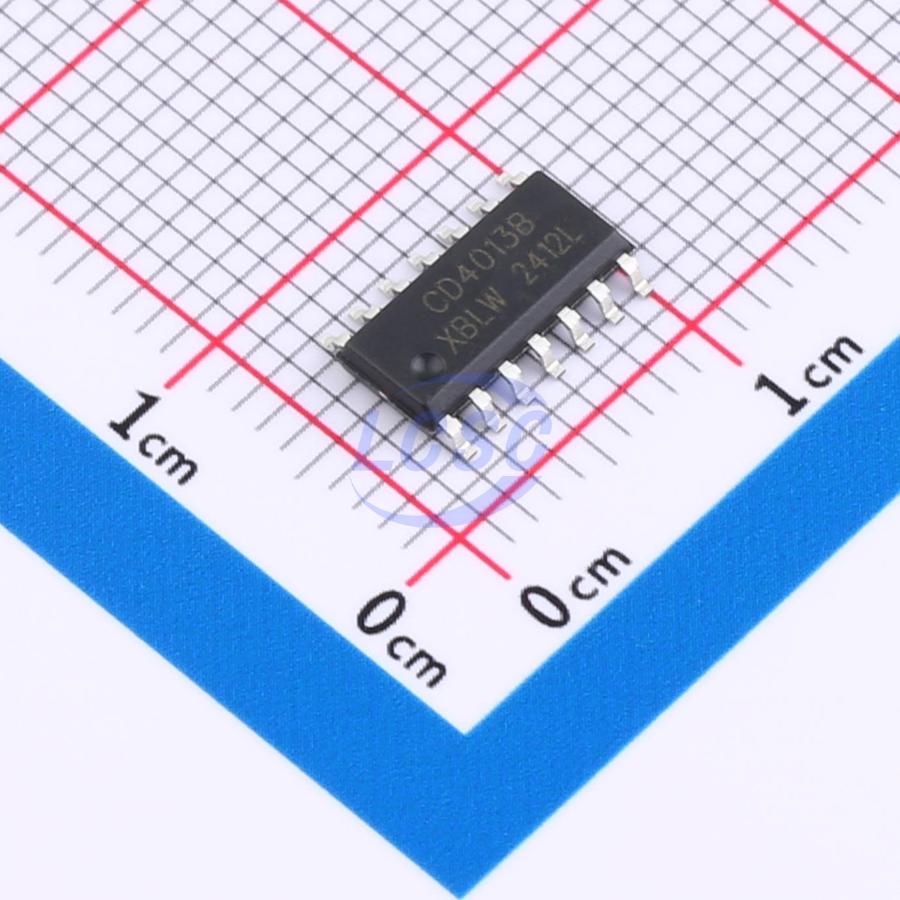

CD4013BDTR(XBLW)
1 D-Type 4uA 2 SOP-14 Specialty Logic RoHS
Dual D-Type Flip Flop
- Manufacturer
- XBLW
- Manufacturer part #
- CD4013BDTR(XBLW)
- Store part #
- C48971049
- Package / case
- SOP-14
- Category
- Specialty Logic
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,235 in stock
#C48971049
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.77 | ₹68.85 |
| 50+ | ₹10.89 | ₹544.50 |
| 150+ | ₹9.45 | ₹1,417.50 |
| 500+ | ₹8.36 | ₹4,180.00 |
| 2,500+ | ₹7.50 | ₹18,750.00 |
| 5,000+ | ₹7.06 | ₹35,300.00 |
5 × ₹13.77
₹68.85
excl. GST
₹81.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4013BDTR(XBLW)
₹68.85 for 5 + GST
Specifications
- Logic Family
- CD4 Series
- Number of Bits per Element
- 1
- Propagation Delay Time
- 45ns@15V,50pF
- Current - Output Low(IOL)
- 6.8mA
- Current - Output High(IOH)
- 6.8mA
- Operating Temperature
- -40℃~+85℃
- Function
- Set and Reset
- Type
- D-Type
- Voltage - Supply
- 3V~15V
- Quiescent Current(Iq)
- 4uA
- Synchronous/Asynchronous
- Asynchronous
- Setup Time
- 15ns
- Output Type
- Complementary
- Number of Gates
- 2
- Hold Time
- 5ns
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.262 g
Overview
The CD4013 is a dual D-type flip-flop that features independent set-direct input (SD), clear-direct input (CD), clock input (CP) and outputs (Q, Q). Data is accepted when CP is LOW and is transferred to the output on the positive -going edge of the clock. The active HIGH asynchronous CD and SD inputs are independent and override the D or CP inputs. The outputs are buffered for best system performance. The clock input's Schmitt-trigger action makes the circuit highly tolerant of slower clock rise and fall times. It operates over a recommended Vpp power supply range of 3 V to 15 V referenced to Vss (usually ground). Unused inputs must be connected to Vp, Vss, or another input.
Key features
- Wide supply voltage range from 3V to 15V
- Fully static operation
- 5V, 10Vi and 15V parametric ratings
- Standardized symmetrical output characteristics
- Tolerant of slow clock rise and fall times
- Specified from -40 °C to +85 °C
- Packaging information: DIP14/SOP14/TSSOP14
